Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | 5454 Aluminum Alloy | Axle: | BPW Brand, ADR |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 42M3, 42 Cubic Meters, 42000 LITERS |
| Suspension: | BPW Brand Air Suspension. | Transport: | Diesel / Kerosene / Gasoline / Aviation Fuel Oil |
| Tank Capacity: | 42M3 42CBM, 42 Cubic Meters, 42000Liters | Type: | Oil Tank Semi-trailer |
| Landing Gear: | JOST(C300), 28 Tons | Keywords: | Fuel Tank Semi Trailer,oil Tank Trailer |
| Product Name: | 3 Axle 42m3 Oil Tank Semi Truck Trailer For Sale | Compartment: | 1-7 Or Customized |
| High Light: | 5454 Aluminum Alloy Oil Tanker Trailer,SASO ADR Oil Tanker Trailer,42000L Fuel Tank Trailer |
||

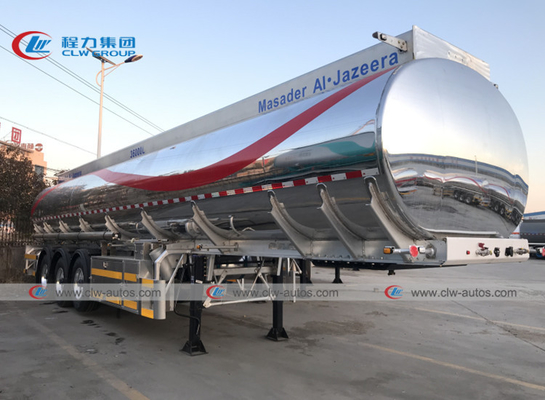

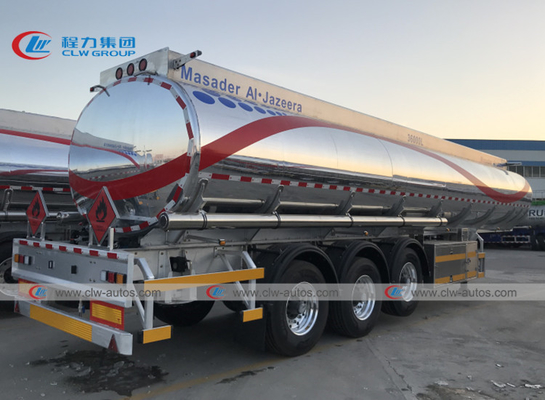

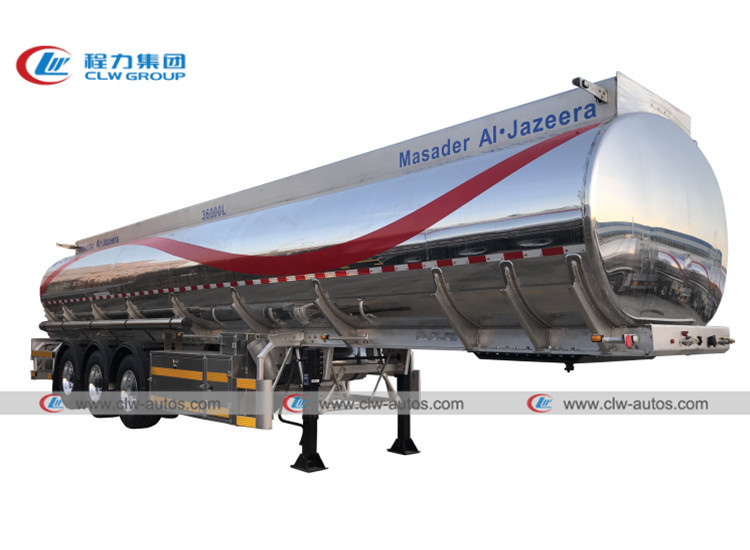

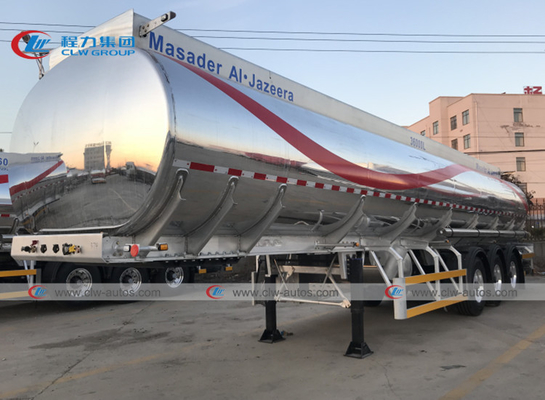

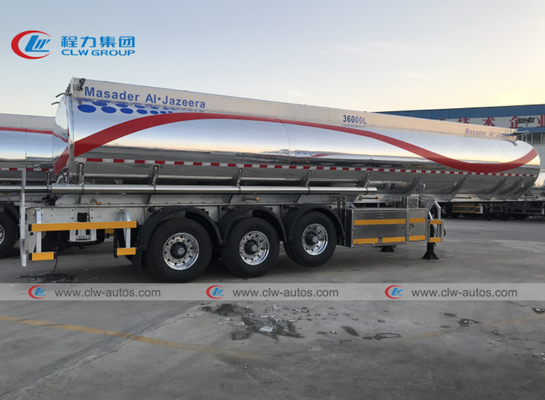

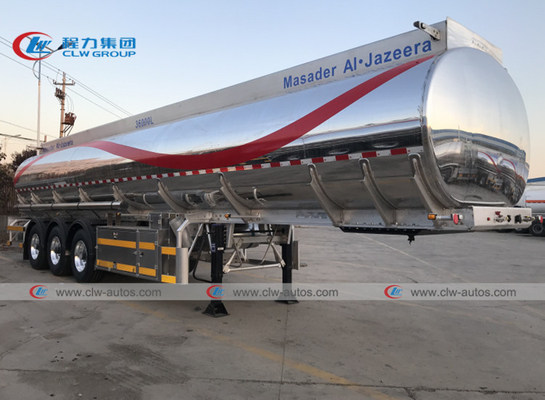

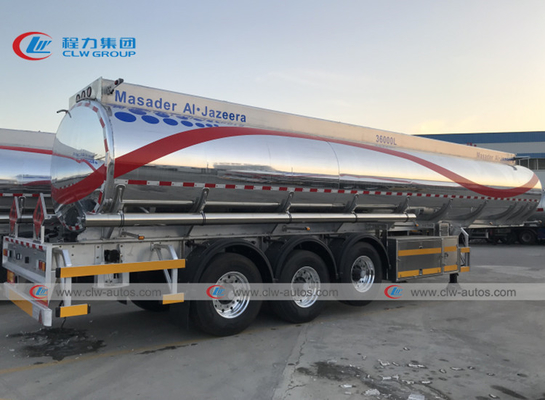

SASO ADR 3 Axles 5454 Aluminum Alloy Oil Tanker Trailer Air Suspension 42000liter Fuel Tank Trailer
Gods Description:
Aluminum ALLOY 5454 - 42000 Liters Fuel Tank Semi Trailer
This Trailer use aluminum alloy 5454 material , with mirror surface , 42000 Liters fuel storage tank ,
with A-D-R certificated parts , All design and production are in line with A-D-R standard inspection.
Parameters for SASO ADR Aluminum alloy oil tanker trailer air suspension 42000liter fuel tank trailer
3 Axles customize:
| Model :CLW9408GYY | |
| Design standard | According to ADR standard |
| Name | 42000Liters aluminum alloy fuel tank semi trailer 3 axles |
| Loading medium | Diesel / Kerosene / Gasoline / Aviation Fuel |
| Loading system | Top loading / bottom loading |
| Overall dimensions(mm) | 12210x2490x3310 |
| GVW(kg) | 40000 |
| Curb weight(kg) | 5980 ± 3% |
| Rated loading(kg) | 31000 |
| Tank | |
| Actual loading capacity | 42000liters(Volume filled with water) |
| Tank section | Square circle ( goose neck) |
| Tank material /thickness | Aluminum alloy 5454 confirming ADR,5.28mm |
| End /thickness | Aluminum alloy 5454 confirming ADR,6mm |
| Spurnwater /thickness | Aluminum alloy 5454 confirming ADR,6mm |
| Pipeline and accessories | |
| Manhole and quantity | EN NORMS 2PCS |
| Breather valve | Aluminum alloy,2sets |
| Discharging port | Bottom unloading |
| Oil and gas recovery | With Oil and gas recovery system |
| Anti-overflow | With Anti-overflow system |
| Unloading system | Through from 4” API coupling single line free discharge collector pipe install to single point outlet speedly discharge. |
| Accessories | |
| Tank roof guardrail | Segmented lifting guardrail, roof anti-skid net |
| Hose storage box | Stainless steel hose case, 1pcs of each on left and right |
| Unloading hose | L=6000, 3-inch steel wire discharge pipe |
| Tank climbing ladder | Tank interior climbing ladder, External climbing ladder |
| Tool box | aluminum alloy |
| Spare wheel carrier | Tire carrier manual type |
| mudguard | Factory standard Aluminum alloy integral |
| side guard | Factory standard Aluminum alloy |
| Rear bumper | Factory standard Aluminum alloy |
| fire control unit | 8kgs fire extinguisher,6pcs |
| Antistatic device | Conductive electrostatic trawl 1pcs, conductive electrostatic connection disk 1pcs |
| Others | Dip stick for leveling, water tank 50L |
| Chassis | |
| Axles | BPW 9Tons axles, first axle lift |
| Axles number | 3pcs |
| Suspension | BPW air bag suspension |
| Tire | 385/65R22.5 (Brand : Michelin),7pcs |
| Steel ring | 22.5x11.75 steel ring, 7pcs |
| Lifting legs | JOST Linkage leg |
| Kingpin | JOST |
| Circuitry | |
| Lamps | 24Vsystem,7 core socket,LED lamp |
| Circuitry | Explosion-proof junction box |
| Rear bumpers are fitted with turn lights, brake lights, reversing lights, driving lights and fog lights, respectively | |
| Wire | All wires are sealed with bellows |
| Brake system | |
| Relay valve | WABCO |
| ABS | WABCO |
| Others | Factory standard |
| Anti corrosive protection | |
| Tank inner surface | Clean |
| painting | customized |
| Label | |
| Nameplate | customized |
| Logo | customized |
| Tank label | Orange reflector belt, tank sides and tail |
| Red and white reflective label | 3M Reflective paste |
| Company label | CLW |
| Files, tools with fuel tanker | |
| Tools | 1 set |
3 Axles customize:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation
when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving
at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,
skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by
ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods
before shipment. And we had joined the trade credit insurance system. If the product received has quality problems,
Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience,
our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
