Product Details:
Payment & Shipping Terms:
|
| Brand: | FAW,ISUZU,Dongfeng,FOTON, HOWO, JAC, JMC, SHACMAN | Material: | High Intense Carbon Steel |
|---|---|---|---|
| Thickness: | Side 3 Mm And Bottom 4 Mm | Wheel Base: | 3815mm |
| Horsepower: | 116HP, Yuchai | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
Product Description

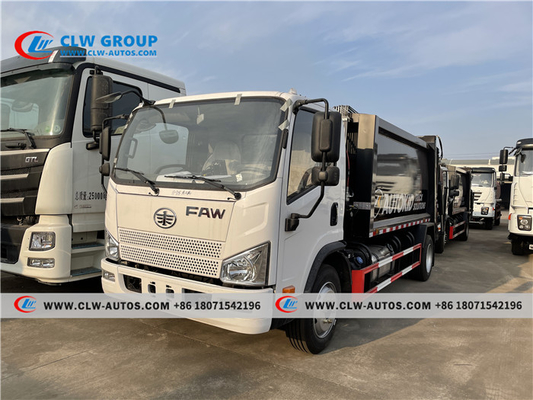

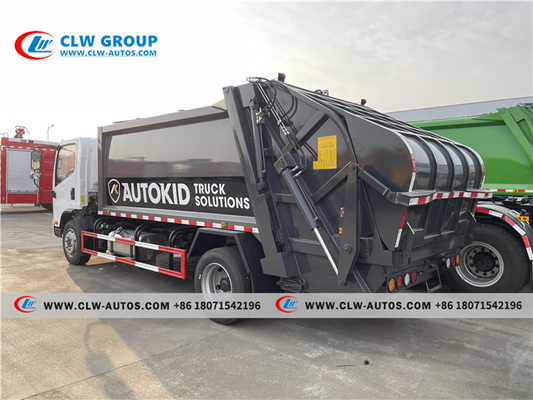

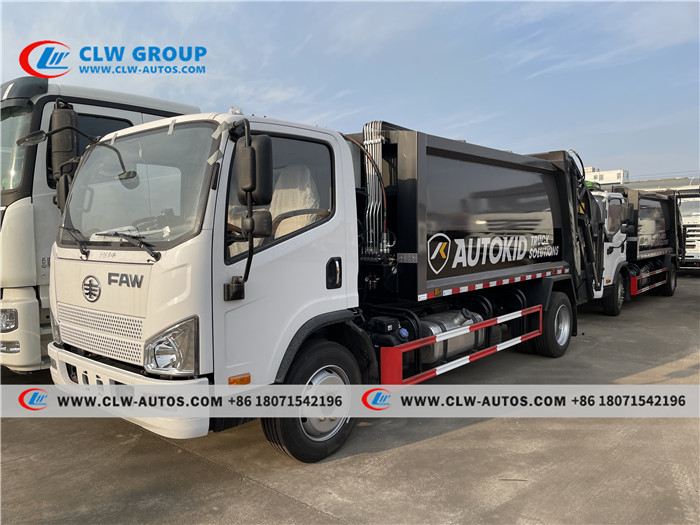

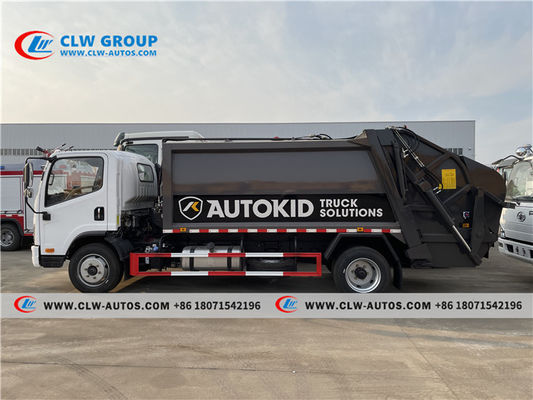

Garbage compressed truck also called garbage compactor truck,
| 6cbm Garbage Compactor Truck Waste Collection Truck | |||
| Overall Dimension | 8500×2500×3000 mm | Gross Vehicle Weight | 16000 kg |
| Curb Weight | 6095 kg | Loading Weight | 6700 kg |
| Wheel Base | 3815 mm | Front / Rear Axle | 2500/4800 kg |
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||
| Engine | Yuchai brand | ||
| Engine horsepower | 120HP, EURO IV | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
| Tire | 6.50-16 6 pieces with one spare) | ||
| Garbage Bin | Capacity | 7cbm or 8CBM | |
| Material | 4mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Garbage Compact Ratio | 1/3 - 1/4 | ||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
| Dependable Security | |||
| 5. Electrical Control Panel for compacting system. | |||
| 6. Cycling time<14~18s | |||
| Remarks | 1. Color is optional | ||
| 2. Customized LOGO painting as per customer request | |||
Compactor Carbage Truck Production Process
1.English User Manual
2.English Operation Video to teach new users step by step
3.Online video training whenever needed
4.Spare parts at factory price whenever needed
5.One year warranty for engine, gear box and axle
