Product Details:
Payment & Shipping Terms:
|
| Brand: | FOTON, Forland, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Material: | Carbon Steel |
|---|---|---|---|
| Thickness: | Side 4 Mm And Bottom 4 Mm | Wheel Base: | 3800mm |
| Horsepower: | 130HP | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
Shacman X9 8000liters 8-10cbm compactor garbage truck trash collection truck waste removal truck for sanitation services
Product Descriptions:
Compression garbage truck is used for the collection, transportation and unloading of bagged, barreled and bulk household garbage in cities and town. After the filling hopper is filled with garbage, the garbage is compacted and put into the dustbin through the hydraulic systems. Sewage water flows into the drain tank. When unloading, the unloading device automatically pushes the garbage out of the dustbin.
The compression garbage compactor truck we made is an intelligent compactor for large clean-up work. It is easy to operate and garbage compression rate is very effective. It is very suitable for municipal sanitation for industrial waste and household waste collection and transferation.
Key Features:
---- Shacman chassis, perfect performance.
---- Weichai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 22 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specification
| SHACMAN 8CBM garbage compactor truck | ||
| Descriptions | Specifications and types | |
| General | Truck Brand | CLW |
| Chassis Brand | SHACMAN X9 | |
| Approx. Dimension | 7055*2240*2800 mm | |
| GVW./Kerb Wt. | 8280 /6500 (Kg) | |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type |
4x2,lefthand drive/ Righthand drive is optional |
| Fuel Type | Diesel | |
| Engine Make & Model | WeiChai Engine | |
| Power | 96KW/130 HP | |
| Displacement | 3660 ml | |
| Emission Standard | Euro III or V | |
| Wheelbase/No.of axle | 3800 mm / 2 | |
| Tyre Specfication | 7.50R16 LT | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Automative metallic paint | |
| Upper body | Capacity | 8CBM/5-6tons |
| Material | Q235carbon steel | |
| Thickness | 5mm | |
| Uploading cycling time | <60s | |
| Loading cycling time | ≤30s | |
| Hopper Lifting capacity | ≥800KG | |

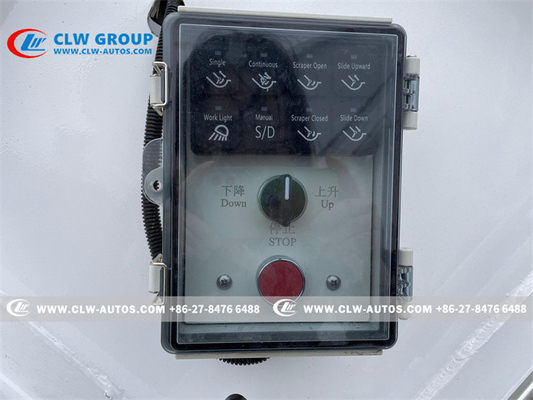

| Operation control system | Electrically hydraulic control | |
| Equipment |
Equipped with dustbin, hydraulic system and operating system | |
| Equipped with two advanced double acting hydrocylinders | ||

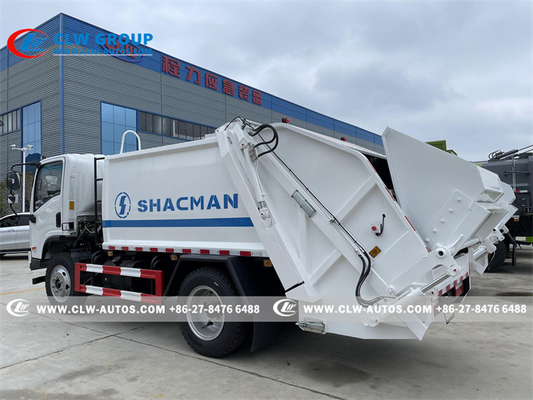

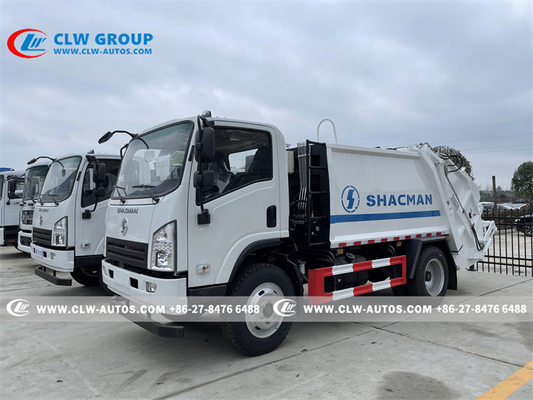

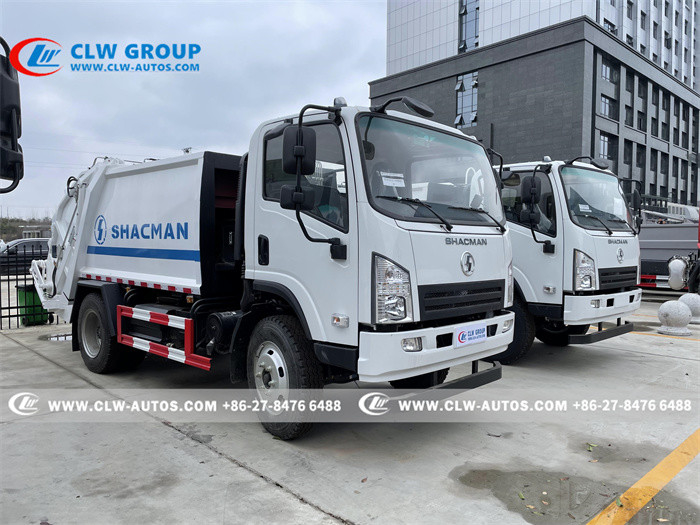

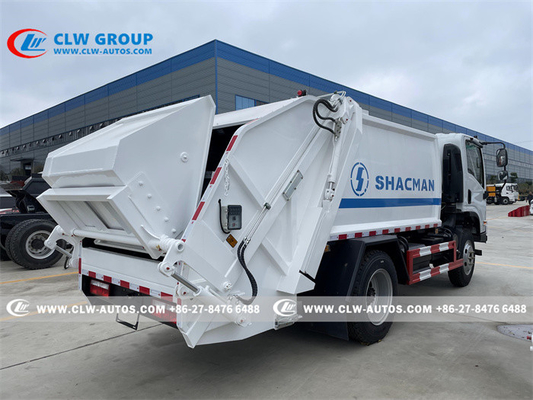

Reference photos
Compactor Carbage Truck Production Process
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
