Product Details:
Payment & Shipping Terms:
|
| Brand: | SINOTRUK HOWO | Engine: | WD615.47+PTO |
|---|---|---|---|
| Gearbox: | 10 Forward & 2 Reverse | Mixer Capacity: | 12CBM, 12000Liter, 14CBM, 14000 Liters |
| Hydraulic Motor: | EATON, PMP, | Hydraulic Pump: | EATON, PMP, Bonfiglioli, |
| Reductor: | ZF, PMP,Bonfiglioli,Sauer | ||
| High Light: | 12000L Cement Mixer Truck,SINOTRUK HOWO 6x4 Cement Mixer Truck,12000L Ready Mix Concrete Mixer Trucks |
||
Description:
Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.
Features of Howo concrete mixer truck
1. Howo 6x4 12 m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.
Specifications
| Cab | Driving type | 6x4 LHD RHD |
| Model | HOWO | |
| Bunk | HW76, 1 sleep, with AC | |
| carriage size(mm) | 9400*2500*3800 | |
| Wheel base(mm) | 3825+1350 | |
| GVW(kg) | 31000 | |
| Engine | Brand | Sinotruk howo |
| Model | WD615.47 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| displacement | 9.726L | |
| Bore*Stroke | 126*130mm | |
| Hose Power (HP) | 371 | |
| Emission standard | Euro 2 | |
| Max speed | 102km/h | |
| Tire | 12.00R20, 295/80R22.5, 12R22.5, 315/80R22.5 optional | |
| Transmission | HW19710 transmission, 10 forward and 2 reverse | |
| Front axle load capacity(kg) | 1*9000 | |
| Rear axle load capacity(kg) | 2*16000 | |
| Oil tank | 400L | |
| Mixer Volume | 12000Liters/12CBM | |
|
Thickness |
End plate | 6mm high tensile strength steel |
| Mixer body | 5mm high tensile strength steel | |
| Hydraulics | Motor,pump | Italian or American brand |
| Gearbox | Italian brand | |
| Brake system | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2x12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Options | Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data | |

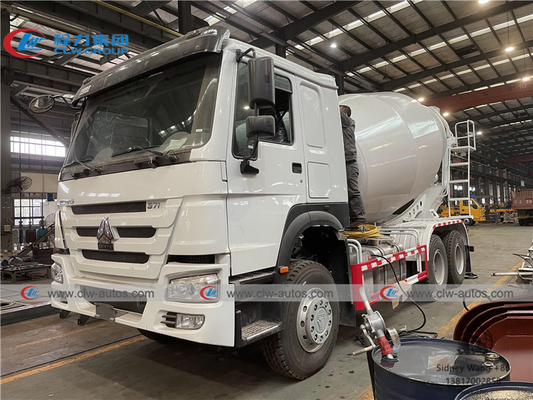

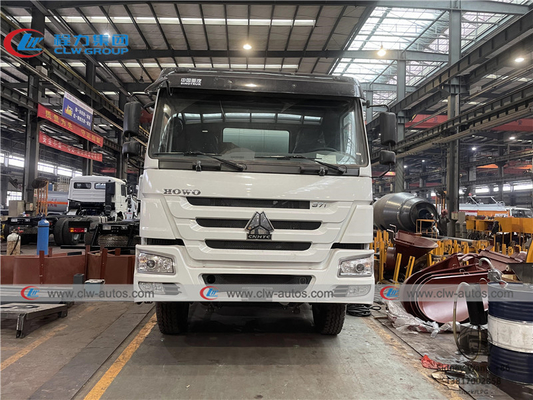

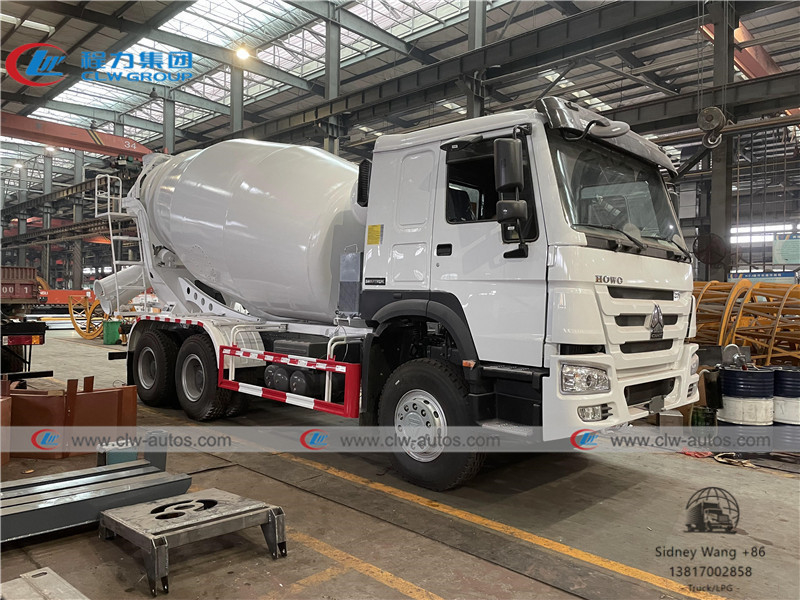

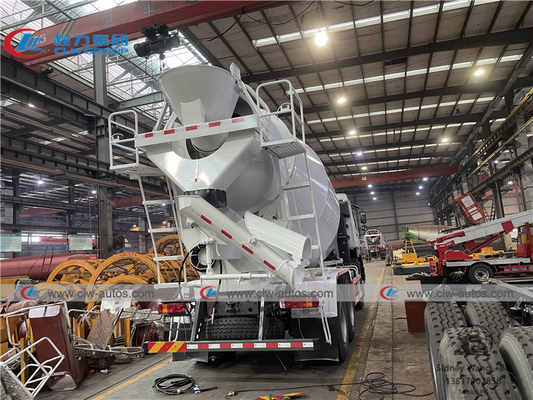

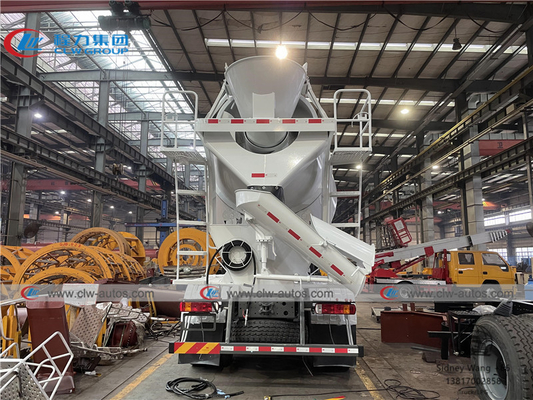

Product Photos
Truck Diagram

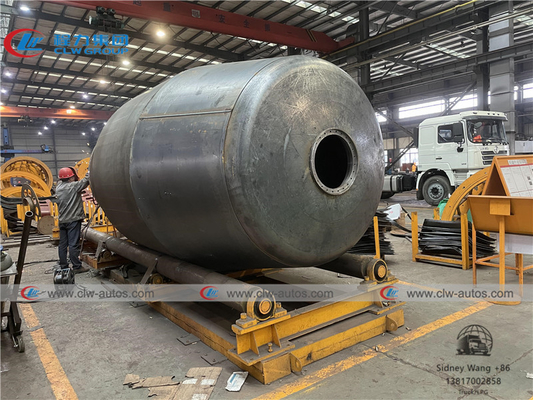

Parts photos
Production workshop
Factory Overview
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Overseas Exhibition and Local Support
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
