Product Details:
Payment & Shipping Terms:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage Compactor, Waste Removal |
|---|---|---|---|
| Material: | Carbon Steel Q235B | Thickness: | Side 4 Mm And Bottom 4 Mm |
| Tank Volume: | 8cbm/8000Liters/8tons | Wheel Base: | 3380mm |
| Horsepower: | 156HP | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
| Control: | Both Manual And Electric Control | Color: | Customized |
Garbage Compactor Truck Trash Collection Truck
Product Descriptions
Widely used
Support customized
Heavy load
Simple operation
Plate thickening
Fully function
Product Specifications
| Truck Chassis Specification | |||
| Chassis model | CLW5 | ||
| Cab | Dongfeng single row cab | ||
| Driving Type | 4*2 Left or right hand driving | ||
| Max Speed (km/h) | 98 | ||
| Overall dimension(mm) | 7100*2250*2750 | ||
| GVW( kg) | 7360 | ||
| Mass in working order ( kg) | 1960 | ||
| Wheelbase(mm) | 3800 | ||
| Front/Rear Axle Loading (kg) | 1800/3500 | ||
| Approach/Departure Angel | 24/12 | ||
| Tire | 7.50R16 6+1 pcs | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Enging | Model | Chaochai 156hp | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Exhaust(ml) | 2771 | ||
| Braking system | Service Brake | Oil brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :3(mm) side /4(mm) rear | ||
| Dirty tank volume | 8cbm/8000Liters/8M3/6tons | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||

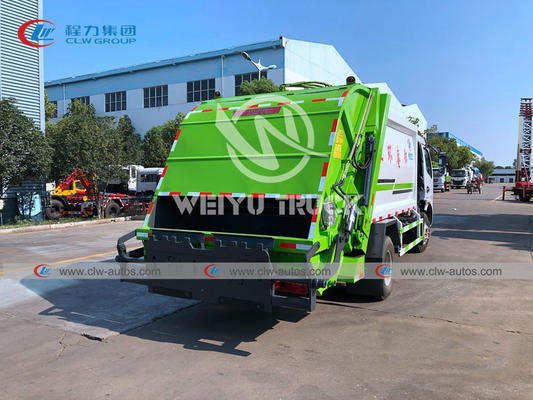

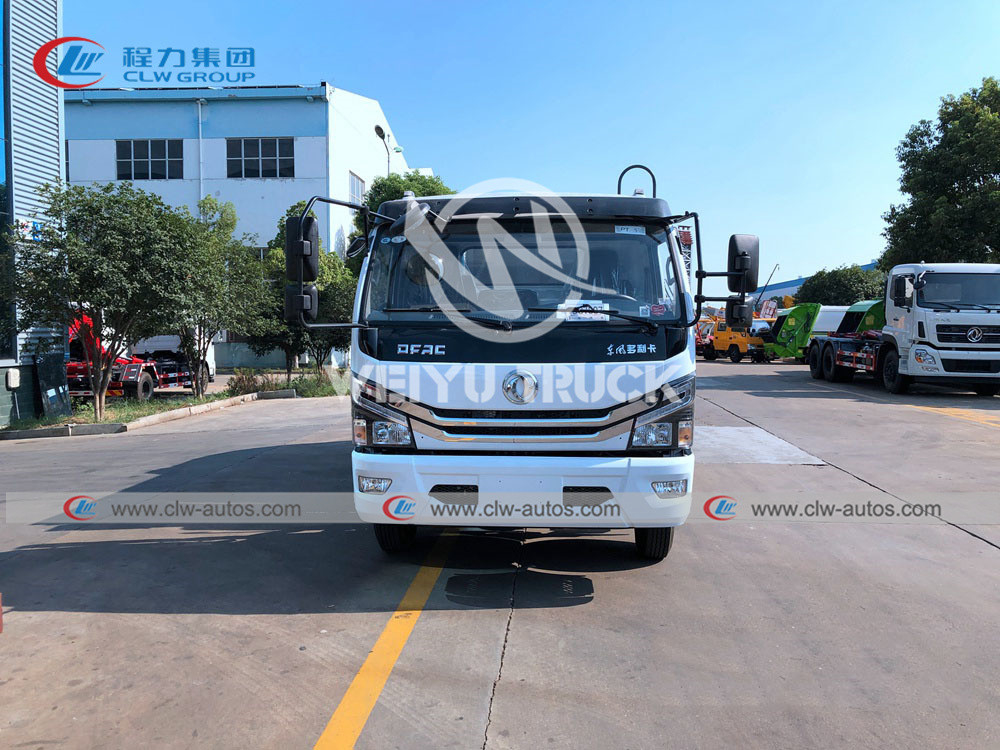

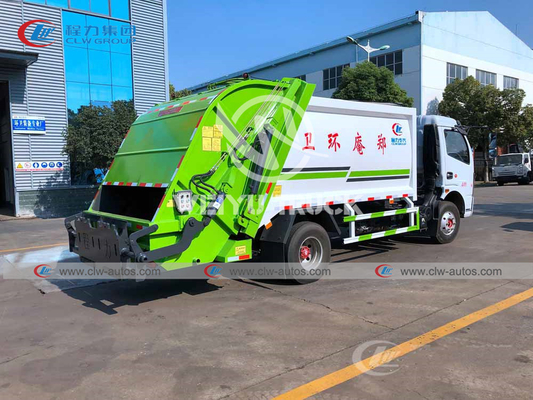

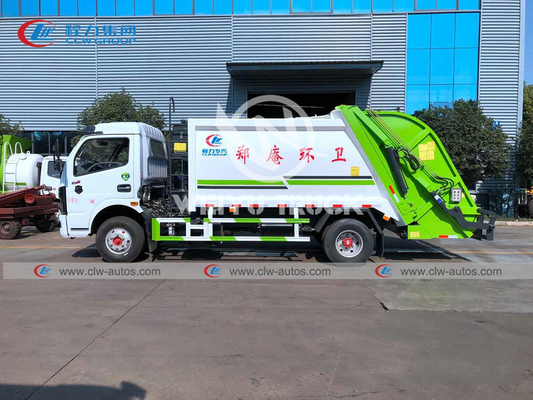

Reference photos
Diagram of compactor garbage truck
Main parts of garbage truck
Factory overview
