Product Details:
Payment & Shipping Terms:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage Compactor, Waste Removal |
|---|---|---|---|
| Material: | Carbon Steel Q235B | Thickness: | Side 4 Mm And Bottom 5mm |
| Tank Volume: | 14cbm/14000Liters/12m3/ 10tons | Wheel Base: | 4700 |
| Horsepower: | 180HP | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
| Control: | Both Manual And Electric Control | Color: | Customized |
Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck
Product Descriptions
Widely used
Support customized
Heavy load
Simple operation
Plate thickening
Fully function
Product Specifications
| Truck Chassis Specification | |||
| Chassis | Dongfeng | ||
| Cab | Dongfeng single row cab | ||
| Driving Type | 4*2 Left or right hand driving | ||
| Max Speed (km/h) | 110 | ||
| Overall dimension(mm) | 8350*2490*3250 | ||
| Tare weight( kg) | 9850 | ||
| Wheelbase(mm) | 4700 | ||
| Front/Rear track (mm) | 1504/1425 | ||
| Approach/Departure Angel | 24/16 | ||
| Tire | 9.00R20, 6+1 pcs | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Enging | Model | Cummins 180hp | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Braking system | Service Brake | Oil brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /5(mm) rear | ||
| Dirty tank volume | 14cbm/14000Liters/14M3 | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||

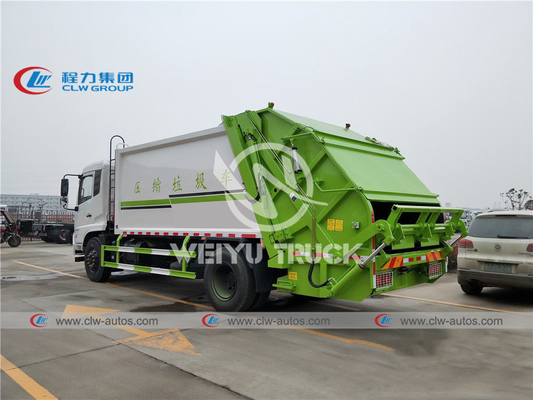

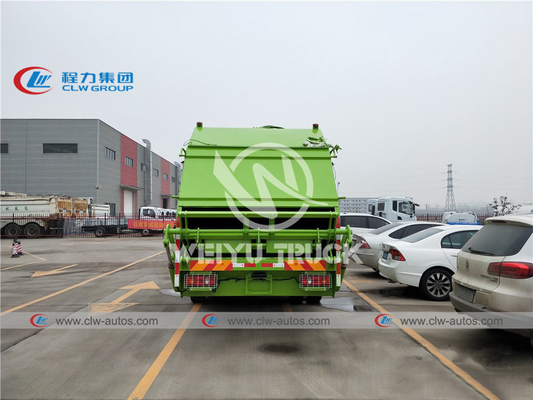

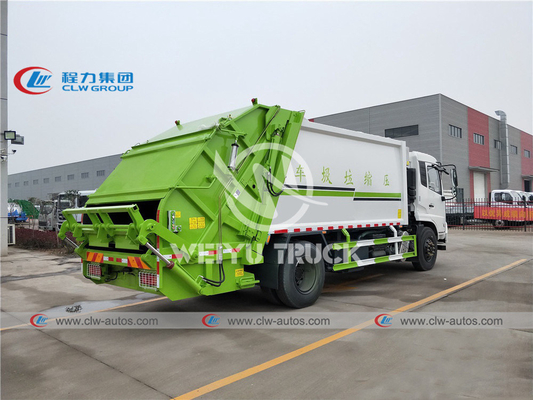

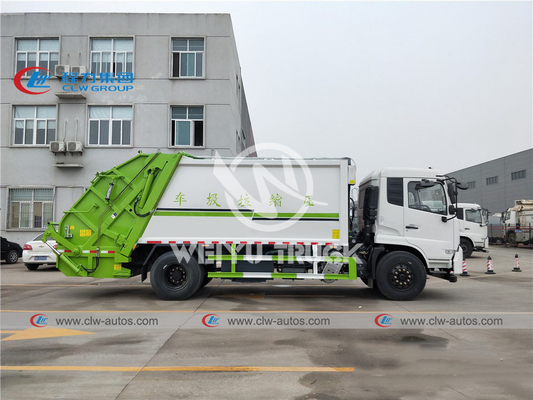

Reference photos
Diagram of compactor garbage truck
Main parts of garbage truck
Factory overview
