Product Details:
Payment & Shipping Terms:
|
| Brand: | ISUZU,Dongfeng,FOTON, HOWO, JAC, JMC, SHACMAN,FAW | Material: | Carbon Steel |
|---|---|---|---|
| Thickness: | Side 3 Mm And Bottom 4 Mm | Wheel Base: | 3308mm |
| Horsepower: | 120HP, ISUZU | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
| Transport Package: | Naked, Waxed, Bulk Ship, RO-RO | Logo: | As Per Customer′s Request |
| Transmission Type: | Manual, Automatic |
Product Description
1--Truck chassis :
2--Strong pressure, large capacity: from 4cbm to 22cbm.
3--Easy operation from cabin or rear side of truck, button control panel & opeartion handle.
4--Highly efficient compression system which makes waste management more easy.

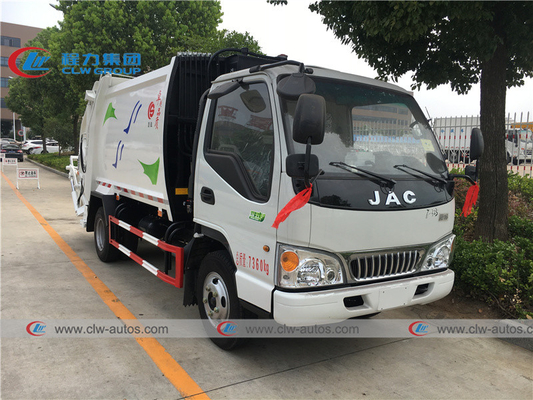

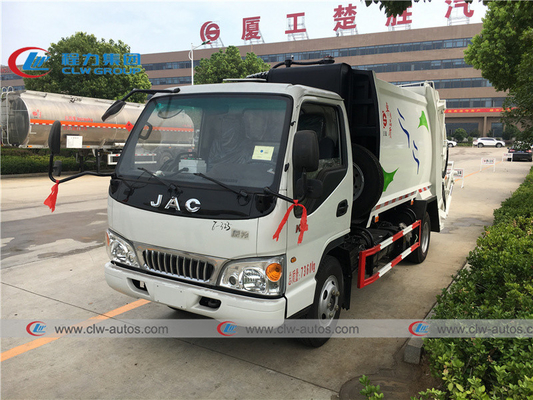

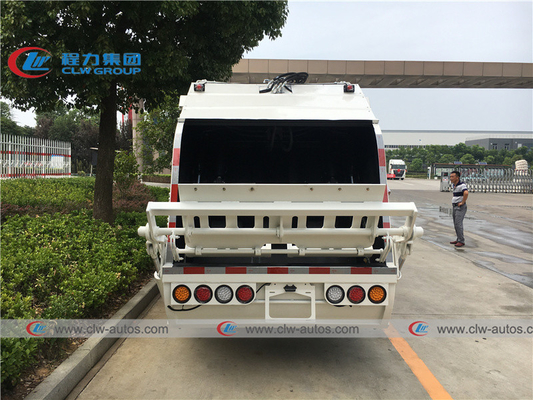

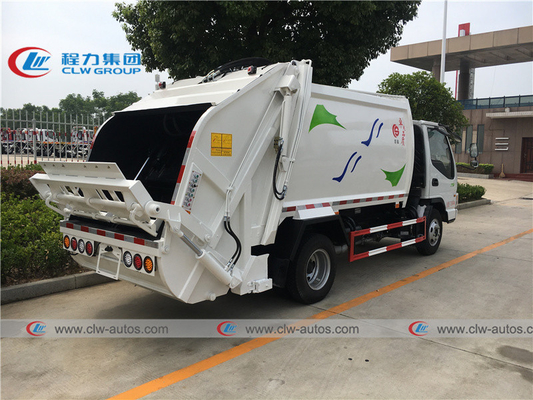

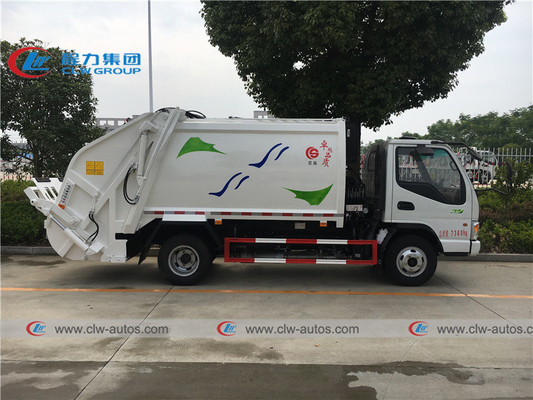

| 6cbm Garbage Compactor Truck Waste Collection Truck | |||
| Overall Dimension | 8280×2850×2350 mm | Gross Vehicle Weight | 8280 kg |
| Curb Weight | 2580 kg | Loading Weight | 5995 kg |
| Wheel Base | 3308 mm | Front / Rear Axle | 3300/4980 kg |
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||
| Engine | DONGFENG brand | ||
| Engine horsepower | 120HP, EURO IV | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
| Tire | 6.50-16 6 pieces with one spare) | ||
| Garbage Bin | Capacity | 7cbm or 8CBM | |
| Material | 4mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Garbage Compact Ratio | 1/3 - 1/4 | ||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
| Dependable Security | |||
| 5. Electrical Control Panel for compacting system. | |||
| 6. Cycling time<14~18s | |||
| Remarks | 1. Color is optional | ||
| 2. Customized LOGO painting as per customer request | |||
Compactor Carbage Truck Production Process
Our Service
Customized design as per customer's request
Professional engineer team with 20 years experience
Production photos and video, easy see the whole process
Test before shipment, customer can do live inspection
Operation video to teach you how to use the truck step by step
Spare parts whenever needed at factory price, freight cost by customer's side
Maintenance gudiance whenever need
One year warranty and life long service
Product details
Main structure Diagram
Different types of garbage truck & adventage
Packing and shipping
