Product Details:
Payment & Shipping Terms:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage Compactor, Waste Removal |
|---|---|---|---|
| Material: | Carbon Steel Q235B | Thickness: | Side 4 Mm And Bottom 5mm |
| Tank Volume: | 12cbm/12000Liters/12m3/ 10tons | Wheel Base: | 4700 |
| Horsepower: | 140HP | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
| Control: | Both Manual And Electric Control | Color: | Customized |

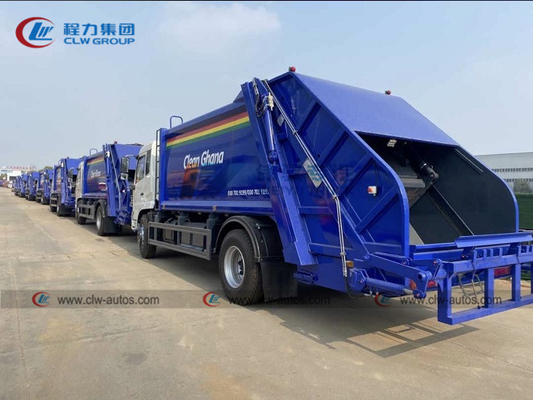

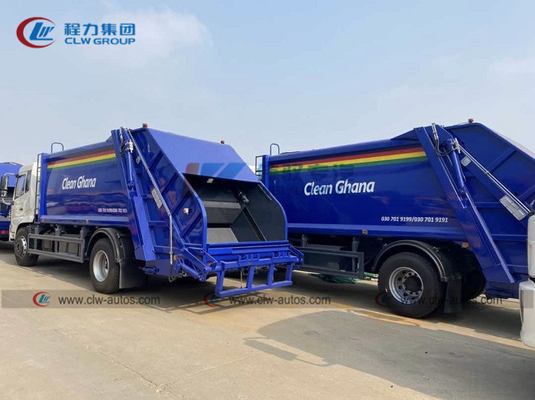

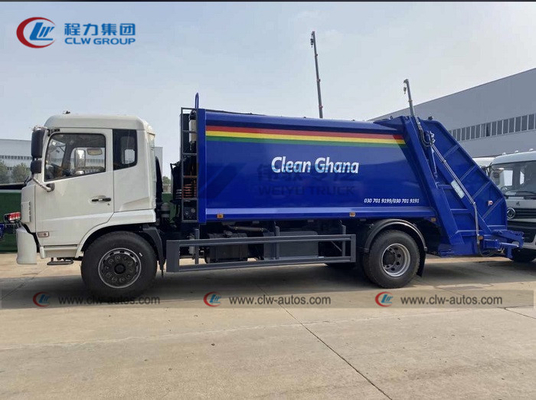

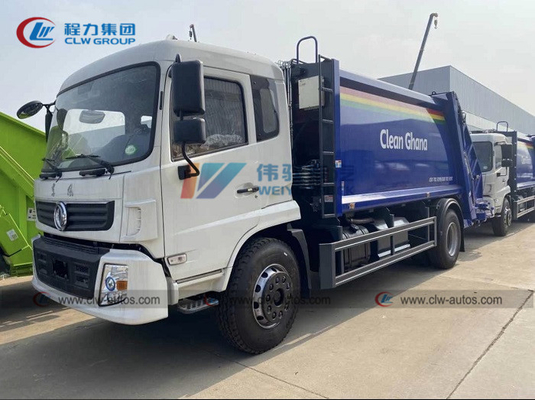

Carbon Steel Q235 Side 4mm Bottom 5mm 12m3 Garbage Bin Compacted Truck In Ghana Market
Product Descriptions
Widely used, support customized
Heavy load , simple operation
Plate thickening , fully function
High-quality Q345 manganese steel of WISCO, with four sides and five bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.
Product Specifications
| Truck Chassis Specification | |||
| Chassis | Dongfeng | ||
| Cab | Dongfeng single row cab | ||
| Driving Type | 4*2 Left or right hand driving | ||
| Max Speed (km/h) | 99 | ||
| Overall dimension(mm) | 7845*2200*2360 | ||
| Tare weight( kg) | 3650 | ||
| Wheelbase(mm) | 4700 | ||
| Front/Rear track (mm) | 1270/1875 | ||
| Approach/Departure Angel | 28/14 | ||
| Tire | 8.25R16,8.25R20, 6+1 pcs | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Enging | Model | YUCAI 140hp | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Braking system | Service Brake | Oil brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /5(mm) rear | ||
| Dirty tank volume | 12cbm/12000Liters/12M3 | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||
Diagram of compactor garbage truck
Main parts of garbage truck
Factory overview
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
