Product Details:
Payment & Shipping Terms:
|
| Driving Model: | LHD&RHD | Chassis Brand: | HOWO, Dongfeng, Foton, Shacman, Isuzu Compactor Garbage Truck |
|---|---|---|---|
| Fuel Type: | Diesel Engine Garbage Truck | Material: | Carbon Steel |
| Volume: | 7m3, 7000liters, 7cbm, 4tonns,4mt | After-sales Service Provided: | Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service |
| Truck Type: | Compactor Rear Loader Recycling Roll, Garbage Compressor, Garbage Compactor | Name: | Compactor GarbageTruck, New Refuse Compactor Trucks, Garbage Compactor Truck For Sale, Garbage Compactor Recycling Truck |
| Loading Capacity: | 3tons, 4tons, 5tons, 3t, 4t, 5t | Wheel Base: | 3380 |

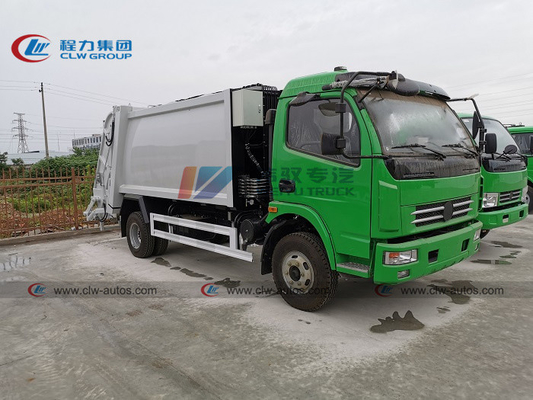

Euro3 7cbm/7m3 Rubbish Removal Truck 6 Wheel Compressed Garbage Truck
Product Description
Widely used, support customized
Heavy load , simple operation
Plate thickening , fully function
High-quality Q345 manganese steel of WISCO, with three sides and four bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.
Specification of 7cbm 6 Wheel Compressed Garbage Truck
| Specification of Truck Chassis | ||
| Driving Model | 6X4 | |
| Cab | Dongfeng cabin,left/Right hand drive, single row,2~3 passengers, with air conditioner | |
| Wheel Base | 3380mm | |
| Loading Weight | 6300kg | |
| Curb Weight | 2750kg | |
| Axle Loading (front/rear) | 3620/5430 kg | |
| External Dimensions (L x W x H) | 6815×2030×2350mm | |
| Overhang (front/rear) | 1115/1900mm | |
| Wheel track (front/rear) | 1670 /1586mm | |
| Approach/Departure angle | 20°/ 16° | |
| Max. driving speed | 99 km/h | |
Engine |
Model | YUNNEI engine,YN38PE-2 |
| Type | 6-cylinders in a line, turbo-charging and inter-cooling | |
| Horse Power | 122Hp | |
| Emission standard | Euro3 | |
| Displacement | 3760ml | |
| Gearbox | Manual type,8 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 8.25R16 14PR, 6 pieces with 1 spare tire. | |
| Garbage Truck Body | |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 3mm, Bottom 4mm |
| Garbage Container Size | 7 CBM,7000liters |
| Max. Loading Capacity | 70~80 Barrel (240L) |
| Pressing system | |
| Pressure | 16Mpa |
| Compaction ratio | 1.2:1 |
| Loading cycle | 25-30 second |
| Unloading cycle | 15-20 second |
pressing mechanism |
The giving plate and hinge related pressing plate moving on two directing bars |
| Pressing mode | Automatic pressing |
| Control of pressing | Control from the external panel on the bunker |
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty of garbage truck?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
