| Product Name: | Garbage Compactor Truck, Compressed Waste Refuse Compactor Trucks | Drive Type: | 6X4 10WHEELS Rear Load Refuse Truck |
|---|---|---|---|
| Drive Model: | LHD&RHD | Loading Capacity: | 12tons, 14tons, 16tons, 12T, 14T.16T |
| Truck Brand: | Optional | Tuck Type: | Waste Collection Truck |
| Other Equipment: | With Hyraulic Systerm | Condition: | Optional |
| Fuel Type: | Diesel | After-sales Service Provided: | Overseas Third-party Support Available,Online Support,Video Technical Support,Free Spare Parts |
| Transmission Type: | Manual | Emission Standard: | Euro 2,Euro3,Euro 4 |
| Truck Type: | Garbage Compressor, Garbage Compactor | Engine Power: | 210-260HP |
| Name: | New Refuse Compactor Trucks,garbage Compactor Recycling Truck | Color: | Customized |

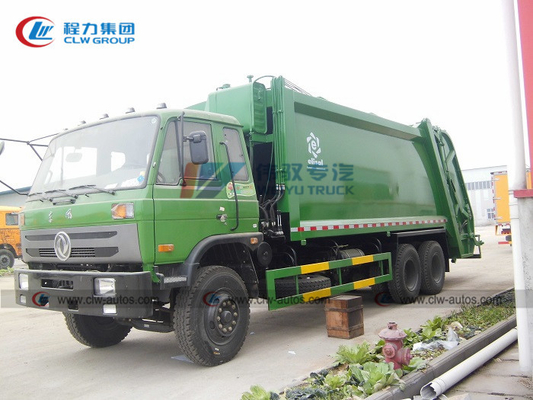

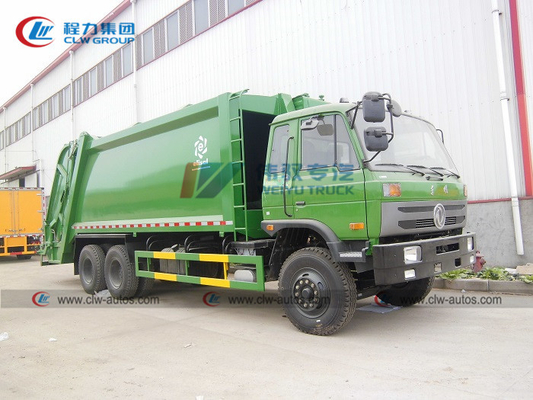

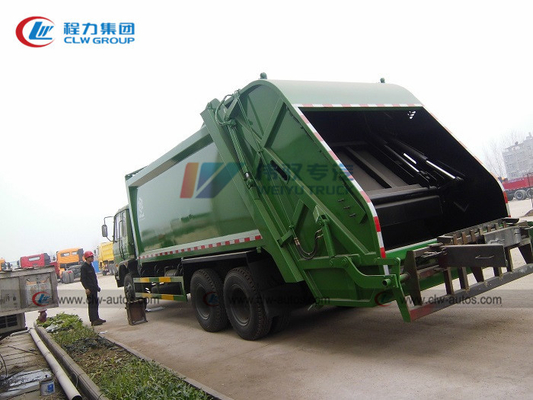

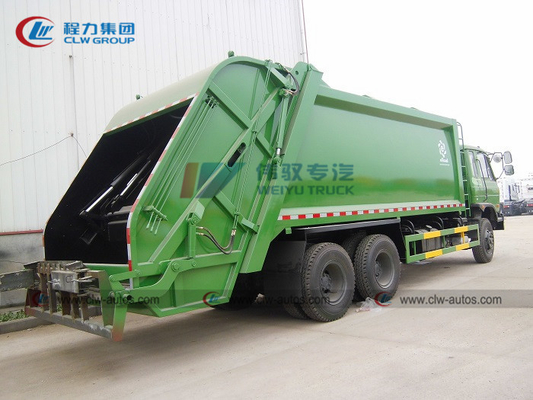

Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck
Product Features
| Truck Chassis Specification | |||
| Chassis model | EQ1166GJ5 | ||
| Cab | Dongfeng half row cab | ||
| Driving Type | 6*4 LHD | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 9360×2462×2710 | ||
| GVW( kg) | 16000 | ||
| Mass in working order ( kg) | 9500 | ||
| Wheelbase(mm) | 4350+1300 | ||
| F/R overhang (mm) | 1245/2465 | ||
| Approach/Departure Angel | 32/14 | ||
| Tire | 10.00R20,11.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 5-speed | ||
| Enging | Model | EQB210-20 Cummins | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 5880 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /4(mm) rear | ||
| Dirty tank volume | 18cbm/18000Liters/18M3/15tons | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||
