Product Details:
Payment & Shipping Terms:
|
| Brand: | DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | Drive Wheel: | 4x2, 4x4, 6x4, 8x4,others |
|---|---|---|---|
| Components: | Loading, Compressing,Discharging | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| Operating System: | One In The Cabin, One On The Back Of The Truck | Purpose: | Domestic Garbage Transport |
| Warranty: | One Year For Major Parts | LOGO: | As Per Customer's Request |
| Operation Video: | Yes, With Multi-language For Choice | Technical Support: | Whenever Need |
| Emission Standard: | Euro 3, Euro 4, Euro 2, GB V, EuroIII / EuroIV /EuroV |

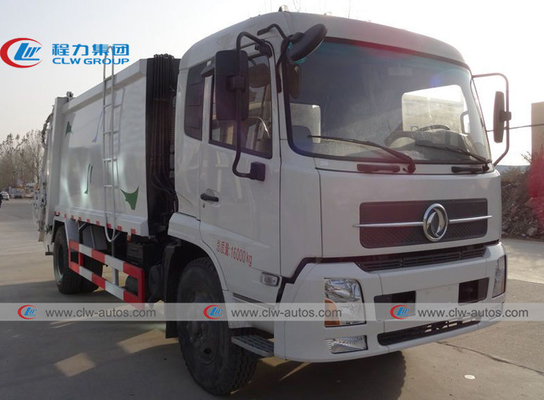

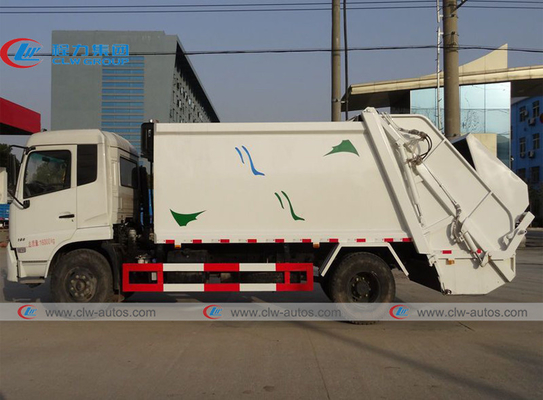

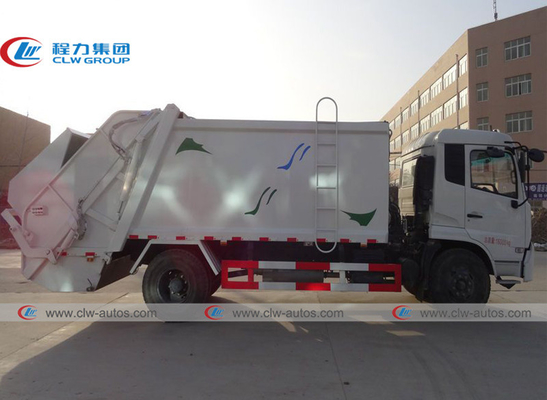

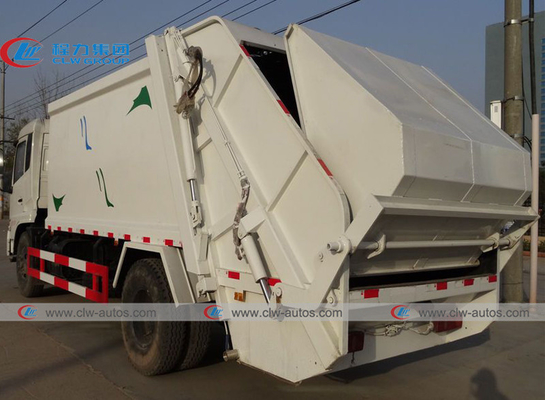

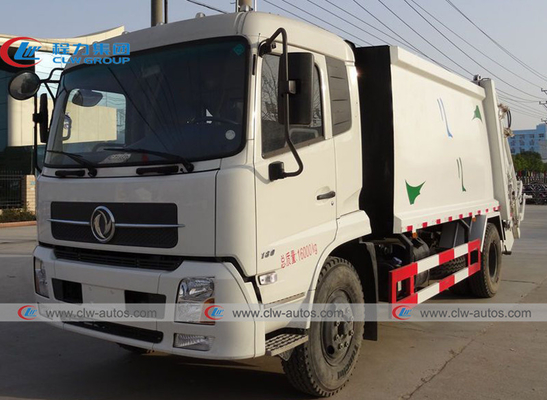

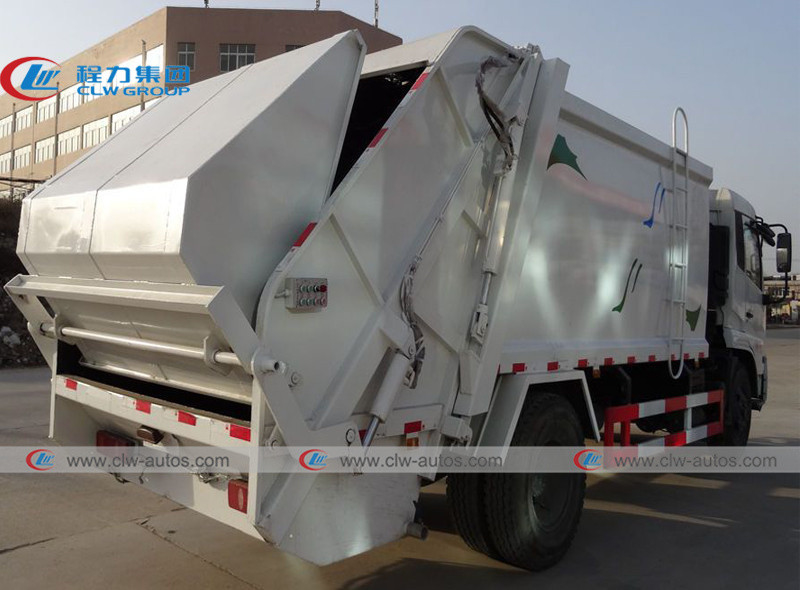

10cbm Dongfeng 4X2 Compactor Garbage Truck refuse Collection removal for sanitation
Product Descriptions:
Dongfeng Compressed garbage truck (also called garbage compactor, SINOTRUK rear loader garbage truck, factory price refuse compactor, Dongfeng garbage compressor truck, Dongfeng waste compactor truck, rubbish compactor manufacturer in China) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.
Specifications of 10CBM Garbage Compactor Truck
| Dongfeng 10CBM Compressed Garbage Truck | |||||
| Overall Dimension | 7020×2462×2690 mm | Gross Vehicle Weight | 10920 kg | ||
| Curb Weight | 4670 kg | Loading Weight | 6250 kg | ||
| Wheel Base | 3950 mm | Front / Rear Track | 1900 kg / 1800kg | ||
| Cabin | Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine Type | EQB160-20 | ||||
| Engine horsepower | 160HP, EURO2 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 9.00-20 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 10CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Factory introduction
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
