Product Details:
Payment & Shipping Terms:
|
| Box Material: | Carbon Steel Q235B | Truck Brand: | SINOTRUK HOWO, DONGFENG, FAW, FOTON, ISUZU |
|---|---|---|---|
| Tank Volume: | 18cbm | Truck Engine: | WP615.47 371hp |
| Gearbox: | Manual, 10 Forward & 2 Reverse | Tire: | 11.00-20, 11.00R20, 12.00-20, 12.00R20 |
| Axle: | 7Ton Front Axle & 13Ton*2 Rear Axle | Garbage Truck Type: | Compactor |
| Driving Type: | 4x2, 6*4, 8*4 Left Hand Drive Or Right Hand Drive | Steering: | LHD, Rhd |

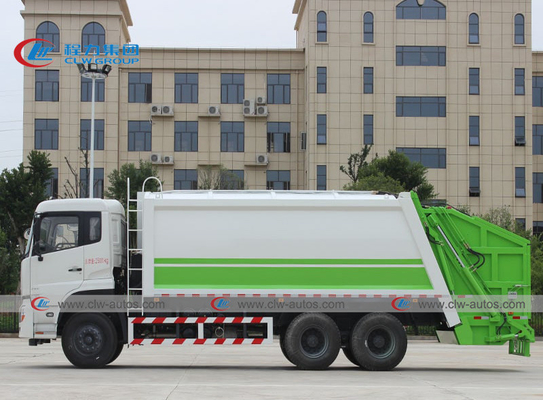

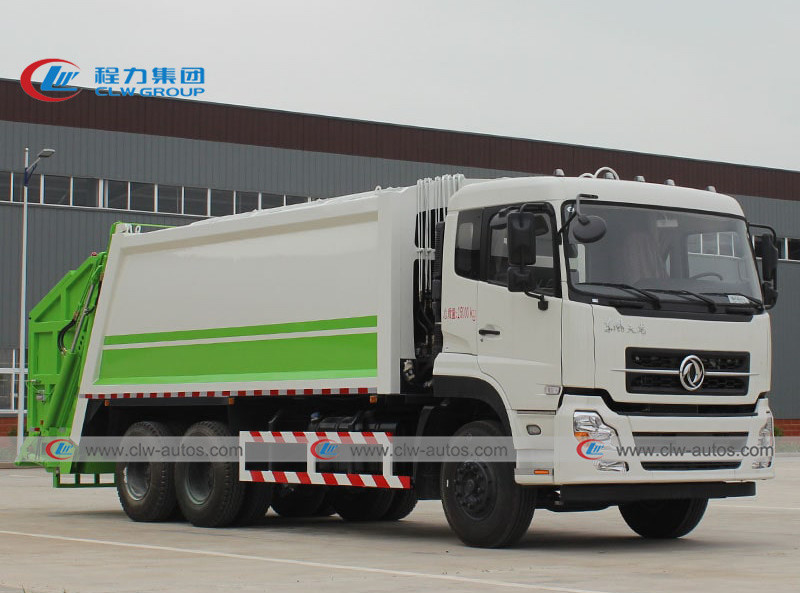

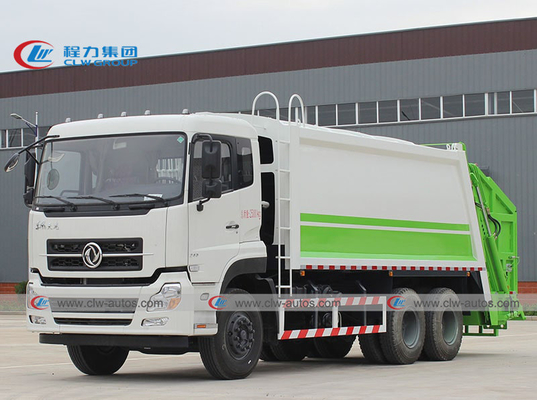

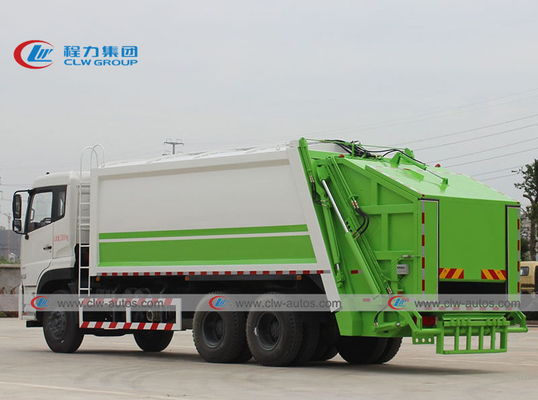

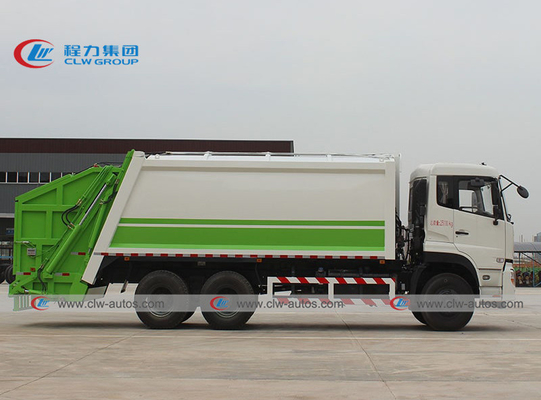

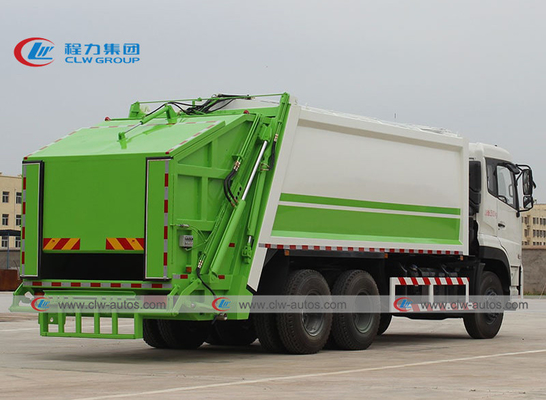

Dongfeng 6x4 18cbm Compressed Garbage Truck for sanitation trash collection
Product Description
Garbage Compactor truck( Compactor garbage truck, garbage compression truck, compressed garbage truck, compactor waste removal truck.)
Working processing:
The trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.
Product Specifictions
| ITEM | UNIT | PARAMETER | ||
| Vehicle | HOWO 6X4 Garbage compactor truck | |||
| Overall dimensions | mm | 9860×2500×3450 | ||
| Tank volume | m3 | 16-18 | ||
| GVW | kg | Appro×25000 | ||
| Curb weight | kg | Appro×10000 | ||
| Payload | kg | Appro×15000 | ||
| Wheel base | mm | 4350+1350 | ||
| Suspension | 1250/2610 | |||
| F/R track base | 1940/1860 | |||
| Approach/departure angle | ° | 23/15 | ||
| Max speed | km/h | 95 | ||
| Axle Load | kg | 6000/13000*2 | ||
| Tire specification | 12.00R20 / 10 Units+1 spare tire | Number of axles | 3 | |
| Engine model | WD615.47 | Diesel, 6 Cylinder, direct line, water cooling | ||
| Engine performance | ml/kw | 9726/273/371 | ||
| Steering | Power | Transmission | Manual,10 speed with over drive, 10F&2R | |
| Cab passenger | 3 | Electric System | 24V | |
| Tank material | Carbon steel | |||
| Standard configuration |
1. Hydraulic system powered by trucks chassis PTO 2. Body with rear lifting system to handle garbage containers capacity 120L, 240L. 3. Body sides and roof built from high tensile sheets thickness 5mm. 4. Box platform built with high tensile sheets thickness 4 mm, hopper floor built with high tensile sheets thickness 5 mm. 5. Body painted 1 coat anti-corrosion primer and 2 coats synthetic paint |
|||
Truck diagram
Main parts
Different Garbage Types
Factory overview
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
