Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Carbon Steel | Thickness: | 4 Mm |
|---|---|---|---|
| Fuel: | Diesel | Driving Type: | 4*2, Left/right Hand Driving |
| Pump: | China Famous Brand/International Brand | Suction Height: | 7 Meters |
| Water Canon Range: | 30 Meters | Sprinkling Width: | 14 Meters |
| Operating Video: | Yes | Use Manual: | Yes |
| Front Spray And Rear Spray: | Yes | Warranty: | One Year |
| LOGO: | As Per Customer's Request | Storage: | Water |
| Warranty: | 1 Year, One Year, 12 Month, 12Months | ||
| High Light: | Dongfeng 4x2 Water Bowser Truck,Water Bowser Truck 10000L |
||
Dongfeng 4*2 10,000L Water Bowser Truck fire sprinkler For City sanitation Cleaning
Product Description
1. The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :30 meters
5. Reliable and high quality water pump
Specifications of dongfeng 4X2 10tons/10cbm water bowser truck
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 5495 kg | ||
| Gross weight(kg) | 12495 kg | ||
| Wheelbase(mm) | 3950 mm | ||
| Dimensions(mm) | 7800*2480*3000 mm | ||
| Front Loading Capacity (Ton) | 4750 | ||
| Rear Loading Capacity (Ton) | 7745 | ||
| Max. driving speed(km/h) | 100 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 9.00R20 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate two people. With air conditioner. | ||
| Engine | Brand | CUMMINS | |
| Fuel type | Diesel | ||
| Power(kw) | 125 kw | ||
| Horsepower(HP) | 170 HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 3 | ||
| Upper | |||
| Water tank | Capacity(cbm/tons) | 10 | |
| Tank Dimension(mm) | 4200*2200*1300 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7 meters | ||
| Function | 1, Front Side Rear Sprinkling width≥ 14m | ||
| 2, Water cannon range≥ 28m | |||
| Remarks | 1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||
Water Truck Diagram
Working Show

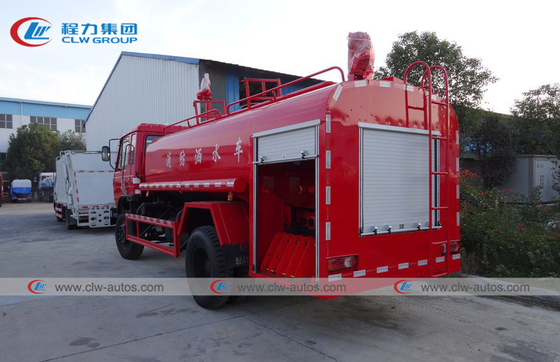

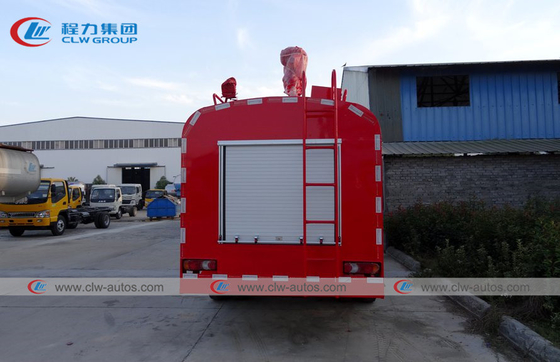

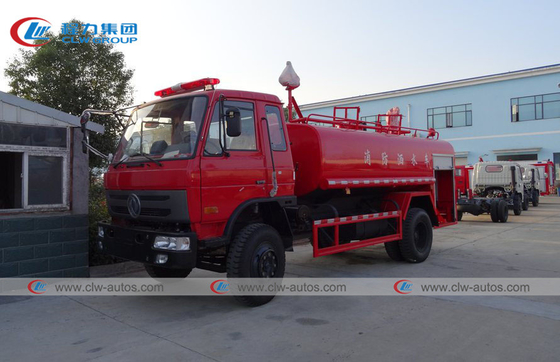

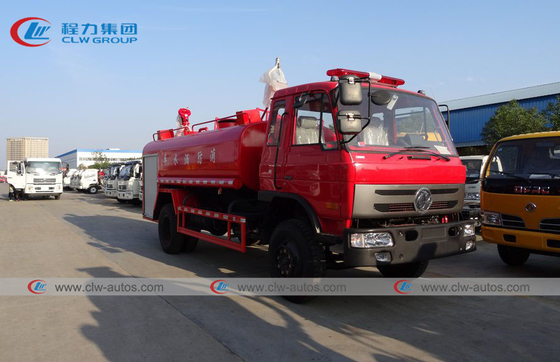

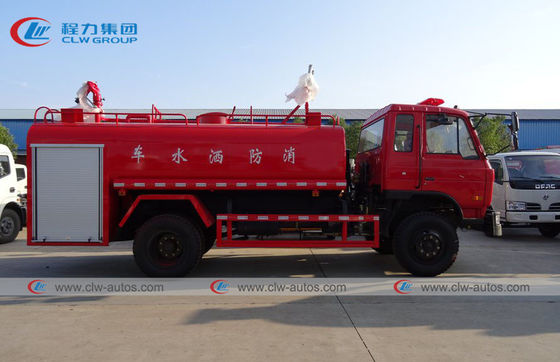

Truck Details
Water bowser truck production line:
Other types of special truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
