Product Details:
Payment & Shipping Terms:
|
| Crane Brand: | CLW Brand | Lifting Capacity: | 8tons,8mt |
|---|---|---|---|
| Drive Model: | 6*4/8wheels | Wheelbase(mm): | 1800+4200mm |
| Color&Logo: | Customized | Boom Type: | Stright Type |
| Working Platform: | 360°turning(left Or Right) | Chassis Brand: | SINOTRUK HOWO |
| High Light: | HOWO 8mt Mounted Telescopic Crane,8tonns Mounted Telescopic Crane Truck |
||

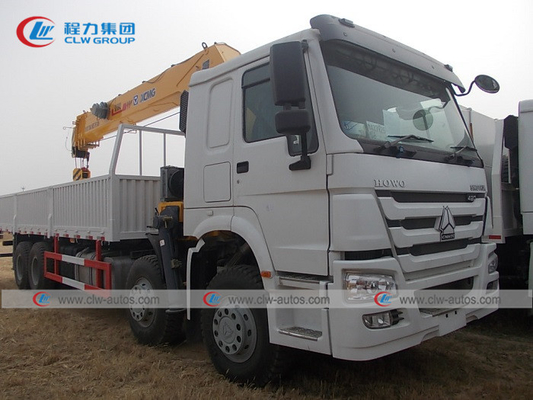

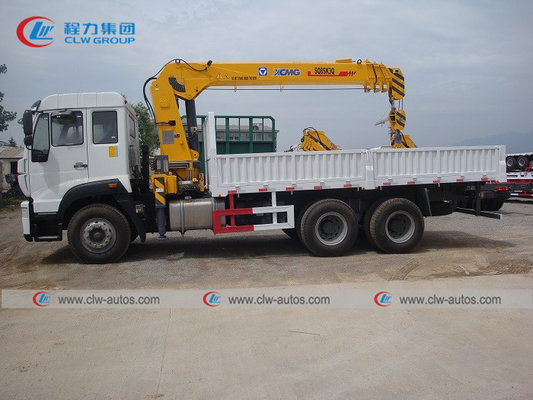

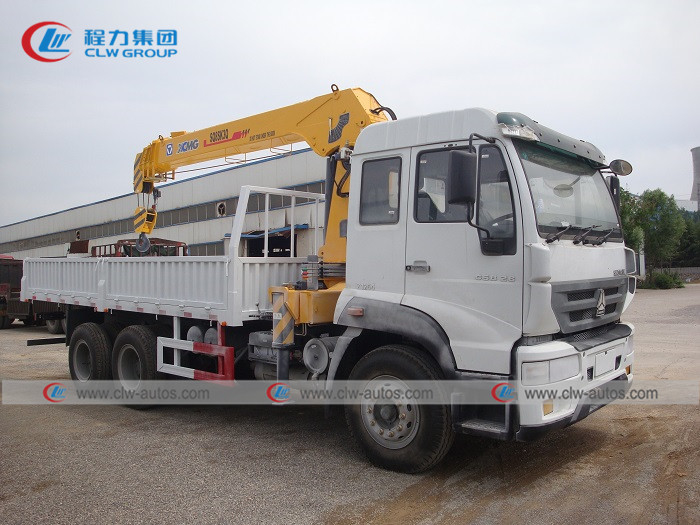

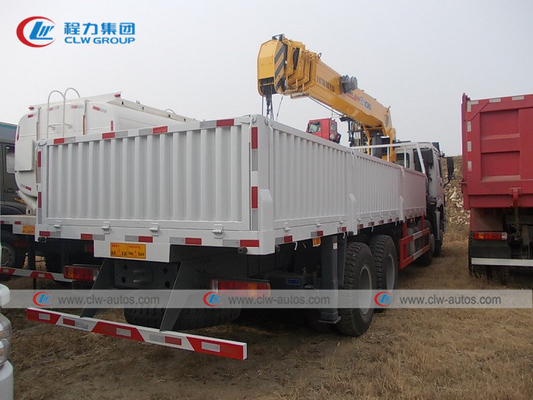

HOWO 8mt 8tonns Mounted Telescopic Crane Truck Bed Mounted Crane Stright Boom Type
Product Description
Stable and reliable: a baffle plate is set on each side of the front end of the flat plate, which can effectively prevent the vehicle from moving forward, which is stable and safe
| Condition | New condition/LHD&RHD/6x4 | ||
| Chassis | Brand | SINOTRUK | |
| Model | HOWO | ||
| Curb weight(kg) | 7250 kg | ||
| Wheelbase(mm) | 1800+4200mm | ||
| Dimensions(mm) | 9930*2436*3035 mm | ||
| Overhang (front/rear) (mm) | 1430/2500 mm | ||
| Approach/Departure angle(°) | 19/20 | ||
| Axle Load(kg) | 12850 kg | ||
| Max. driving speed(km/h) | 110 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | ZF, Power steering, hydraulic steering with power assistance | ||
| Tire | Number | 8pcs with one spare tire | |
| Specifications | 295/80R22.5 16PR | ||
| Transmission | 10 Forwards and 2 Reverses | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | SINOTRUK | |
| Model | MT07.26-50 | ||
| Displacement(ml) | 6870 ml | ||
| Power(kw)/Horsepower/(HP) | 191kw/260 HP | ||
| Emission standard | Euro 4 | ||
| Upper | |||
| Crane | Working Platform | 360°turning(left or right), H-shape legs 360° | |
| Extendable boom section | 5 | ||
| Boom Type | Straight type | ||
| Max. Lifting Weight(tons) | 8 tons | ||
| Max. Working Radius(m) | 11.8 m | ||
| Max. Lifting height(m) | 13.5 m | ||
| Landing leg quantity(pcs) | 4 pcs | ||
| Landing leg telescopic distance(m) | Rear 5.1m and Front 7.8m | ||
| Pump capacity(cc/r) | 100 cc/r | ||
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 120tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane, we all adopts CLW brand crane if request lifting capacity is above 30tons,
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
