Product Details:
Payment & Shipping Terms:
|
| Box Material: | Carbon Steel Q235B | Truck Brand: | Dongfeng Kingrun |
|---|---|---|---|
| Tank Volume: | 12-14cbm | Truck Engine: | Cummins |
| Gearbox: | Fast 8 Forward & 1 Reverse | Tire: | 9.00-20, 10.00-20, 10.00R20, 11.00-20, 11.00R20 |
| Axle: | 5Ton Front Axle & 10Ton Rear Axle | Garbage Truck Type: | Compactor |
Dongfeng Kingrun 4x2 type ISO9001 12cbm 12000Liters garbage compactor truck compression waste removal truck for sanitation services
Compactor garbage truck function introduction
1. Compactor garbage truck, also known as post-loading compressed garbage truck, is a new type of sanitation vehicle for collecting, transferring and transporting garbage to avoid secondary pollution. The post-filling device is used to dock with the garbage can or garbage bucket and combine together to form a mobile garbage transfer station to realize pollution-free recycling collection and transportation of one carload and more than one bucket of garbage. It effectively prevents the secondary pollution caused by scattering and flying in the process of collection and transportation.
2. Combined control of gas, electricity and hydraulic pressure. The control system of the vehicle makes comprehensive use of the advantages of electric control, air control and hydraulic control. The electric control system controls the air control system, and the hydraulic valve group is controlled by the air control system, which improves the reliability and efficiency.
3. Advanced electronic control system. PLC (programmable controller) integrated control, control circuit generated in PLC, the use of logic circuit to ensure that the operation instructions in order to execute, at the same time to ensure the interlock between the operation instructions, external only line connection, reduce the incidence of failure, avoid the accident caused by misoperation, improve the reliability;
4. Hydraulic lifting safety loop. A one-way balance valve is provided in the hydraulic system of the lifting loader. The valve not only ensures the smooth descent of the loader, but also cuts off the direct connection between the lifting cylinder and the hydraulic tubing. Even if the tubing bursts, the loader will not fall suddenly, which improves the safety of use.
5. Compressed garbage truck is closed in the process of compression loading and transportation. The sewage tank is installed with a unique sewage valve, reliable sealing, not easy to plug. The optional filling device completely covers the feeding port of the filling device, eliminating the phenomenon of garbage dust flying caused by the air disturbance at the rear of the vehicle during transportation, and making the appearance more beautiful.
How the Compactor Works. The trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.
1. Separated Truck & Container, One Truck Can Carry Many Garbage Containers in Short Time.
2. Design for Heavy Populated Area, including School, Office Area, Street, Park, Residentail Area, etc
3. One Man & One Key Control for both container loading & Garbage Discharging.
4. Large Volume Garbage Container, up to 5CBM, 8CBM, 10CBM, 12CBM, 14CBM, 16CBM, 18CBM.
5. Garbage Box is made of strong carbon steel material, can last for long time.
6. Garbage Box is designed rust resistance & easy to clean, can take High Temperature & Humdity.
Product Specifictions
| ITEM | UNIT | PARAMETER | ||
| Vehicle | Dongfeng Kingrun 12cbm garbage compactor truck | |||
| Overall dimensions | mm | 8360×2500×3250 | ||
| Tank volume | m3 | 12 | ||
| GVW | kg | Appro×18000 | ||
| Curb weight | Appro×8000 | |||
| Payload | Appro×10000 | |||
| Wheel base | mm | 4500 | ||
| Suspension | 1250/2610 | |||
| F/R track base | 1940/1860 | |||
| Approach/departure angle | ° | 23/15 | ||
| Max speed | km/h | 95 | ||
| Axle Load | kg | 6000/10000 | ||
| Tire specification | 9.00R20 / 7 Units | Number of axles | 2 | |
| Engine model | B190-33 | Diesel, 6 Cylinder, direct line, water cooling | ||
| Engine performance | ml/kw | 5900/140/190 Euro III | ||
| Steering | Power | Transmission | 6 speed with over drive, 6F&1R | |
| Cab passenger | 3 | Electric System | 24V | |
| Tank material | Carbon steel | |||
| Standard configuration |
1. Hydraulic system powered by trucks chassis PTO 2. Body with rear lifting system to handle garbage containers capacity 120L, 240L. 3. Body sides and roof built from high tensile sheets thickness 4 mm. 4. Box platform built with high tensile sheets thickness 4 mm, hopper floor built with high tensile sheets thickness 5 mm. 5. Body painted 1 coat anti-corrosion primer and 2 coats synthetic paint |
|||

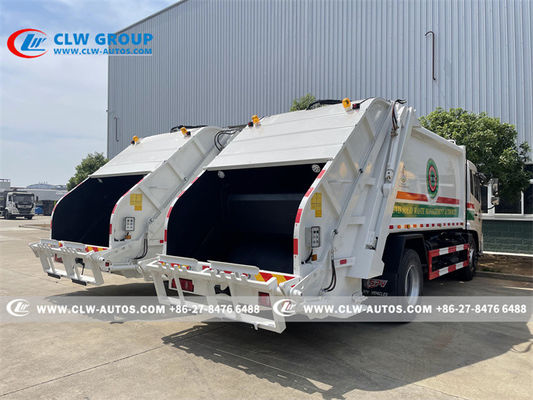

Reference photos
Truck diagram
Main parts
Factory overview
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
