Product Details:
Payment & Shipping Terms:
|
| Brand: | DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZ U | Drive Wheel: | 6x4 |
|---|---|---|---|
| Components: | Loading, Compressing, Discharging | Campacting Ratio: | 0.7-0.8 Ton/Cbm |
| Operating System: | One In The Cabin, One On The Back Of The Truck | Purpose: | Domestic Garbage Transport |
| Warranty: | One Year For Major Parts | LOGO&PAINTING: | As Per Customer's Request |
| Operation Video: | Yes, With Multi-language For Choice | Technical Support: | Whenever Need |
Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.
Main structure:
Chassis
Garbage box; Lifting structure
Compressor and filling parts; Rear operation panel
Turnover mechanism/filling parts; Revocery water tank
Hydraulic tank; Manual operation panel
Types of compactor garbage truck:
All-sealing trash hopper
Triangle trash hopper
Swing arm trash hopper
Hanging bucket trash hopper

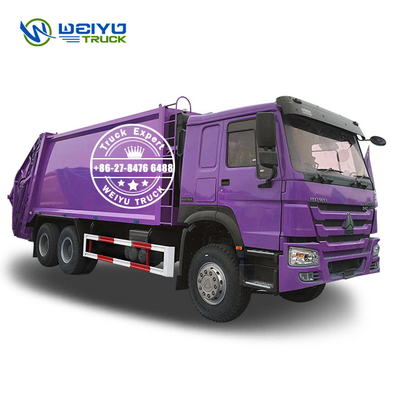

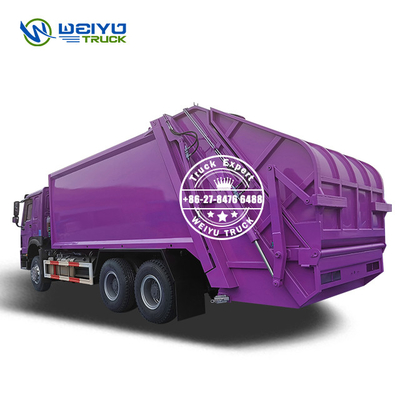

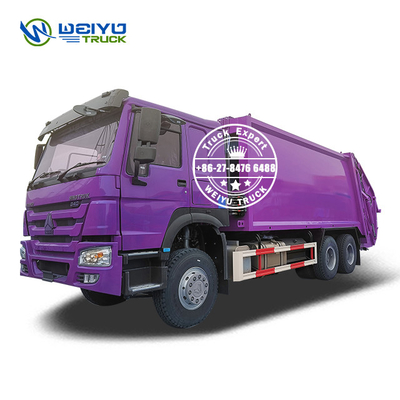

Specifications of 18CBM Garbage Compactor Truck
| Howo 18CBM Compressed Garbage Truck | |||||
| Overall Dimension | 9680*2550*3250mm | Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 13900 kg | Loading Weight | 11100 kg | ||
| Wheel Base | 5825+1350mm | Front / Rear Track | 7000 kg / 18000kg | ||
| Cabin | Right Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine Model | Diesel | ||||
| Engine horsepower | 340HP, EURO3 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 10 Forward, 2Reverse | ||||
| Tire | 12.00R20 (10 pieces with one spare) | ||||
| Garbage Bin | Capacity | 18CBM | |||
| Material | 5mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.75tonns/cbm | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
