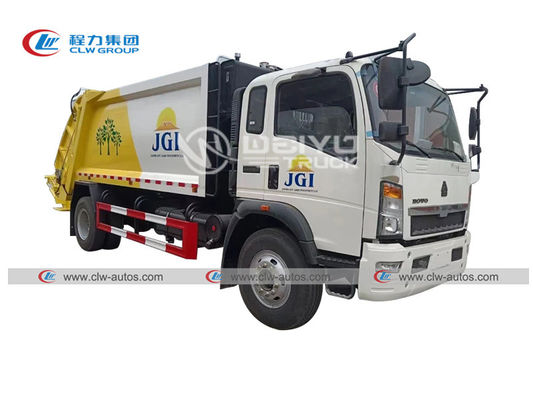

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3
HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3

Large Image :  HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW594RIR

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Brand: Sinotruk Howo Drive Wheel: 4x2
Components: Loading, Compressing, Discharging Campacting Ratio: 0.75tonnes/cbm
Operating System: One In The Cabin, One On The Back Of The Truck Purpose: Garbage Collection Refuse Management
Warranty: One Year For Major Parts LOGO&PAINTING: As Per Customer's Request
Operation Video: Yes, With Multi-language For Choice Technical Support: Whenever Need
High Light:

HOWO LHD Garbage Compactor Truck

,

Garbage Compactor Truck 12m3

HOWO LHD 6wheelers 12m3 Good Sealing Rear Load Garbage Compactor Truck Compression Transportation Garb

Product Description:

1. Overall dimension: 8600*2500*3250mm
2. Cabin: Left Hand Driving, one and half row, 3 Passengers Allowed, with Air Conditioner
3. Engine: YC4E160-33,160hp diesel engine
4. Grabge bin: 12cbm tank volum with 5mm carbon steel material
5. Garbage Compact Ratio: up to 0.75tonnes/cbm
6. Operation system: electrical Control Panel, hand operation and cab operation
7. Single cycle time: less than 18 seconds


Product advantages:

  • Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.

  • It is equipped with computer control system for loading and unloading operations.

  • One Person operate that can reduce sanitation working time and greatly improves the working environment.

  • It install computer control system and manual operation system in order to improve the vehicle using rate.

Types of compactor garbage truck:

  • All-sealing trash hopper

  • Triangle trash hopper

  • Swing arm trash hopper

  • Hanging bucket trash hopper

Specifications of 12cbm Garbage Compactor Truck

12cbm Garbage Compactor Truck
Overall Dimension 8600*2500*3250mm Gross Vehicle Weight 18000 kg
Curb Weight 10500kg Loading Weight 7370kg
Wheel Base 4700mm Front / Rear Axle 3200/8000kg
Cabin Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio
Engine model Dissel
Engine horsepower 160HP, EURO3
Max Driving Speed 90 km/h
Gear Box 6 Forward,1 Reverse, manual control
Tire 8.25R20(6 pieces with one spare)
Garbage Bin Capacity 12CBM
Material 5mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 0.75tonns/cbm
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with high quality dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request



HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 0


Diagram


 HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 1

Various types of fliping mechanism:

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 2



 Successful cases:

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 3



Our factory:

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 4

CLW group,which was appointed by the Development and Reform Committee of China is a professional manufacturer and factory who have been dealing in different kinds of special vehicles, trailers and construction machineries in central China since 2004.

Our advantages:

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • More than 30 independents workshops for different types of trucks
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians and about 8000 staffs
  • 800kinds of trucks and semi-trailers with various functions
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • More than 100,000 trucks and semi-trailers annually.
  • Truck Sold to 90 countries
  • Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
  • We can handle production of bulk order water trucks of tender and government purchase in required time
