Product Details:
Payment & Shipping Terms:
|
| Brand: | Sinotruk Howo | Material: | High Intense Carbon Steel, Q235 |
|---|---|---|---|
| Thickness: | Side4 Mm And Bottom 4 Mm | Wheel Base: | 3800mm |
| Horsepower: | 141HP, Cummins | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
| Operation Video: | Yes | ||
| High Light: | Cummins Diesel Engine Waste Compaction Truck,HOWO 8m3 Waste Compaction Truck |
||
Product descriptions:
1. Howo chassis with high quality and good reputation.
2. Cummins 141HP diesel engine match with 6-speed gearbox
3. 8cbm tank volum with side4mm, bottom4mm carbon steel tank material
4. 2.4T /4.2T front and rear axle, good load-bearing performance
5. Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
6. Bottom box and filler are made of thickened steel plate
7. Garbage Compact Ratio is up to 0.75tonnes/cbm
Product advantages:
1. It use carbon steel garbage box and anti-corrosion sewage tank body.
2. Self-loading is about 12-30seconds, waste discharging time is less than 30 seconds.
3. It is optional for German Siemens PLC/Chinese famous control system, Hypris/Chinese famous hydraulic cylinder.
4. Thickened steel plate can improve the corrosion resistance using life.

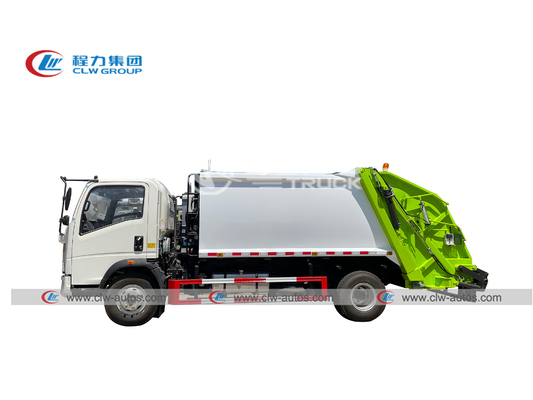

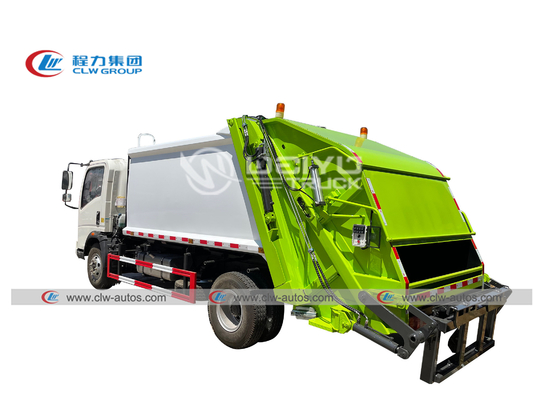

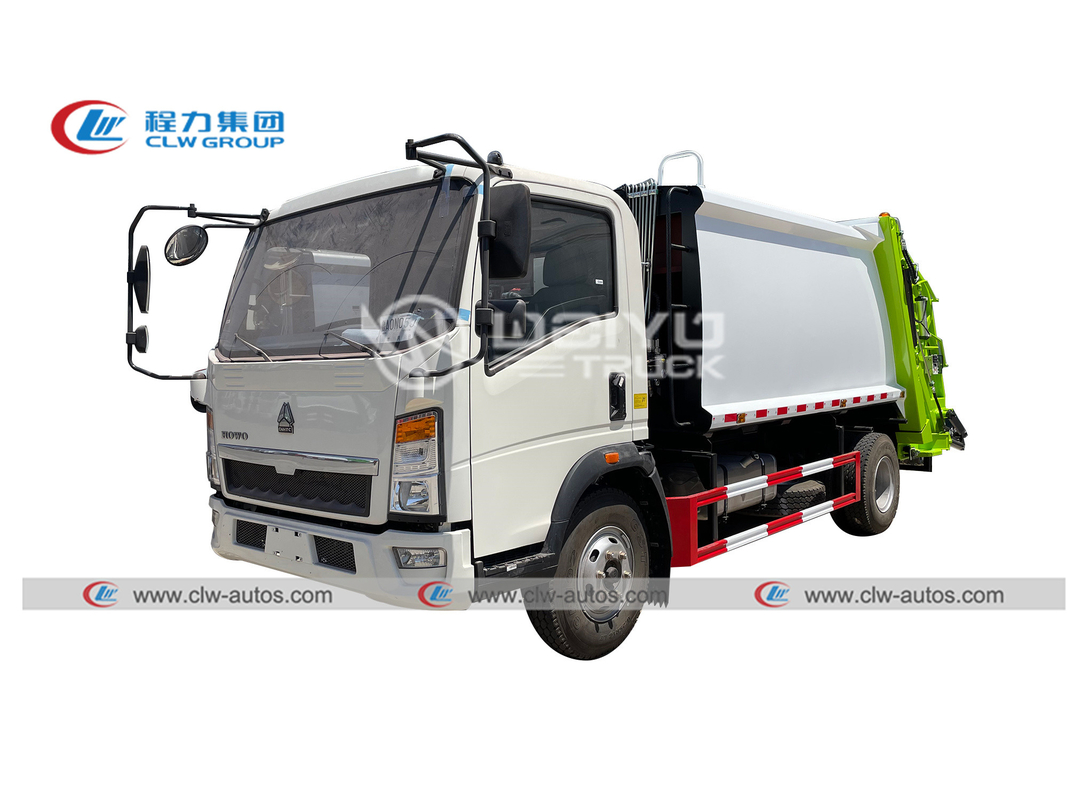

| Howo Hydraulic Compactor Garbage Truck (8 cbm) | ||
| General | Chassis Brand | Howo |
| Overall Dimension | 8890X2500X3300mm | |
| GVW / Kerb Weight | 18000kg / 5500kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins | |
| Power | 141 HP | |
| Front/rear loading | 2400kg/4200kg | |
| Emission Standard | Euro3 | |
| Chassis | Drive Type | 4X2, (Left hand drive) |
| Gear box | 6 forward with 1 reverse,manual type | |
| Wheelbase/No. of axle | 3800mm / 2 | |
| Tire Specification | 7.50R16 radial tire | |
| Tire Number | 6 tires with 1 spare tire | |
| Max Speed | 90 km/h | |
| Spring | 11/9+7CH | |
| Superstructure | Body capacity | 8cbm |
| Fill Hopper capacity | 0.73cbm | |
| Sewage tank | 600 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control |
|
| Control panel | English or customized language | |
| All standard accessories: Dust bin lifter, Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... | ||
| Optional |
1) Back alarm and Camera can be equipped. 2) Italy mulit-valve can be choose. 3) 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose. |
|
Waste Compactor Truck Production Process
Various types of rear loader:
Customized design as per customer's request
Professional engineer team with 20 years experience
Production photos and video, easy see the whole process
Test before shipment, customer can do live inspection
Operation video to teach you how to use the truck step by step
Spare parts whenever needed at factory price, freight cost by customer's side
Maintenance gudiance whenever need
One year warranty and life long service
