Product Details:
Payment & Shipping Terms:
|
| Brand: | HOWO,FAW,ISUZU,Dongfeng,FOTON, JAC, JMC, SHACMAN | Material: | High Intense Carbon Steel,Q235 |
|---|---|---|---|
| Thickness: | Side 4mm And Bottom 5 Mm | Garbage Bin Size: | 14cbm,14m3 |
| Wheel Base: | 5000mm | Horsepower: | 240HP, WEICHAI |
| Hydraulic Pump: | Chinese Famous Brand | Control System: | Siemens Brand Operate System. |
| Warranty: | 1 Year | Logo: | Customized Painting And Logo |
| Operation Video: | Yes | Shipment: | Bulk Shipping Or Roll Roll |
| High Light: | 240HP Diesel Engine Rear Loader,6wheelers Diesel Engine Rear Loader |
||

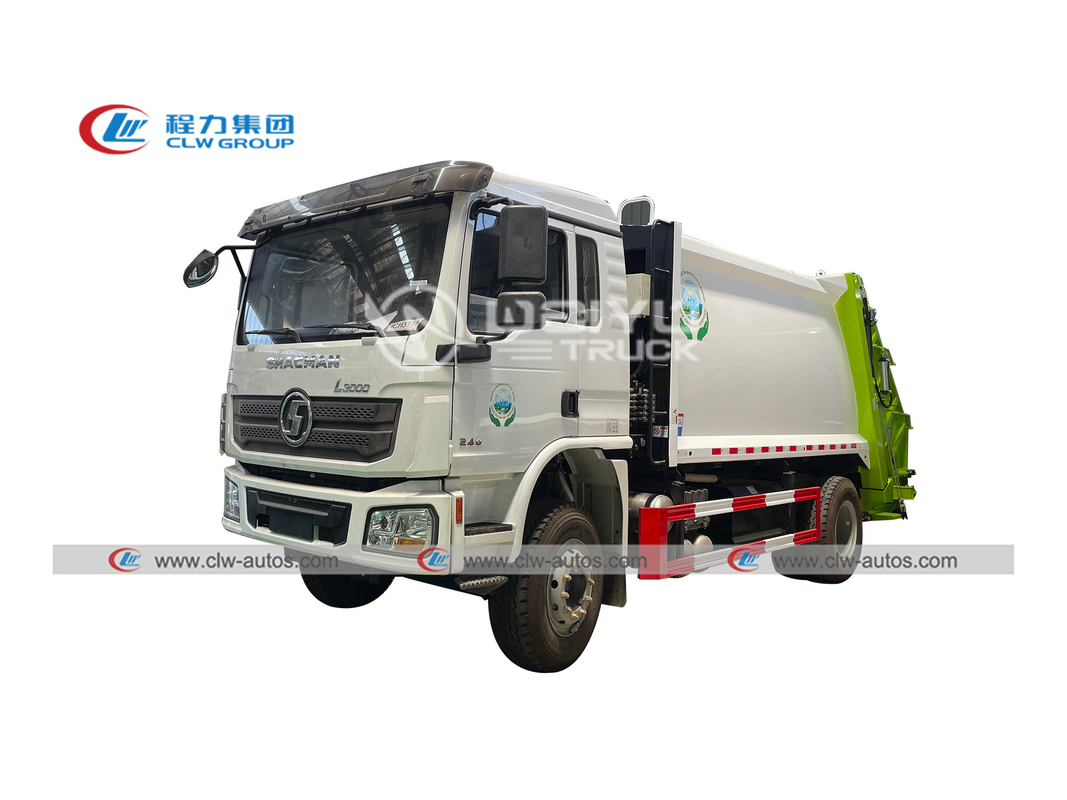

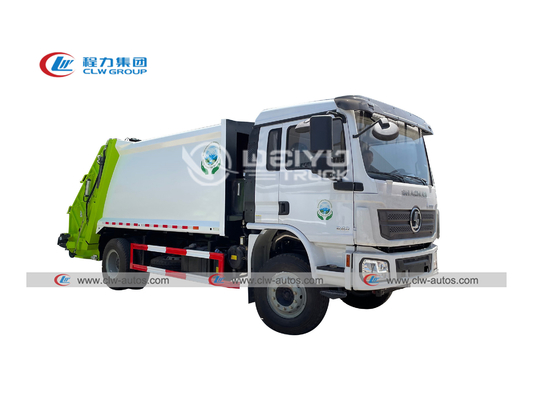

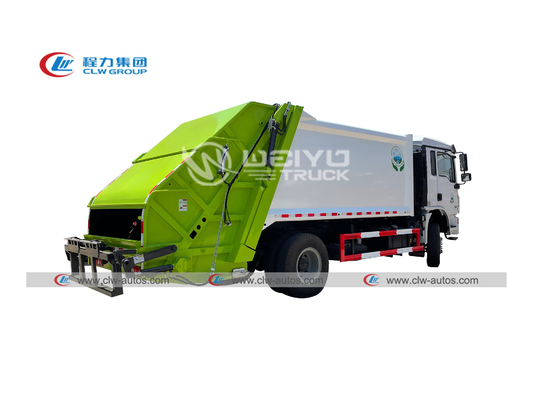

Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck
Product descriptions:
Product advantages:
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.
| SHACMAN Hydraulic Compactor Garbage Truck (14 cbm) | ||
| General | Chassis Brand | Shacman |
| Overall Dimension | 8890X2500X3300mm | |
| GVW / Kerb Weight | 18000kg / 5500kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai | |
| Power | 240 HP | |
| Front/rear loading | 4800kg/10000kg | |
| Emission Standard | Euro2 | |
| Chassis | Drive Type | 4X2, (Left hand drive) |
| Gear box | 8 speed levers with 2 reverse | |
| Wheelbase/No. of axle | 5000mm / 2 | |
| Tire Specification | 10.00R20 radial tire | |
| Tire Number | 6 tires with 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 14cbm |
| Fill Hopper capacity | 0.73cbm | |
| Sewage tank | 600 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control |
|
| Control panel | English or Your language | |
| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... | ||
| Optional |
1) Back alarm and Camera can be equipped. 2) Italy mulit-valve can be choose. 3) 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose. |
|
Compactor Carbage Truck Production Process
Successful cases
Our product advantages:
1. Frame structure: the waste bin adopts solid frame structure welded by reinforcing beams and steel plates.
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Various fliping mechanisms
