Product Details:
Payment & Shipping Terms:
|
| Brand: | HOWO,FAW,ISUZU,Dongfeng,FOTON, JAC, JMC, SHACMAN | Material: | High Intense Carbon Steel,Q235 |
|---|---|---|---|
| Thickness: | Side 3mm And Bottom 4 Mm | Garbage Bin Size: | 5cbm,5m3 |
| Wheel Base: | 3360mm | Horsepower: | 98HP, Euro5 |
| Hydraulic Pump: | Chinese Famous Brand | Control System: | Siemens Brand Operate System. |
| Warranty: | 1 Year | Logo: | Customized Painting And Logo |
| Operation Video: | Yes | Shipment: | Bulk Shipping Or Roll Roll |
| Controlling Way: | Manual And Electrical Control | Campacting Ratio: | 0.75tonnes/cbm |
| Dirty Water Tank Volume: | 0.26cbm | Hopper Volume: | 0.73cbm |
| High Light: | 5cbm Rear Loader,Hanging Bucket Fliper Waste Disposal Truck |
||
Product descriptions:
1. Isuzu chassis with high quality and good reputation.
2. Isuzu 98HP diesel engine match with 2999ml emission
3. 5cbm tank volum with side3mm, bottom4mm carbon steel-Q345 tank material
4. Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
5. Bottom box and filler are made of thickened steel plate
6. Garbage Compact Ratio is up to 0.75tonnes/cbm
Three types of control system:
1. Electric control system: it can control the operation of the pressing mechanism and the turning mechanism.
2. Manual control system: to prevent the failure of the electric control, and it can also work normally.
3. Cab operation control box: the operator can complete the unloading and sewage discharge without getting out of the car.

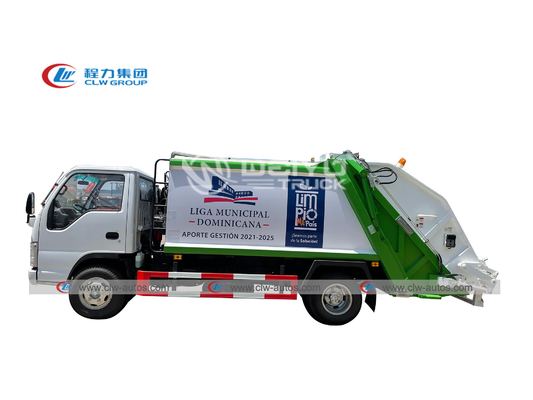

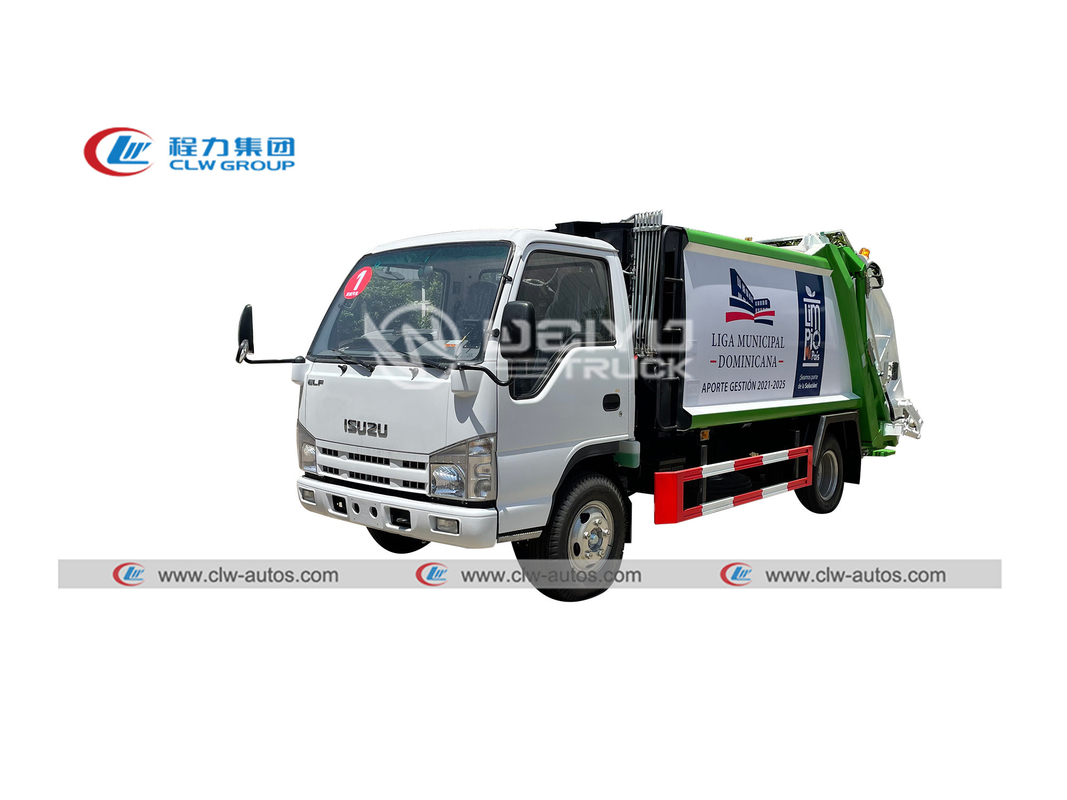

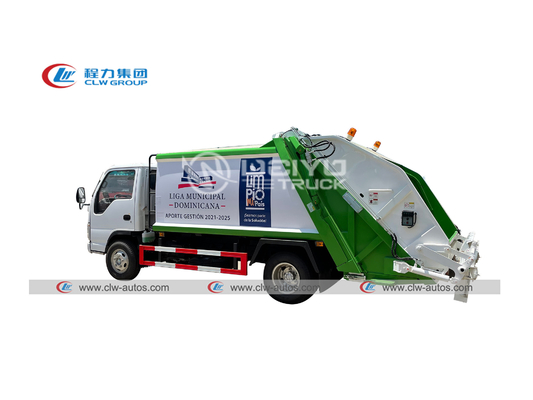

| Isuzu hydraulic garbage truck (5cbm) | ||
| General | Chassis Brand | ISUZU |
| Overall Dimension | 5995×2000×2450mm | |
| GVW / Kerb Weight | 4495kg / 4140kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Type | 4KH1CN5LS | |
| Power | 98HP | |
| Emission Standard | Euro5 | |
| Chassis | Drive Type | 4X2, (Left hand drive) oil break |
| Gear box | 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360mm / 2 | |
| Tire Specification | 700R16 radial tire | |
| Tire Number | 6 tires with 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 5cbm |
| Fill Hopper capacity | 0.73cbm | |
| Sewage tank | 600 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control | |
| Control panel | English or Your language | |
| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... | ||
| Optional | 1) Back alarm and Camera can be equipped. | |
Compactor Carbage Truck Production Process:
Successful cases:
Our Product advantages:
1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
2. It is equipped with computer control system for loading and unloading operations.
3. One Person operate that can reduce sanitation working time and greatly improves the working environment.
4. It install computer control system and manual operation system in order to improve the vehicle using rate.
