Product Details:
Payment & Shipping Terms:
|
| Brand: | HOWO,FAW,ISUZU,Dongfeng,FOTON, JAC, JMC, SHACMAN | Material: | High Intense Carbon Steel,Q235 |
|---|---|---|---|
| Thickness: | Side 4mm And Bottom 5 Mm | Garbage Bin Size: | 14cbm,14m3 |
| Wheel Base: | 5000mm | Horsepower: | 240HP, WEICHAI |
| Hydraulic Pump: | Chinese Famous Brand | Control System: | Siemens Brand Operate System. |
| Warranty: | 1 Year | Logo: | Customized Painting And Logo |
| Operation Video: | Yes | Shipment: | Bulk Shipping Or Roll Roll |
| High Light: | Shacman L3000 Compactor Garbage Truck,240HP Compactor Garbage Truck,Garbage Collection 14cbm Rear Loader |
||

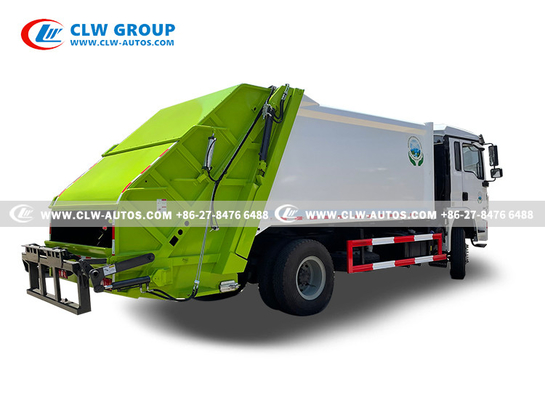

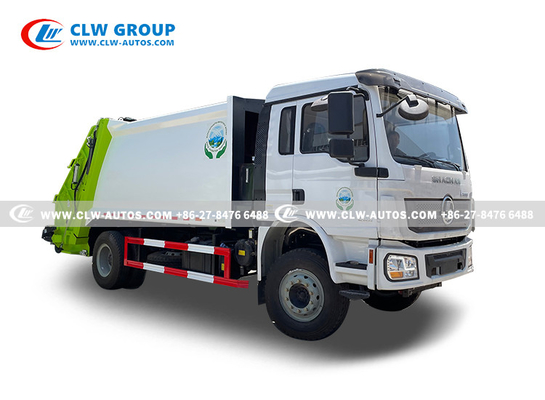

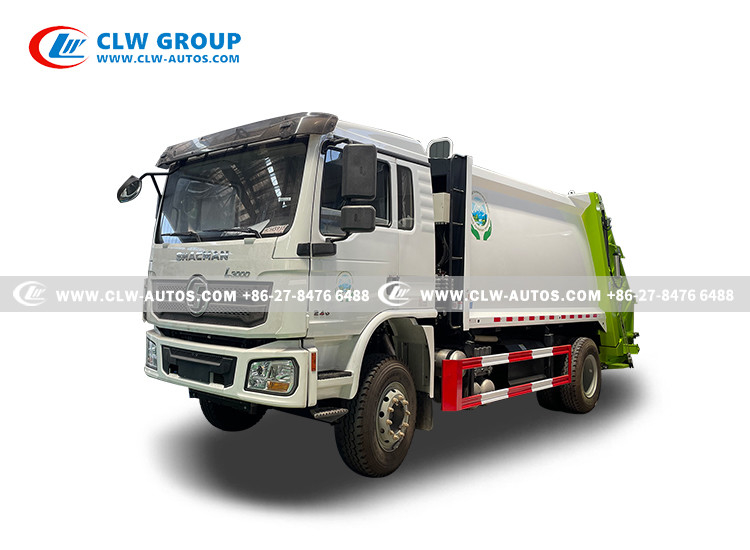

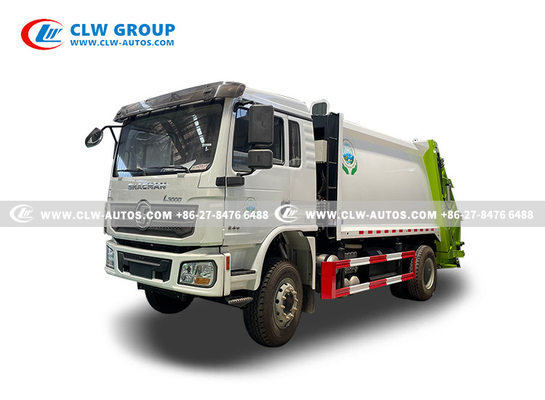

240HP Shacman L3000 Compactor Garbage Truck 14cbm Rear Loader Removel Garbage Collection Truck
Product Specifications:
Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.
Optional:
Hanging barrel type flip structure.
Full floor type garbage bucket.
Dustpan type garbage bucket.
Swing arm garbage bucket.
WorKing description:
The compression mechanism is composed of a pressure plate welded with a steel plate and a channel steel, a guide wheel and an oil cylinder seat, etc.
Pushed by the oil cylinder, the garbage in the hopper is compressed into the box.
Compression cycle time: 25-30s,
Compressed density: 0.6-0.8t/m3.
The unloading mechanism is composed of the unloading cylinder and the unloading push plate.
The discharge push plate is welded by steel plate and bracket.
The guide groove is positioned, and the cylinder is extended to push the discharge push plate to discharge the garbage
Time to shirk garbage: 40s
| SHACMAN 14 CBM Hydraulic Compactor Garbage Truck | ||
| General | Chassis Brand | Shacman |
| Overall Dimension | 8890X2500X3300mm | |
| GVW / Kerb Weight | 18000kg / 7500kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai | |
| Power | 240 HP | |
| Front/rear loading | 4800kg/10000kg | |
| Emission Standard | Euro2 | |
| Chassis | Drive Type | 4X2, (Left hand drive) |
| Gear box | 8 speed levers with 2 reverse | |
| Wheelbase/No. of axle | 5000mm / 2 | |
| Tire Specification | 10.00R20 radial tire | |
| Tire Number | 6 tires with 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 14cbm |
| Fill Hopper capacity | 0.73cbm | |
| Sewage tank | 600 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control |
|
| Control panel | English or Your language | |
| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... | ||
| Optional |
1) Back alarm and Camera can be equipped. 2) Italy mulit-valve can be choose. 3) 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose. |
|

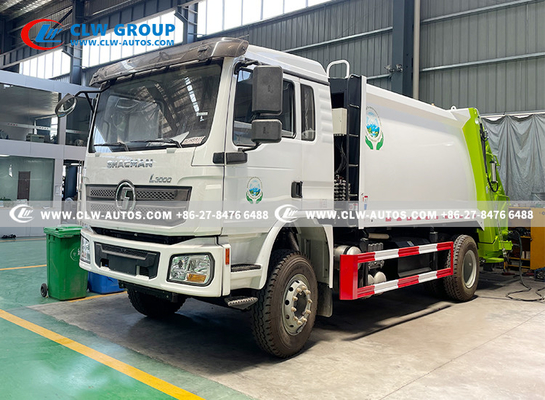

1. The factory produces 14 CBM compactor garbage trucks for export to Dominica
2. Production Process
3. Successful cases
Our product advantages:
1. Frame structure: the waste bin adopts solid frame structure welded by reinforcing beams and steel plates.
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Various fliping mechanisms
