Product Details:
Payment & Shipping Terms:
|
| Garbage Compactor Truck: | 15cbm, 15 | Power: | 210hp |
|---|---|---|---|
| Generator Set Dimension: | 8,980×2,550×3,350 (mm) | Delivery Time: | 45 Working Days |
| Warranty: | 1 Year | GVW: | 18,000KG |
| Compression Ratio: | 2~2.5:1 | Hydraulic Pressure: | 18MPa |
| Fuel Tank: | 400 Liters | Tire Specification: | 295/80R22.5 Tubeless Tires |
| Emission Standard: | EURO 4 | Loading Cycle Time: | Not More Than 25 S |
| High Light: | Garbage Compactor Truck 14cbm,Sinotruk HOWO Sanitation Garbage Compactor Truck |
||
Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.
| 14 cbm Garbage Compactor Truck | |||||
| Overall Dimension | 8900*2550*3300mm | Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 11000kg | Loading Weight | 7950kg | ||
| Wheel Base | 4700 mm | Front / Rear Axle | 6500/11500kg | ||
| Cabin | Right Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine model | Dissel | ||||
| Engine horsepower | 190HP, EURO4 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 8 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 11.00R20(6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 14CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.75 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with high quality dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||

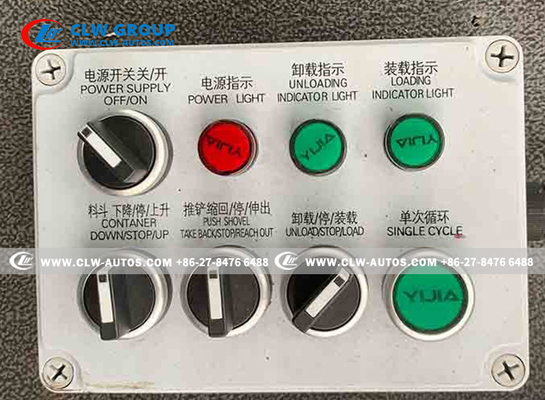

1. Cab operation panel for rear loading system

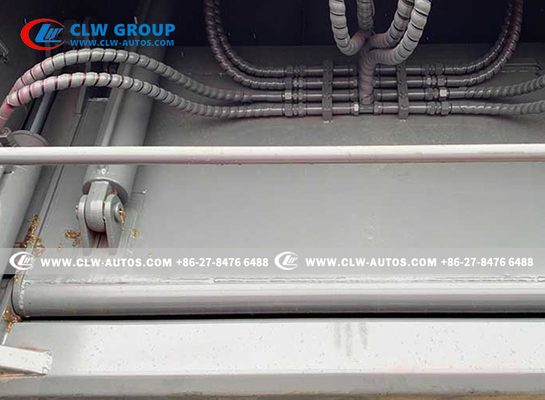

2.Hydraulic scraper operation feeding system
3.Large space cab, multi-function adjustable seat
