Product Details:
Payment & Shipping Terms:
|
| Garbage Compactor Truck: | 12cbm | Power: | 266hp |
|---|---|---|---|
| Generator Set Dimension: | 8,980×2,550×3,350 (mm) | Delivery Time: | 45 Working Days |
| Warranty: | 1 Year | GVW: | 18,000KG |
| Compression Ratio: | 0.75-0.8tonnes/cbm | Hydraulic Pressure: | 18MPa |
| Fuel Tank: | 400 Liters | Tire Specification: | 295/80R22.5 Tubeless Tires |
| Emission Standard: | EURO2 | Loading Cycle Time: | Not More Than 25 S |
| High Light: | HW70 PTO Rear Loader,Howo Garbage Compactor Truck 12m3 |
||
Product descriptions:
1. HW76 one and half row cabin
2. High quality Q345 managnese steel
3. The truck's tail is equipped with flip feeding mechanism and has 3cbm thick rubber sealing strip
5. Garbage box can be sprayed with patterns and words as required.
6. Double sewage collection tank
7. Manual and electronical dual controllers
8. Effective compression volume is up to 12cbm
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Product parameters:
| Wheel Base | 4600 mm |
| Front Axle | 7000kg |
| Rear Axle | 16000kg |
| Engine | WEICHAI Diesel engine WD615.62 |
| Engine horsepower | 266HP EURO2 |
| Displacement | 9726 mL (Diesel) |
| Rated Rotation Speed | 2200 rpm |
| Engine type |
· Six cylinder in-line vertical, · super charge inner cooling, · Four-stroke, · water-cooled, · direct injection,
|
| Gearbox |
· Manuel type · HW19710, · 10-speed forward and 2 reverse
|
| Cabin |
· Howo spacious cabin, · Right hand drive; · One row and a half, · 2 Passenger allowed, · with A/C
|
| Tire | 295/80R22.5 (6 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| Fuel box | Aluminum alloy,400L |
| Garbage Truck Body | |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 4mm, Bottom 5mm |
| Garbage Container Size | 12CBM |
| Filling hopper volume | 0.73 CBM |
| sewage box volume | O.6cbm |
| Working rotation speed | 1400 r/min |
| Compaction ratio | 0.75-0.8T/m³ |
| Compacting cycle time | 24~28 s |
| Tailgate lifting time | 10~15 s |
| Tailgate lifting Angle | 85~88 ° |
| Unloading cycle time | 60~75 s |
| Oil pump displacement | 63 ml/r |
| Hydraulic oil box size | 125 L |
| System pressure | Max. 240 bar and working pressure 180~200 bar |
| PTO operation method | Pneumatic |
| Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) |
why do you choose us for garbage truck?

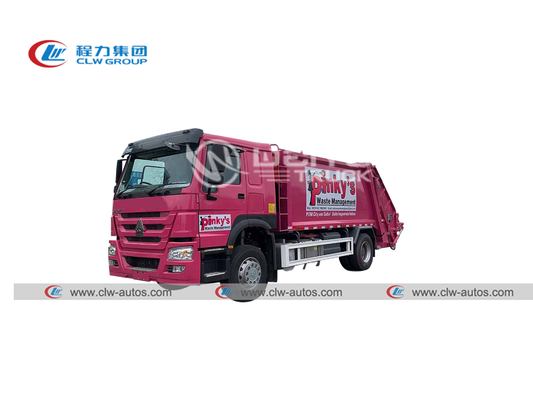

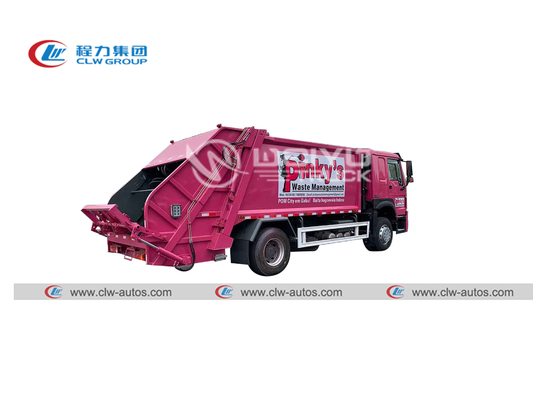

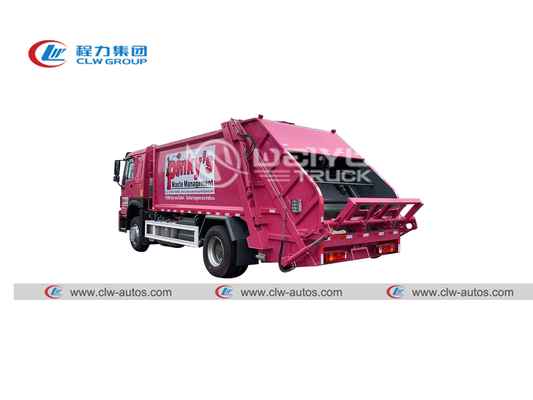

Detailed photos:
