Product Details:
Payment & Shipping Terms:
|
| Crane Brand: | CLW Brand | Max Lifting Capacity: | 10tons,10mt |
|---|---|---|---|
| Drive Model: | 6*4/10wheels | Wheelbase(mm): | 4325+1350mm |
| Color&Logo: | Customized | Boom Type: | Stright Type |
| Working Platform: | 360° Rotation (left Or Right) | Chassis Brand: | SINOTRUK HOWO |
| Working Radius: | 13m | Crane Weight: | 4000kg |
| Gearbox: | Manual | ||
| High Light: | HOWO Truck Mounted Telescopic Boom Crane,Truck Mounted Telescopic Boom Crane 336HP |
||
Product descriptions:
1. Crane Brand: Howo 6X4 right hand driving with 336hp
2. Heavy Duty Cargo box.
3. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.
4. Crane capacity of truck mounted: 10ton
5. 360° Rotation straight four arms
Product advantages:
1. It is equipped with high-power engine with comfortable seat and low fuel consumption.
2. It is equipped anti-lock braking system with good driving stability.
3. Double-sided linkage operation, one-key operation of winch, support arm and flat plate
4. Explosion-proof performance: The old chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
5. Stable and reliable: baffle plate is set on each side of the front end of the flat plate, which can prevent the vehicle from moving forward effectively.
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia, Bangladesh
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica, Saint Lucia, Surinam, Trinidad and Tobago
3. Africa: Kenya, Lesotho, Botswana, Mauritius, Seychelles, Mozambique, Namibia
4. South Africa: Uganda, Zambia, Swaziland, Tanzania, Zimbabwe, Somaliland etc.
| Items | Descriptions | Parameter |
| General | Vehicle name | Howo 6x4 Right hand drive truck mounted telescopic crane |
| Driving type | 6x4 | |
| The total mass(kg) | 24500 | |
| Curb weight(kg) | 11270 | |
| Overall dimensions (mm) | 10750x2550x3650 | |
| Cargo box size(mm) | 7200x2450x600 | |
| Engine | Fuel type | Diesel |
| Engine type | WD615.69 | |
| Engine power(kw/hp) | 336 | |
| Displacement(ml) | 5900 | |
| Emission standard | Euro 2 | |
| Chassis | Chassis model | ZZ1257N4341W |
| Steering wheel | Right hand drive | |
| Axle | 3 | |
| Front/rear axle load(kg) | 9000/16000*2 | |
| Top speed(km/h) | 85 | |
| Wheelbase (mm) | 4325+1350 | |
| Gear box | 10 Foward,2reverse,manual type | |
| suspension | 8+8/300 | |
| Approach/departure angle | 29/12 | |
|
Crane |
Crane Brand | Optional |
| Crane type | Straight four arms | |
| Max Lift weight | 10Tons | |
| Max lifting moment | 30T.m | |
| Rotation angel | 360° | |
| Crane weight | 4000kg | |
| Installation space | 1300mm |

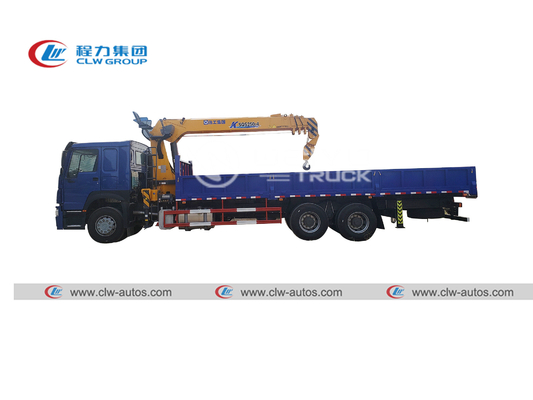

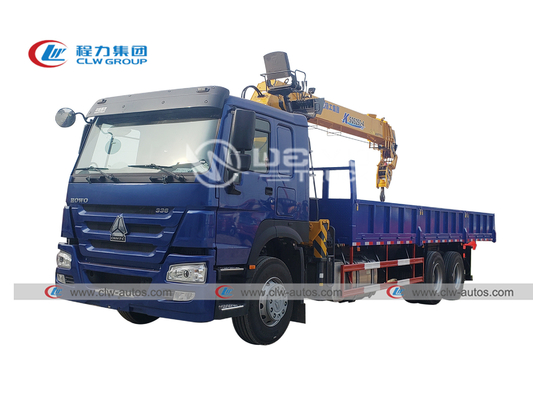

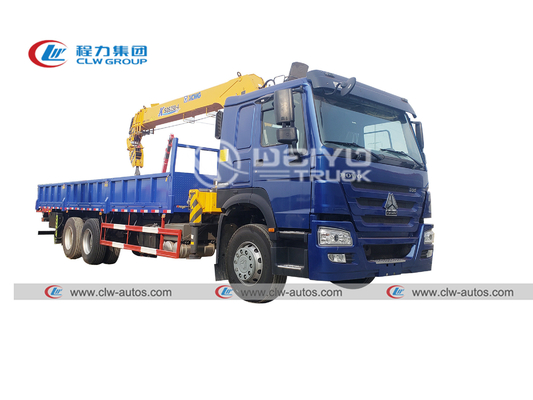

Products Show
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
