Product Details:
Payment & Shipping Terms:
|
| Garbage Compactor Truck: | 20cbm | Power: | 290hp |
|---|---|---|---|
| Generator Set Dimension: | 10500*2520*3300 (mm) | Delivery Time: | 45 Working Days |
| Warranty: | 1 Year | GVW: | 25,000KG |
| Compression Ratio: | 0.75-0.8tonnes/cbm | Hydraulic Pressure: | 18MPa |
| Fuel Tank: | 400 Liters | Tire Specification: | 315/80R22.5-18PR Tubeless Tires |
| Emission Standard: | EURO3 | Loading Cycle Time: | Not More Than 25 S |
| Engine: | Weichai Diesel Engine | ||
| High Light: | FAW 6X4 Garbage Compactor Truck,10 Wheelers Sanitation Garbage Compactor Truck |
||
FAW 6X4 10 Wheelers 20cbm Right Hand Driving Sanitation Garbage Compactor Truck With Crew Compartment
Product Descriptions:
1. FAW chassis right hand driving
2. Weichai diesel engine 290hp
3. 9 forward,1 reverse gear box
4. Side 5 bottom 5 carbon steel material
5. Filling working cycle time is about 20-25s.
6. Adding crew compartment
7. All-sealing rear loader pneumatic cover
8. Three control types:rear loader control; panel cabin control box; electrical-hydraulic operating valve
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Product advantages:
1. Waste bin adopts solid frame structure.
2. We adopts sealing treatment ways to eliminate secondary pollution.
3. It install electric-hydraulic joint control.
4. It's equipped with hydraulic lift safety circuit.
5. It install automatic and manual operating system.
7. It uses advanced electronic control system.
8. It is optional to choose various fliping mechanisms.
Product parameters:
| 20 cbm Garbage Compactor Truck | ||||
| Overall Dimension | 10500*2520*3300mm | Gross Vehicle Weight | 25000 kg | |
| Curb Weight | 14780kg | Loading Weight | 10090kg | |
| Wheel Base | 5100+1350mm | Front / Rear Axle | 7000/18000kg | |
| Cabin | Right Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio | |||
| Engine model | Dissel | |||
| Engine horsepower | 290HP, EURO3 | |||
| Max Driving Speed | 90 km/h | |||
| Gear Box | 9 Forward Gear, 1 Reverse Gear, | |||
| Tire | 315/80R22.5-18PR(10 pieces with one spare) | |||
| Garbage Bin | Capacity | 20CBM | ||
| Material | 5mm Carbon Steel for Garbage Bin Body | |||
| Design | Whole unit with Leakage Proof Design | |||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | |||
| Garbage Compact Ratio | 0.75tonnes/cbm | |||
| Control System | One control Panel on the back, One Control system in back of Cabin | |||
| Dispensing System | 1. Equipped with high quality dustbin, hydraulic system and operating system. | |||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | ||||
| 3. Sewage water collection tank to avoid any pollution during handling. | ||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | ||||
| 5. Electrical Control Panel for compacting system. | ||||
| 6. Cycling time<14~18s | ||||

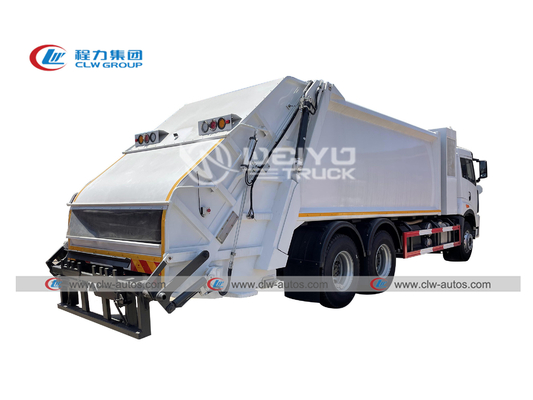

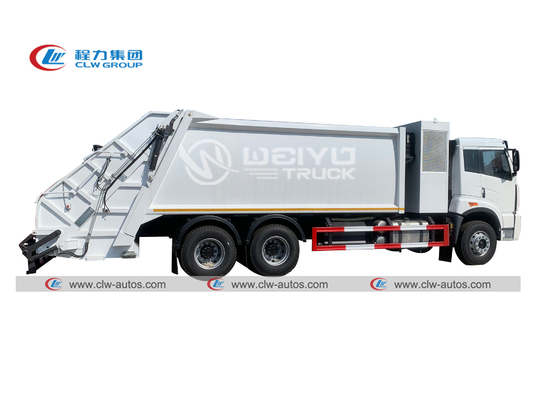

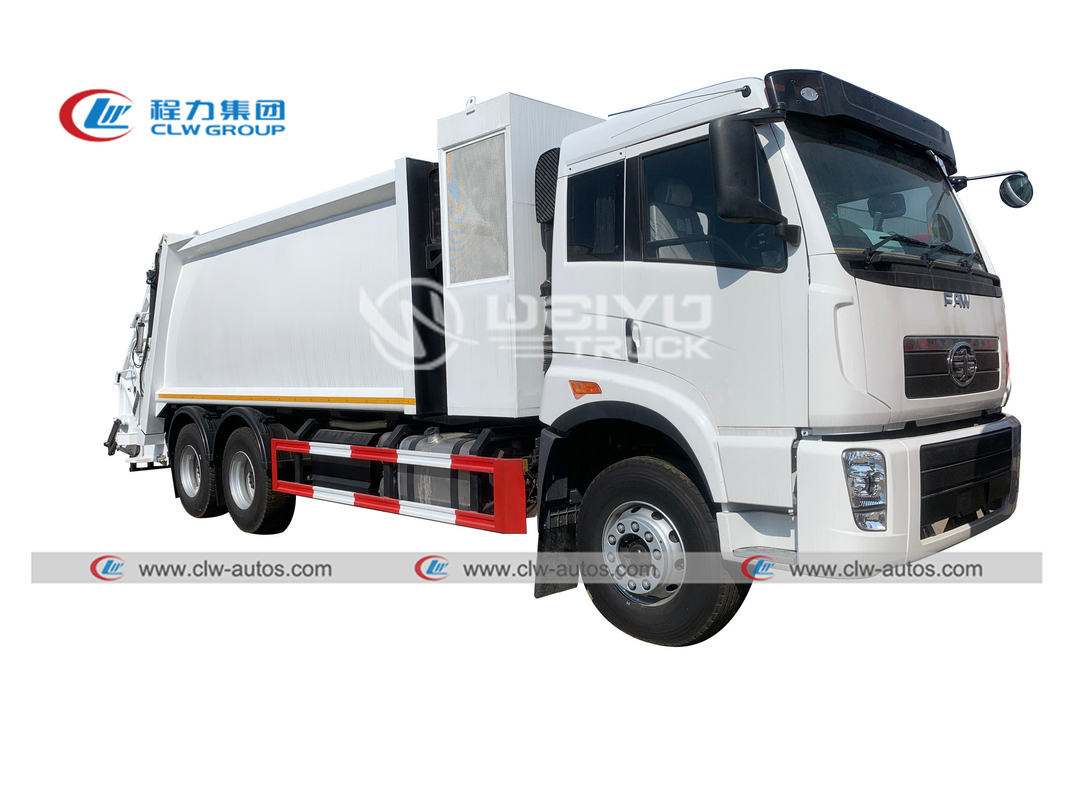

Detailed photos:
