Foton 6t Truck Crane Double H Hydraulic Outrigger Hoisting Truck 15m Lifting Height

Large Image : Foton 6t Truck Crane Double H Hydraulic Outrigger Hoisting Truck 15m Lifting Height

Product Details:

Place of Origin:	China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW202038FRE

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked packing
Delivery Time:	30-35days after received advance payments
Payment Terms:	L/C, T/T
Supply Ability:	80units/month

Contact Now

Detailed Product Description

Crane Brand:	CLW Brand	Max Lifting Capacity:	6tons,6t,6mt
Drive Model:	4*2/6wheels	Wheelbase(mm):	4800mm
Color&Logo:	Customized	Boom Type:	Stright Type
Working Platform:	360° Rotation (left Or Right)	Chassis Brand:	Foton Autman
Working Radius:	12m	Crane Weight:	4316kg
Gearbox:	Manual	Max Lifting Height:	15m
Flatbed Dimensions:	57502300600mm
Highlight:	Double H Hydraulic Outrigger Hoisting Truck , Foton 6t Truck Crane

Foton 6tons 6t Truck Crane 15m Lifting Height Double H Hydraulic Outrigger Hoisting Truck For Construction Working

Brand: sell to people who understand it
Good product: always meet the right person
Good project: there will always be someone who knows how to do it
Good service: there will always be people who appreciate it

Product descriptions:

1. Crane Brand: Howo 6X4 right hand driving with 336hp
2. Heavy Duty Cargo box.
3. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.
4. Crane capacity of truck mounted: 10ton
5. 360° Rotation straight four arms

Product descriptions:
1. Crane Brand: Foton 4X2 left hand driving with 240hp
2. Heavy Duty Cargo box.
3. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.
4. Crane capacity of truck mounted: 6ton
5. 360° all hydraulic rotation straight four arms

Product advantages:
1. It is equipped with high-power engine with comfortable seat and low fuel consumption.
2. It is equipped anti-lock braking system with good driving stability.
3. Double-sided linkage operation, one-key operation of winch, support arm and flat plate
4. Explosion-proof performance: The old chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
5. Stable and reliable: baffle plate is set on each side of the front end of the flat plate, which can prevent the vehicle from moving forward effectively.

Application Range:
Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.

Specification of Foton 6tonns crane truck

General Technical Parameters
Overall Dimension				825524602820 (mm)
Gross Vehicle Weight				15800kg
Curb Weight				8935kg
Chassis Specification
Chassis Parameters	Chassis Brand			Foton
	Cabin			Left Hand Driving, Remote front door lock, with A/C
	ABS System			Equipped
	Engine		Model	6 Cylinders
			Power	240HP
			Emission standard	EURO3
			Displacement	7.25L
			Fuel type	Diesel
	Gearbox			8 Forward & 2 Reverse Gear
	Front and Rear Axle load			5.5T/10T
	Wheel base			4800(mm)
	Overhang( Front/Rear)			1460/2350(mm)
	Angle(Approach/departure)			20/16(°)
	Brake System			Air Brake
	Steering Gear			Power Assistant
	Tire			11R22.5, 6 Pieces with 1 Spare Tire
	Maximum speed			90(km/h)
Superstructure
Flatbed	Flatbed dimensions			57502300600(mm)
Working System	Crane	Brand		Chinese Famous Brand
		Boom Type		Telescopic Boom
		Max lifting weight		6,000(kg)
		Max lifting height		15(m)
		Max working range		12(m)
		Rotation angle		360 degree full rotation

Reference photos:

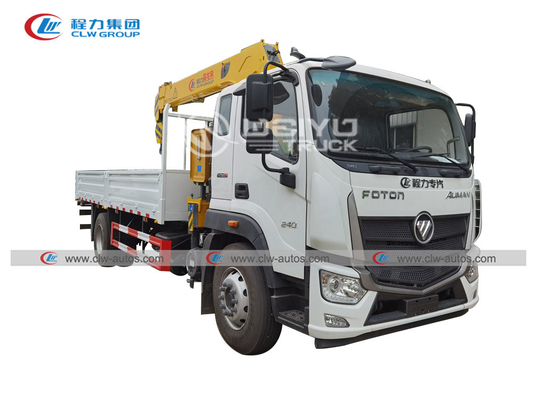

Foton 6t Truck Crane Double H Hydraulic Outrigger Hoisting Truck 15m Lifting Height 0

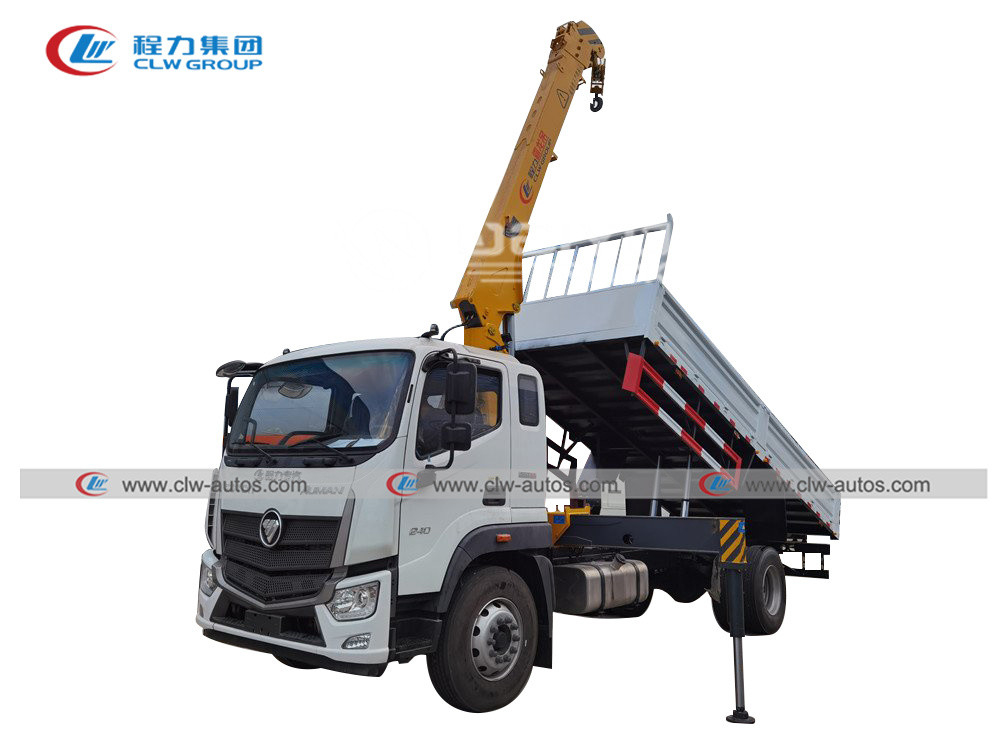

Foton 6t Truck Crane Double H Hydraulic Outrigger Hoisting Truck 15m Lifting Height 1

Company information:

Foton 6t Truck Crane Double H Hydraulic Outrigger Hoisting Truck 15m Lifting Height 2

Overseas exhibition:

Foton 6t Truck Crane Double H Hydraulic Outrigger Hoisting Truck 15m Lifting Height 3

I always believe that those who have gone through many trials and tribulations and tasted all kinds of flavors will be more vivid and bright.

Buying a truck crane is a good opportunity for you to make a fortune.
