Product Details:
Payment & Shipping Terms:
|
| Crane Brand: | CLW Brand | Max Lifting Capacity: | 12tons,12t,12mt |
|---|---|---|---|
| Drive Model: | 6*4/10wheels | Wheelbase(mm): | 4375+1400mm |
| Color&Logo: | Customized | Boom Type: | Straight 4-Arm Telescopic Boom |
| Working Platform: | 360° Rotation (left Or Right) | Chassis Brand: | Shacman H3000 |
| Working Radius: | 12.5m | Gearbox: | Fast 10 Forwards & 2 Reverse |
| Max Lifting Height: | 14.5m | Flatbed Dimensions: | 7600×2450×600mm |
| High Light: | Cummins Engine Hydraulic Crane Machine,Hydraulic Crane Machine 12tonns |
||
Brand: sell to people who understand it
Good product: always meet the right person
Good project: there will always be someone who knows how to do it
Good service: there will always be people who appreciate it
Application Range:
Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.
Product advantages:
1. Using lightweight design to improve the truck's greater carrying capacity, and save fuel, improves transportation capacity, and has a higher annual investment recovery rate
2. Using hydraulic winch technology, higher efficiency, more convenient maintenance, and more economical to complete the same work.
3. Unique 25% safe overload capacity design to make the hoisting safer and the work scope larger.
4. Importing international advanced equipment such as CNC plasma flame cutting machine, automatic welding production line, parameterized computer design center etc.

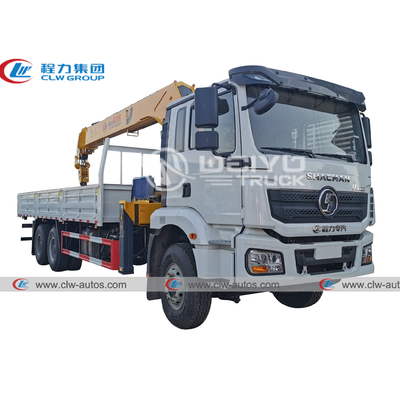

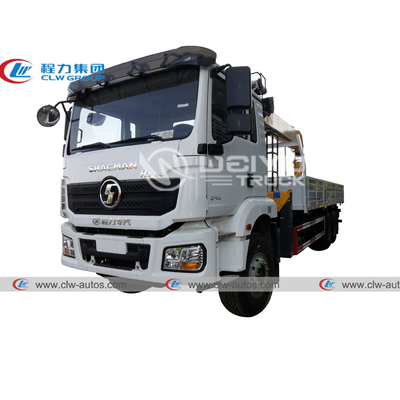

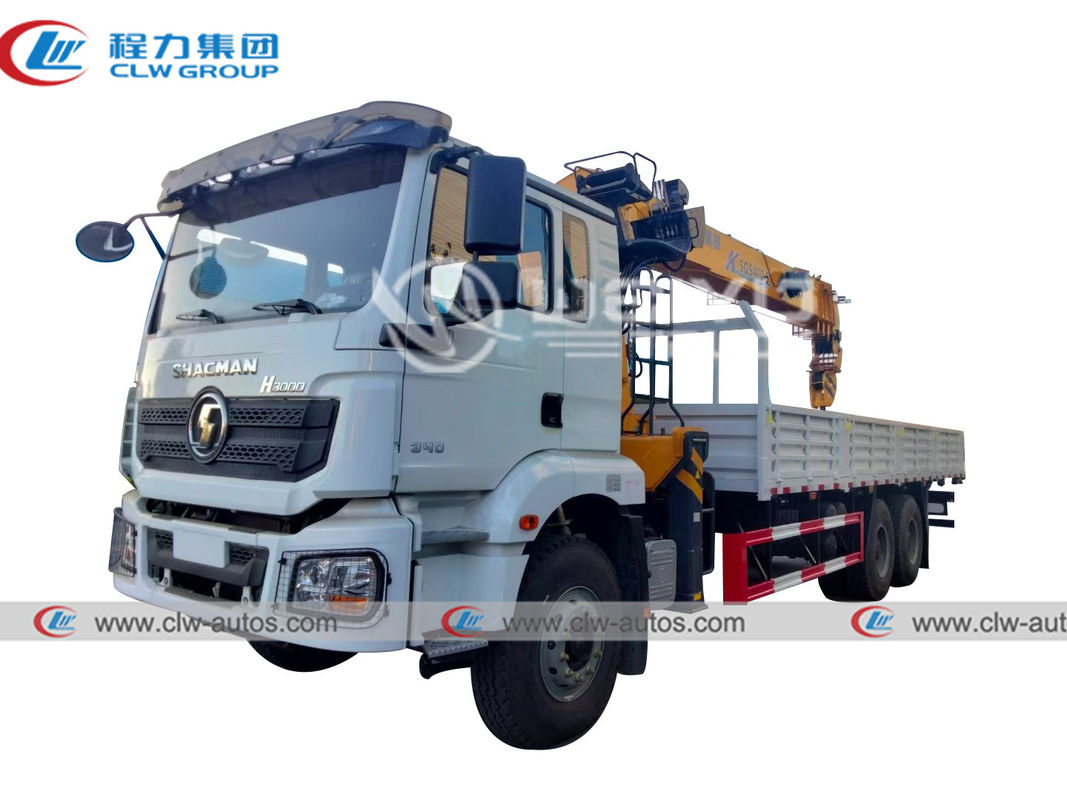

Specification of Shacman 12tonns crane truck
| General Technical Parameters | ||||
| Overall Dimension | 11900x2500x3850(mm) | |||
| Gross Vehicle Weight | 25000kg | |||
| Curb Weight | 15000kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Shacman H3000 | ||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| Engine | Model | 6 Cylinders | ||
| Power | 340HP | |||
| Emission standard | EURO3 | |||
| Displacement | 10.8L | |||
| Fuel type | Diesel | |||
| Gearbox | 10 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 7.5T/13T | |||
| Wheel base | 4375+1400(mm) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 12.00R20, 10 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 7600*2450*600(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type | Straight arm | |||
| Max lifting weight | 12,000(kg) | |||
| Max lifting height | 14.5(m) | |||
| Max working radius | 12.5(m) | |||
| Rotation angle | 360 degree full rotation | |||
Working theory:
The straight arm truck crane is installed between the cab and the carriage. When it is working, the power is taken from the gearbox in the cab to drive the hydraulic pump to rotate. Provide high-pressure oil to each element, so as to realize the movement of the straight arm crane in various directions on the truck-mounted crane.
The slewing supporting used by the truck-mounted crane has the advantages of stable rotation and low friction, etc. It is equipped with hydraulic cooling system , which ensures the safety and reliability of the crane.
The whole truck is fully controlled by hydraulic, with large working range. It can 360 degrees full hydraulic full rotation.
It adopts new type of H-type outrigger, which can adapt to slope and irregular site operations.
The main components such as boom and outrigger are all high-strength and high-quality.
Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reli
I always believe that those who have gone through many trials and tribulations and tasted all kinds of flavors will be more vivid and bright.
Buying a truck crane is a good opportunity for you to make a fortune.
