Product Details:
Payment & Shipping Terms:
|
| Crane Brand: | CLW Brand | Max Lifting Capacity: | 16tons,16t,16mt |
|---|---|---|---|
| Drive Model: | 8*4/12wheels | Wheelbase(mm): | 1800+4625+1350mm |
| Color&Logo: | Customized | Boom Type: | Straight 5-Arm Telescopic Boom |
| Working Platform: | 360° Rotation (left Or Right) | Chassis Brand: | Sinotruk Howo |
| Working Radius: | 22.4m | Gearbox: | 10 Forwards & 2 Reverse |
| Max Lifting Height: | 24.4m | Flatbed Dimensions: | 8600×2300×550mm |
| High Light: | 24.4m Lifting Height Truck Mounted Crane,Howo 8X4 Telescopic Boom Crane |
||
Brand: sell to people who understand it
Good product: always meet the right person
Good project: there will always be someone who knows how to do it
Good service: there will always be people who appreciate it
Chassis configuration:

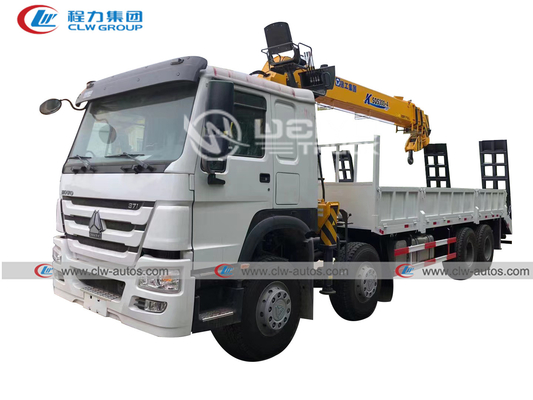

Sinotruk HOWO 8X4 truck-mounted crane chassis, truck's color can be customized
Euro2 emission standard, Weichai 371 horsepower, HW10-speed gearbox
front axle 7 tons, rear axle 16 tons, 8+5/300 Special frame, 80R22.5 tubeless tire, with air conditioner, air brake system.

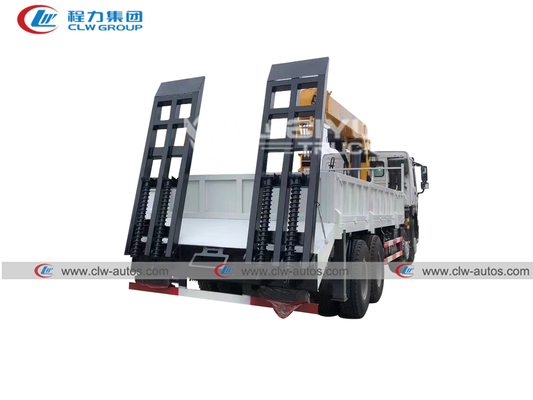

Cargo box size 8600×2300×550(mm). Howo new front-facing cabin which is comfortable and convenient.
The steering wheel can be adjusted forward and backward, up and down.
Seat with airbag shock absorption, electric glass, original air conditioner, extra-wide sleeper
The cabin is shockproof, and has excellent anti-noise effection.
Crane parameters:
CLW 16-tonnes crane is made of high-strength steel plate, five-section hexagonal boom, 360-degree full rotation, double pump operation, working radius of 22.4 meters, lifting height of 24.4 meters.
Importing hydraulic parts for seals with high-precision cold-drawn pipe, completely solve the problem of oil leakage.
Hydraulic system has a long service life, the curb weight of cranes is 6455kg, the farthest can be hoisted to 1000kg, and the outrigger span is about 2323-7023 (mm).
Specification of Howo 16tonns crane truck
| General Technical Parameters | ||||
| Overall Dimension | 11900x2500x3850(mm) | |||
| Gross Vehicle Weight | 25000kg | |||
| Curb Weight | 15000kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Sinotruk Howo | ||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| Engine | Model | 6 Cylinders | ||
| Power | 371HP | |||
| Emission standard | EURO2 | |||
| Displacement | 9.726L | |||
| Fuel type | Diesel | |||
| Gearbox | 10 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | HF7/ST16 | |||
| Wheel base | 1800+4625+1350(mm) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 80R22.5, 12 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 8600*2300*550(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type | Straight arm | |||
| Max lifting weight | 16,000(kg) | |||
| Max lifting height | 24.4(m) | |||
| Max working radius | 22.4(m) | |||
| Rotation angle | 360 degree full rotation | |||
Working theory:
The straight arm truck crane is installed between the cab and the carriage. When it is working, the power is taken from the gearbox in the cab to drive the hydraulic pump to rotate. Provide high-pressure oil to each element, so as to realize the movement of the straight arm crane in various directions on the truck-mounted crane.
The slewing supporting used by the truck-mounted crane has the advantages of stable rotation and low friction, etc. It is equipped with hydraulic cooling system , which ensures the safety and reliability of the crane.
The whole truck is fully controlled by hydraulic, with large working range. It can 360 degrees full hydraulic full rotation.
It adopts new type of H-type outrigger, which can adapt to slope and irregular site operations.
The main components such as boom and outrigger are all high-strength and high-quality.
Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reli
