HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp

Large Image : HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	CCC ISO
Model Number:	CLW202230438DIE

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	30 days after received advance payments
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Driving Model:	RHD, Right Hand Drive	Chassis Brand:	Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck
Fuel Type:	Diesel Engine	Material:	Carbon Steel Garbage Compactor Truck
Volume:	12cbm 12m3 9tonnes	After-sales Service Provided:	Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service
Truck Type:	Compactor Rear Loader Recycling Roll, Garbage Compressor, Garbage Compactor	Name:	Compactor GarbageTruck, New Refuse Compactor Trucks, Garbage Compactor Truck For Sale, Garbage Compactor Recycling Truck
Loading Capacity:	9tonnes,9t,9mt,9tons	Wheel Base:	4200mm Garbage Compactor Truck
High Light:	12cbm Sanitation Garbage Compactor Truck , HOMAN Sanitation Garbage Compactor Truck , 220hp Waste Removal Truck

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp Waste Removal Truck

Truck Chassis Main Specification:

1. Sinotruk Homan H5 Cabin, With one bed and Air conditioner.

2. Diesel Engine, YC6J220-33B, 220HP, EURO-2.

3. Steering Wheel: RHD, Right Hand Drive

4. HW95508STC Transmission/Gearbox, Manual control, 8 forward & 2 reverse

5. Front Axle, 5.5Tons Capacity, 1 pieces; Rear Axle: 13Tons

6. Fuel Tanker: 300L

7. Tire: 11.00R20

Abvantage:

1.Change the dirty appearance of the city and eliminate the secondary pollution

2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck

3. Easy Full Automatic Operation: electrical control system for loading and unloading operations

4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency

5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

Exporting countries:

1. Asia: Nepal, Pakistan, India, Indonesia etc.

2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.

3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.

4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.

Product specifications :

Cabin	Homan spacious cabin,
	Right hand drive;
	Single half row
	2 Passenger allowed,
	with A/C
Wheel Base	4200 mm
Front Axle	5500kg
Rear Axle	13000kg
Engine	YUCHAI Diesel engine YC6J220-33B
Engine horsepower	220HP EURO2
Displacement	6494 mL (Diesel)
Rated Rotation Speed	2500 rpm
Engine type	Six cylinder in-line vertical,
	super charge inner cooling,
	Four-stroke,
	water-cooled,
	direct injection,

Gearbox	Manuel type
	HW95508STC ,
	8-speed forward and 2 reverse
Tire	11.00R20 (6 pcs with one spare)
Exhaust Pipe	At front of Cabin for safety
Fuel box	Aluminum alloy,300L
Garbage Truck Body
Tanker body material	Quality high tensile Q345 carbon steel
Shape	rectangular box, arc-shaped rear
Thickness	Side 4mm, Bottom 5mm
Garbage Container Size	12CBM
Filling hopper volume	0.73 CBM
sewage box volume	0.6cbm
Working rotation speed	1400 r/min
Compaction ratio	0.75-0.8T/m³
Compacting cycle time	24~28 s
Tailgate lifting time	10~15 s
Tailgate lifting Angle	85~88 °
Unloading cycle time	60~75 s
Oil pump displacement	63 ml/r
Hydraulic oil box size	125 L
System pressure	Max. 240 bar and working pressure 180~200 bar
PTO operation method	Pneumatic
Operation and Control	Both Automatic(Electrical) and Manual (hydraulic)

Detailed photos:

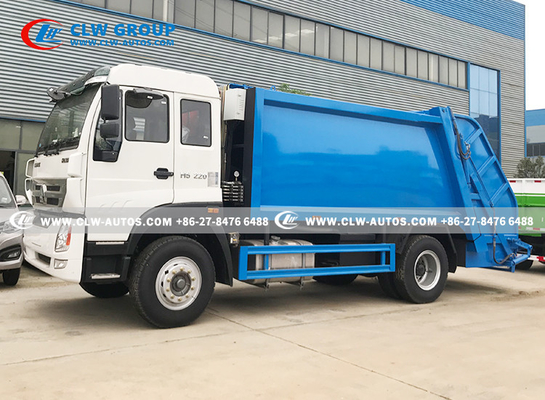

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 1

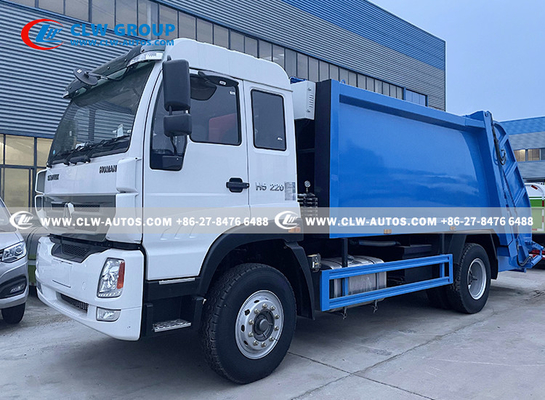

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 2

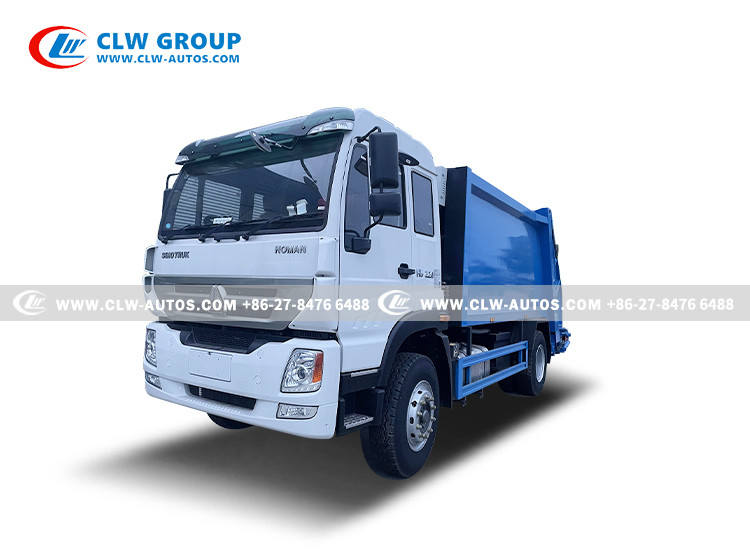

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 3

Our advantages:

Certificate: ASM, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
We can handle production of bulk order water trucks of tender and government purchase in required time
