Product Details:
Payment & Shipping Terms:
|
| Driving Model: | LHD, Left Hand Drive | Chassis Brand: | Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck |
|---|---|---|---|
| Fuel Type: | Diesel Engine | Material: | Carbon Steel Garbage Compactor Truck |
| Volume: | 14cbm 14m3 10tonnes | After-sales Service Provided: | Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service |
| Truck Type: | Compactor Rear Loader Recycling Roll, Garbage Compressor, Garbage Compactor | Name: | Compactor GarbageTruck, New Refuse Compactor Trucks, Garbage Compactor Truck For Sale, Garbage Compactor Recycling Truck |
| Loading Capacity: | 10tonnes,10t,10mt,10tons | Wheel Base: | 5000mm Garbage Compactor Truck |
| High Light: | 14m3 Garbage Collection Truck,Waste Compression Garbage Collection Truck |
||
Product description:
1. Frame structure
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Convenient operation control
9. A variety of bucket (bucket) mechanisms
10. High quality imported components
The garbage compactor truck is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic waste is to be collected.
Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder fully sealed. It can compact and dump the garbage automatically. Sewage will flow in the compartment completely to avoid re-pollute during transportation.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 25cbm.
Product specifications :
| Cabin | Driving type 4x2 | ||
| with A/C. Left/Right Hand Drive. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8350*2490*3250mm | |
| Wheel base (mm) | 5000 | ||
| Approach/Departure angle(°) | 24/16 | ||
| Weight in KGS | Tare Weight | 9850 | |
| Front axles loading capacity | 5000kg | ||
| Rear axles loading capacity | 10000kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Cummins | |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 190HP | ||
| Emission standard | Euro3 | ||
| Gearbox | 8 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Tire | 10.00R20, 6 pieces with one spare tire | ||
| Compression garbage box body system | |||
| Body Volume | 14 m3 | ||
| Material Thickness | 5 mm | ||
| Cycle Time of Filling(S) | ≤40 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤60 | ||
| Working Pressure(MPA) | 16 | ||
| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||

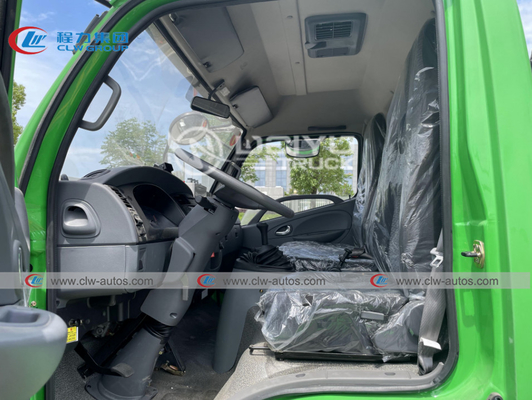

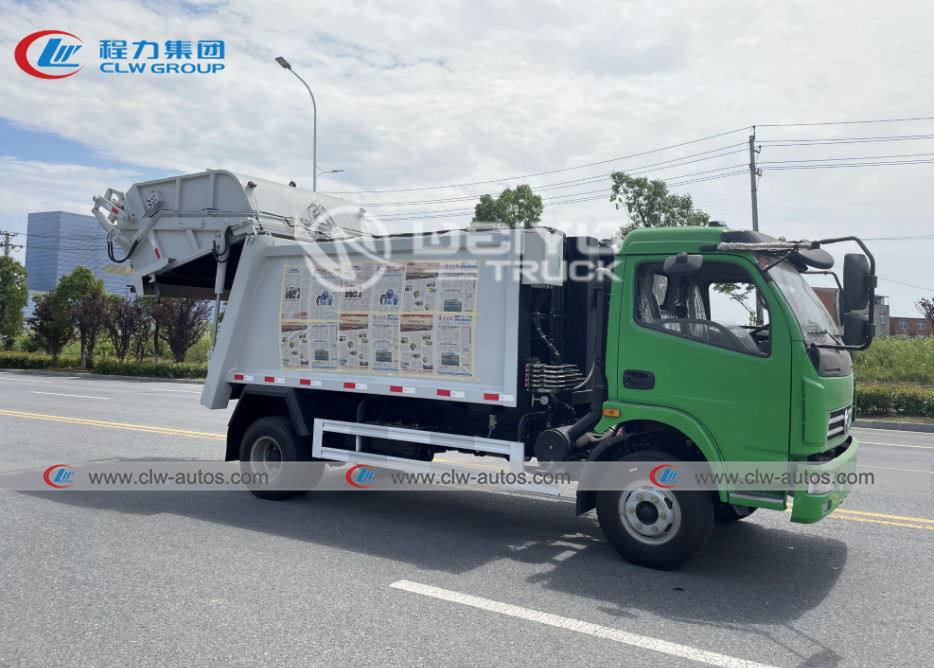

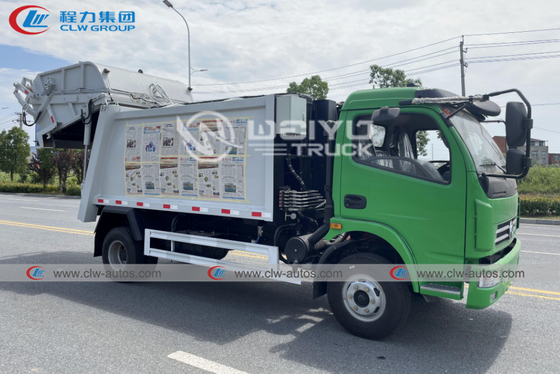

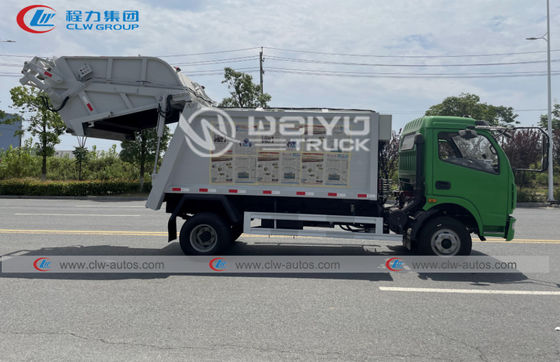

Reference photos:

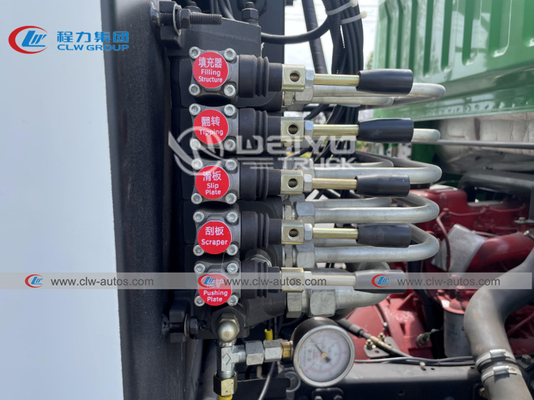

Detailed photos:
