Product Details:
Payment & Shipping Terms:
|
| Driving Model: | RHD, Right Hand Drive | Chassis Brand: | Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck |
|---|---|---|---|
| Fuel Type: | Diesel Engine | Material: | Carbon Steel Garbage Compactor Truck |
| Volume: | 18cbm 18m3 14tonnes | After-sales Service Provided: | Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service |
| Truck Type: | Compactor Rear Loader Recycling Roll, Garbage Compressor, Garbage Compactor | Name: | Compactor GarbageTruck, New Refuse Compactor Trucks, Garbage Compactor Truck For Sale, Garbage Compactor Recycling Truck |
| Loading Capacity: | 14tonnes,14t,14mt,14tons | Wheel Base: | 4625+1350mm Garbage Compactor Truck |
| High Light: | 14tons Waste Removal Truck,18m3 Sinotruk Howo Waste Removal Truck |
||
Upper body description:
1. 18cbm/18m3 tank volume
2. Carbon steel tank material
3. Side 5mm bottom 5mm thickness
4. Optional various types of garbage skip loader
Product advantages:
1. Frame structure
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Convenient operation control
9. A variety of bucket (bucket) mechanisms
10. High quality imported components
Product specifications :
| Drive type | 6X4, New condition, RHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 9850*2500*3330 | |
| Wheel base (mm) | 4625+1350 | ||
| F/R Axle-Load | 7000/16000 kgx2, | ||
| Approach/departure angle | 20/12 | ||
| Curb weight | 9600 kg | ||
| GVW | 25000 kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Sinotruk howo | |
| Type | 6 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 371hp | ||
| Emission standard | Euro2 | ||
| Gearbox | HW19710,10 forwards& 2 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 295/80R22.5, 10pcs with 1 spare | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Upper Body | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Thickness | Side 5mm, bottom 5mm | ||
| Garbage Box Volume | 18CBM/18000liters/18M3 | ||
| Remarks |
1. Color is optional 2.Customized LOGO painting as per customer reques |
||

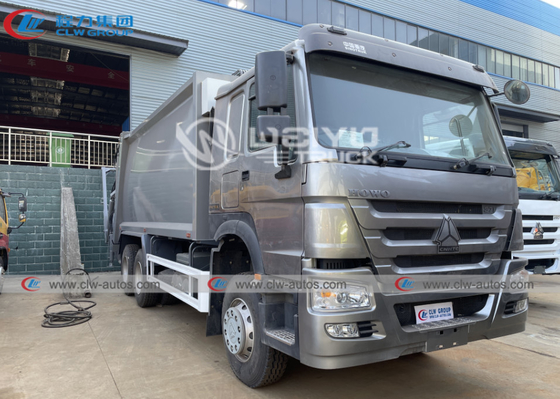

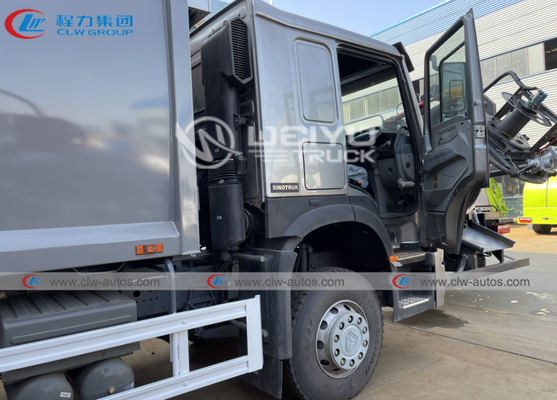

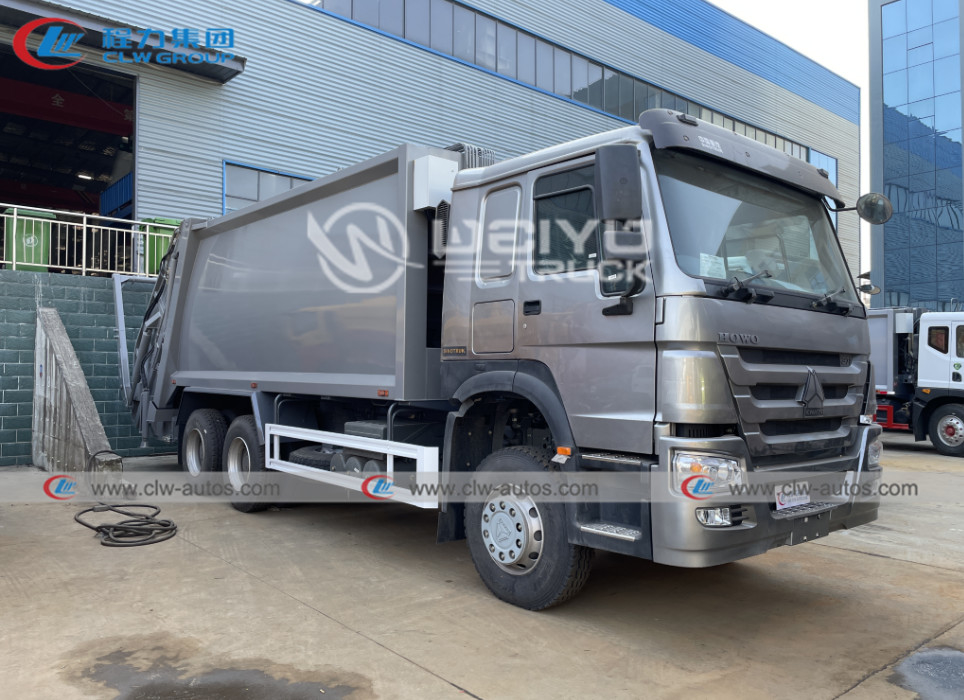

Reference photos:
1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
2. It is equipped with computer control system for loading and unloading operations.
3. One Person operate that can reduce sanitation working time and greatly improves the working environment.
4. It install computer control system and manual operation system in order to improve the vehicle using rate.

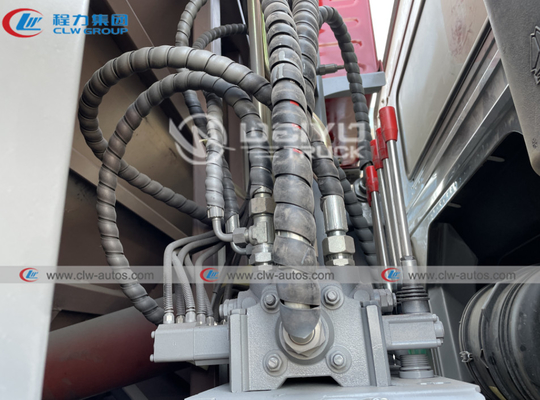

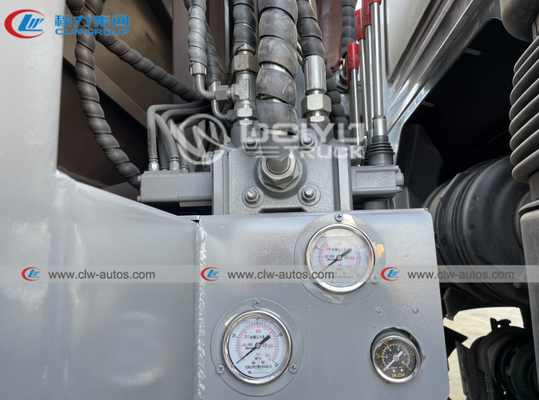

Detailed photos:
1.Hanging bucket trash hopper
2. All sealing large container
3. Swing arm container
4. Tri-angle container
