Product Details:
Payment & Shipping Terms:
|
| Feeding Height: | 1800mm | Vibrating Amplitude: | 2.0mm |
|---|---|---|---|
| Engine: | Yunnei Yn48gbz, Diesel Engine | Motor: | Hydraulic Swing Motor, Eton Brand |
| Reducer: | Eton Brand | Optional Engine: | Yuchai Ycd4p22t-130 |
| Transmission: | Hydraulic Torque Converter Transmission | Drive Type: | 4 Wheel Drive ,2 Wheel Steering. |
| Water System: | Automatic Upper Water System ,with Pump And Pipes | Mixer Drum: | 1.6CBM, 2CBM, 2.5CBM, 3.5CBM, 4.0CBM |
| High Light: | Self Loading Cement Concrete Mixer Truck,4.5CBM Cement Concrete Mixer Truck,Mobile Ready Mix Concrete Mixer Trucks |
||
1. Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which
can automatically feed, measure, mix and discharge concrete mixture.
2. Mobile Self loader Cement/Concrete Mixer Equipped with a powerful engine and 4 wheel steering,
the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go.
3. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered
in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
4. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it.
5. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time.
6. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer,
the self loader mobile cement mixer truck.
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Specifications
| Mixing drum | capacity : 4.0M3, 14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree. |
| engine paramters | YUNNEI YN48GBZ, rated power/turns: 92kw (125HP)/ 2400rpm. |
| drive system | hydraulic component( variable stroke pump) : Eton two grades gear transmission : road/off road, 4wheel drive |
| speed | low gear speed: 0-9.5km/h, high gear speed : 0-28km/h |
| cabin | front cabin with rops &fops design |
| Hydraulic sytem | 2 variable stroke pumps provide power separately to car drive and mixer. 2 constant rate pumps provide power to drum slewing , brake, water. cooling: water/air |
| joystick | all working operation designed in one joystick |
| bucket | capacity: 0.6m3 hydraulic controlled door |
| chute | adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement |
| water sytem | water pump with high pressure washing gun |
| climbing angle | 30degree with full load |
| brake | wet brake, parking brake with gear box |
| tires | off-road engineering tire 16/70-20 PR16 |
| steering | Back axle steering, all hydraulic inner steering radius: 1988mm/4130mm outer steering radius:3767 mm/6030mm |
| electric system | battery :2X12V 120Ah, provide lighting and ignition |
| fuel tank | 110L |
| hydraulic oil tank | 80L |
| carframe | all steel welding |
| weight | off load:8t, full load :18t |
| weighing system | equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc. |
| Dimensions(LxWxH) | 7500*2700*3380mm |

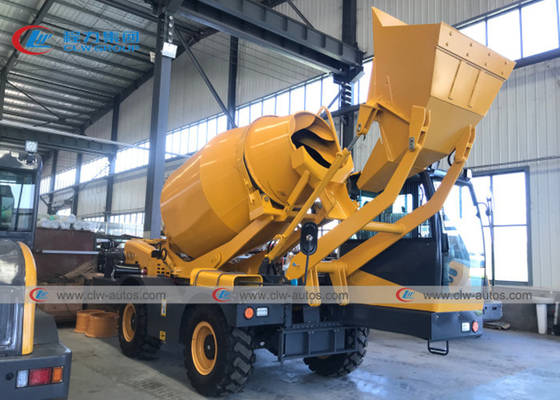

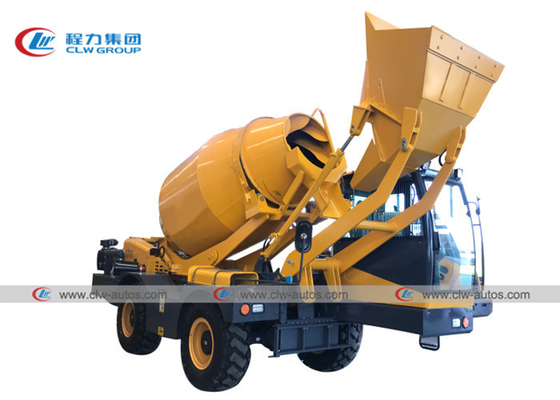

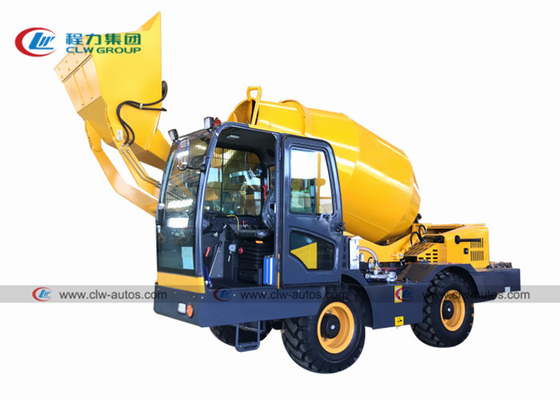

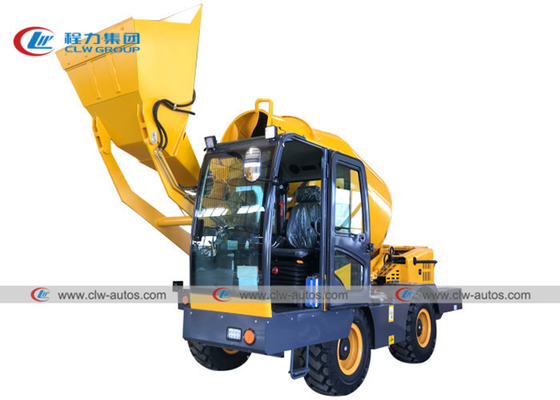

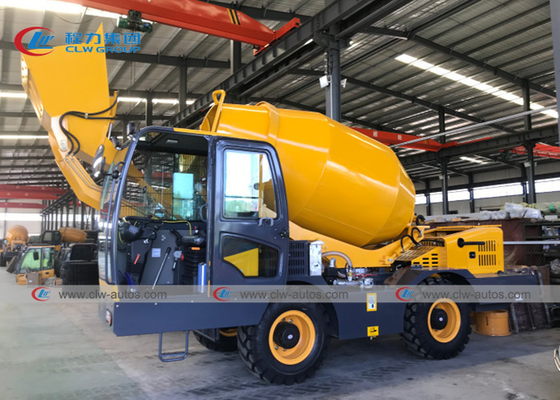

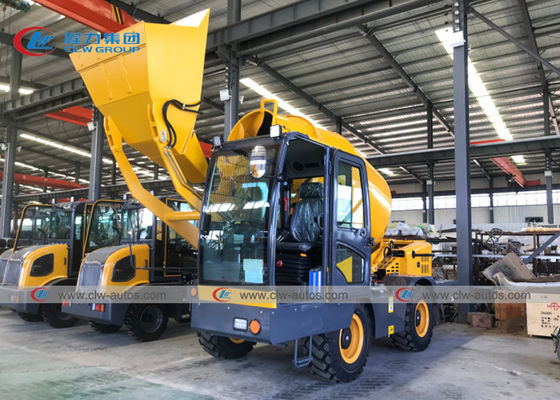

More detailed pictures for Mobile 4CBM 4.5CBM Self Loading Self-Loder Cement Concrete Mixer Truck
with 270° Degree Rotation Function:
Products Advantages:
1. self loading concrete mixer truck with compact dimensions can easily drive through narrow passages and doors.
2. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for t
he toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
