15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck
15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

Large Image :  15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,GCC,DOT
Model Number: CLW5922

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD18925-27852
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Q235 Carbon Steel Thickness: 5mm
Fuel: Diesel Driving Type: 4*2, Left/right Hand Driving
Pump: China Famous Brand/International Brand Suction Height: 7 Meters
Water Canon Range: 30 Meters Sprinkling Width: 14 Meters
Operating Video: Yes Use Manual: Yes
Front Spray And Rear Spray: Yes Warranty: One Year
LOGO: As Per Customer's Request
High Light:

15Ton Water Delivery Truck

,

Q235 Carbon Steel Water Delivery Truck

,

5mm High Pressure Can Truck

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

Chassis parameters:

1. Chassis brand: Shacman L3000 4x2 left hand driving
2. Cabin: L3000 cabin with one and half row
3. Engine: Weichai diesel engine 210hp Euro 2 emission standard
4. Front/rear loading weight: 4.8t/10t
5. Gearbox: 8 speed forward with 2 reverse, manual type


Upper body parameters:
1. Tank volume: 15cbm, 15m3, 15000liters, 15000L
2. Tank material: High Tension Steel Q235/Q345,stainless steel 304 for option
3. Sprinking Width: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump.


Features:1. The water tank truck adopts Shacman chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
2. It is equipped with the functions of adjusting sprinkler to change sprinkling directions and angles to adapt different demands.
3. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
4. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler,
5. The top duckbill nozzles can irrigate the flowers and trees on both sides.
6. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
7. With intelligent control system, drivers can complete various operations in the cab.



Condition New condition/Left hand drive/4x2
Chassis Brand Shacman
Curb weight(kg) 6300 kg
Gross weight(kg) 18,000 kg
Wheelbase(mm) 5000 mm
Dimensions(mm) 8300*2480*2900 mm
Front Loading Capacity (Ton) 6
Rear Loading Capacity (Ton) 9
Max. driving speed(km/h) 100 km/h
Clutch Reinforced diaphragm clutch
Brakes Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 10.00R20
Transmission Manual type, 6 Forwards and 1 reverse
Cabin Single row seat, Tiltable. It can accommodate two people. With air conditioner.
Engine Brand WEICHAI
Fuel type Diesel
Power(kw) 154kw
Horsepower(HP) 210 HP
Cylinder number 6
Emission standard Euro 3
Upper
Water tank Capacity(cbm/tons) 15
Tank Dimension(mm) 5000*2000*1500
Tank material Q235 carbon steel
Thickness(mm) 5
Water pump China local brand
Suction Height 7 meters
Function 1, Front Side Rear Sprinkling width≥ 14m
2, Water cannon range≥ 28m
Remarks 1. AM/FM radio
2. 2pcs water hose.
3. Color is optional

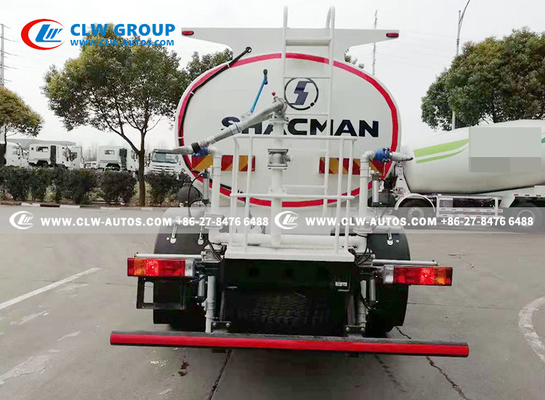

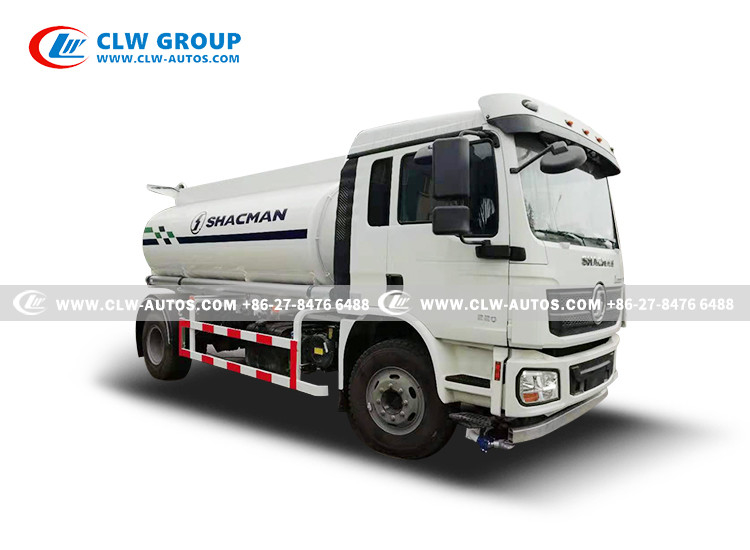

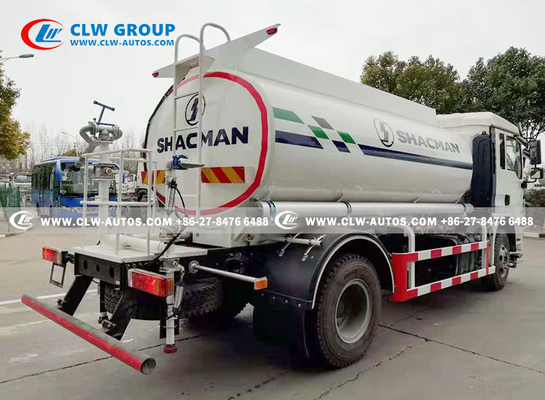

Reference photos for water bowser truck

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 0


15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 1

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 2
Water Truck Diagram:


15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 3
Working Show
15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 4

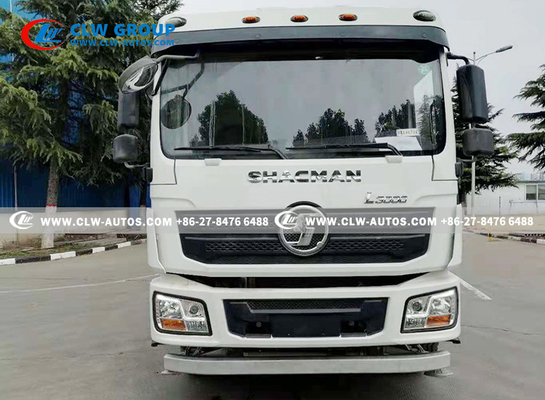

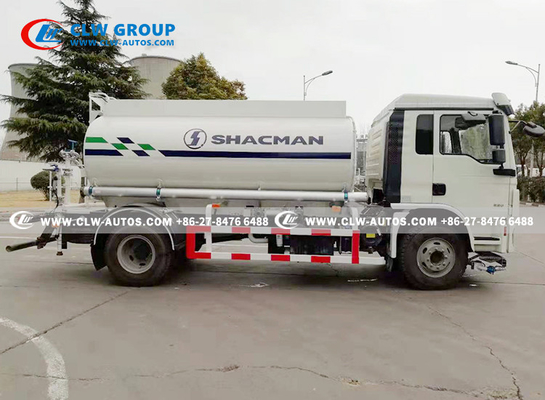

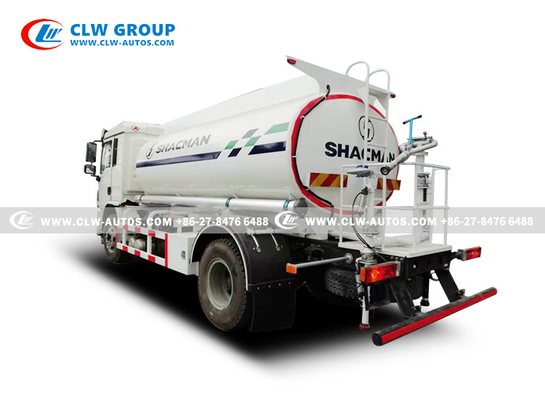

Truck Details
15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 5
15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 6



Water bowser truck production line:



15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 7



Factory overview



15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 8



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
