HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsTruck Mounted Telescopic Crane

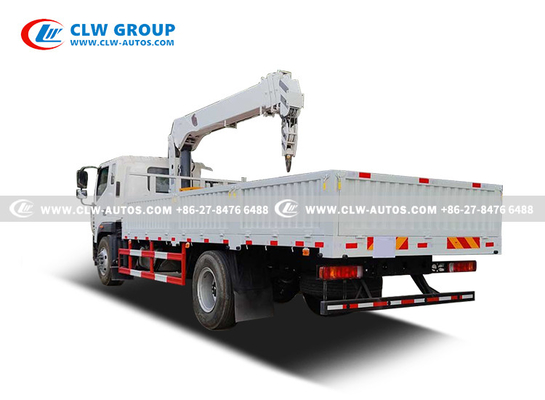

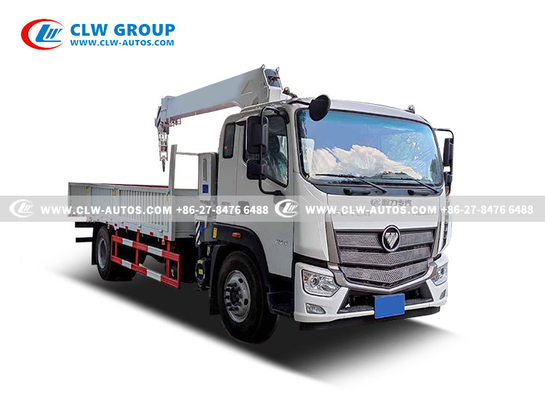

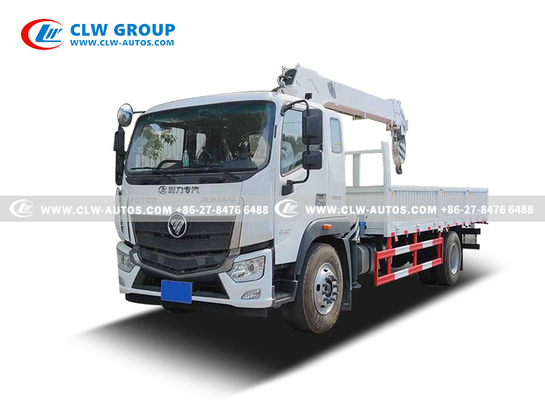

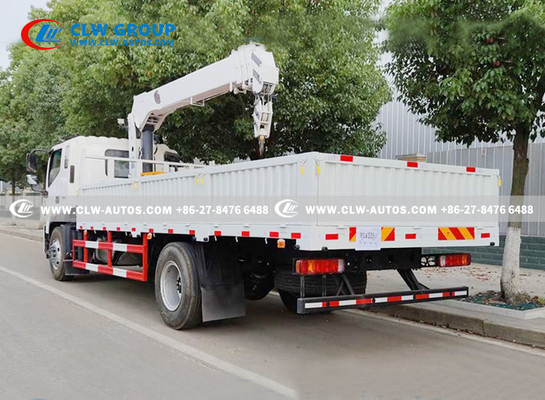

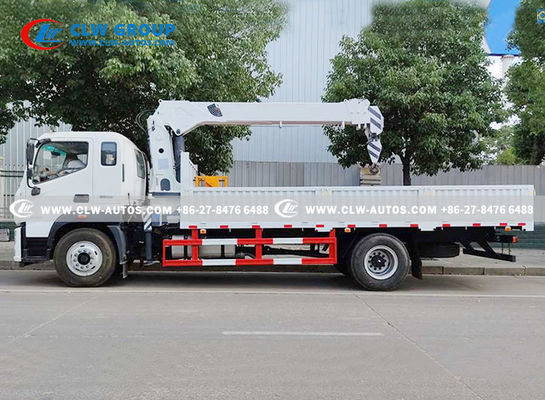

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom
8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom

Large Image :  8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom

Product Details:

Place of Origin: China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW20220809

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked packing
Delivery Time: 30-35days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 80units/month
Detailed Product Description
Crane Brand: CLW Brand Lifting Capacity: 8tons, 8tonnes,8t, 8mt
Drive Model: 4*2 Single Axle Wheelbase(mm): 5150mm
Color&Logo: Customized Boom Type: Stright Type
Working Platform: 360°turning(left Or Right) Chassis Brand: Foton Auman
Gearbox: Fast 8 Forwards & 2 Reverse Engine Brand: Yuchai, 241HP
Cargo Thickness: Side 3mm, Bottom 4mm
High Light:

Foton Single Axle Boom Truck

,

8Tons Capacity Single Axle Boom Truck

,

45FT Main Boom Lift Truck

Foton Single Axle 8T 8Tons Maximum Lifting Capacity Boom Truck With 45FT Main Boom

Application range:
Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.

Product advantages:
1. Using lightweight design to improve the truck's greater carrying capacity, and save fuel, improves transportation capacity, and has a higher annual investment recovery rate
2. Using hydraulic winch technology, higher efficiency, more convenient maintenance, and more economical to complete the same work.
3. Unique 25% safe overload capacity design to make the hoisting safer and the work scope larger.
4. Importing international advanced equipment such as CNC plasma flame cutting machine, automatic welding production line, parameterized computer design center etc.



General Technical Parameters
Overall Dimension 8905*2460*2820(mm)
Gross Vehicle Weight 17995kg
Curb Weight 12000kg
Chassis Specification
Chassis Parameters Chassis Brand Foton Auman
Cabin Left Hand Driving, Remote front door lock, with A/C
Engine Model 6 Cylinders
Power 241HP
Emission standard EURO3
Displacement 7255ml
Fuel type Diesel
Gearbox 8 Forward & 2 Reverse Gear
Front and Rear Axle load 5.5T/10T
Wheel base 5150(mm)
Brake System Air Brake
Steering Gear Power Assistant
Tire 11R22.5, 6 Pieces with 1 Spare Tire
Maximum speed 90(km/h)
Superstructure
Flatbed Flatbed dimensions 6050*2450*550(mm)
Working System Crane Brand Chinese Famous Brand: Changxing SQ8.0A4
Boom Type Straight arm
Max lifting weight 8,000(kg)
Max lifting height 15.6(m)
Max working radius 13.6(m)
Rotation angle 360 degree full rotation

Working theory:
The straight arm truck crane is installed between the cab and the carriage. When it is working, the power is taken from the gearbox in the cab to drive the hydraulic pump to rotate. Provide high-pressure oil to each element, so as to realize the movement of the straight arm crane in various directions on the truck-mounted crane.

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 0



The slewing supporting used by the truck-mounted crane has the advantages of stable rotation and low friction, etc. It is equipped with hydraulic cooling system , which ensures the safety and reliability of the crane.

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 1

The whole truck is fully controlled by hydraulic, with large working range. It can 360 degrees full hydraulic full rotation.
It adopts new type of H-type outrigger, which can adapt to slope and irregular site operations.
The main components such as boom and outrigger are all high-strength and high-quality.
Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reliable.

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom 2



Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.

2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 120tons, we will give our procurement suggestion to our client as per their requirements.



Q2: What is your production standard of your Truck mounted crane products?

A: China GB standard.



Q3: Can we adopts International brand crane for this truck mounted crane?

A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane, we all adopts CLW brand crane if request lifting capacity is above 30tons,



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
