Product Details:
Payment & Shipping Terms:
|
| Box Material: | Carbon Steel Q235B | Truck Brand: | Dongfeng Duolicar D9 |
|---|---|---|---|
| Tank Volume: | 16-18cbm | Truck Engine: | Cummins |
| Gearbox: | Fast 8 Forward & 1 Reverse | Tire: | 9.00-20, 10.00-20, 10.00R20, 11.00-20, 11.00R20 |
| Axle: | 5Ton Front Axle & 10Ton Rear Axle | Garbage Truck Type: | Compactor |
| High Light: | Rear Tipping Compressed Garbage Truck,Shacman Compressed Garbage Truck 14cbm,Q235B Garbage Compactor Truck |
||
Shacman 14cbm Customized Rear Tipping Device Compressed Garbage Truck
1. Separated Truck & Container, One Truck Can Carry Many Garbage Containers in Short Time.
2. Design for Heavy Populated Area, including School, Office Area, Street, Park, Residentail Area, etc
3. One Man & One Key Control for both container loading & Garbage Discharging.
4. Large Volume Garbage Container, up to 5CBM, 8CBM, 10CBM, 12CBM, 14CBM, 16CBM, 18CBM.
5. Garbage Box is made of strong carbon steel material, can last for long time.
6. Garbage Box is designed rust resistance & easy to clean, can take High Temperature & Humdity.
Product Specifictions
1. Rear loaders have an opening into a trough or hopper at the rear that a waste collector can throw waste bags or empty the contents of bins into. Often in many areas they have a lifting mechanism to automatically empty large carts without the operator having to lift the waste by hand.
2. Another popular system for the rear loader is a rear load container specially built to fit a groove in the truck. The truck will have a chain or cable system for upending the container. The waste will then slide into the hopper of the truck.
3. The modern rear loader usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
| ITEM | UNIT | PARAMETER | ||
| Vehicle | Garbage compactor truck | |||
| Overall dimensions | mm | 8760×2500×3250 | ||
| Tank volume | m3 | 14 | ||
| GVW | kg | Appro×16000 | ||
| Curb weight | Appro×9000 | |||
| Payload | Appro×7000 | |||
| Wheel base | mm | 4500 | ||
| Suspension | 1250/2610 | |||
| F/R track base | 1940/1860 | |||
| Approach/departure angle | ° | 23/15 | ||
| Max speed | km/h | 95 | ||
| Axle Load | kg | 4800/10000 | ||
| Tire specification | 10.00R20 / 7 Units | Number of axles | 2 | |
| Engine model | WP6.210E32 | Diesel, 6 Cylinder, direct line, water cooling | ||
| Engine performance | ml/kw/hp | 6750/154/210 | ||
| Steering | Power | Transmission | Manual 8 speed, 8F&1R | |
| Cab passenger | 3 | Electric System | 24V | |
| Tank material | Carbon steel | |||
| Standard configuration |
1. Hydraulic system powered by trucks chassis PTO 2. Body with rear lifting system to handle garbage containers capacity 120L, 240L. 3. Body sides and roof built from high tensile sheets thickness 4mm. 4. Box platform built with high tensile sheets thickness 5 mm, hopper floor built with high tensile sheets thickness 5 mm. 5. Body painted 1 coat anti-corrosion primer and 2 coats synthetic paint |
|||

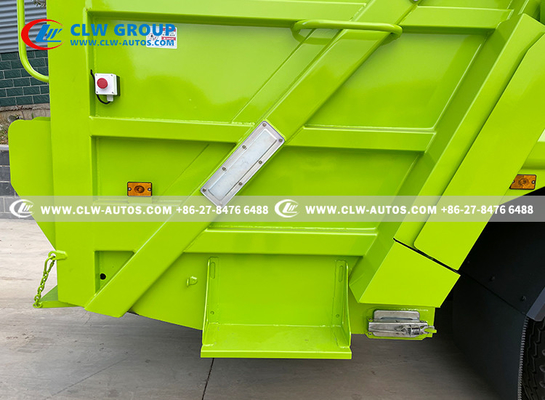

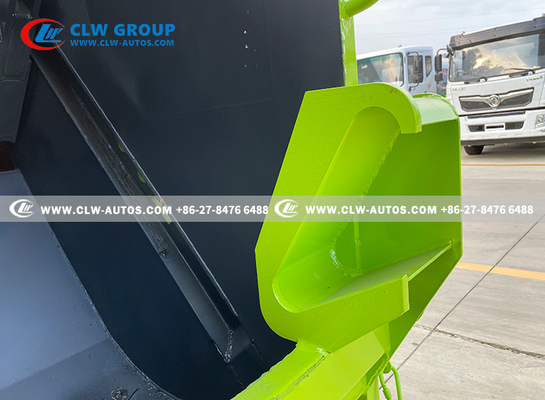

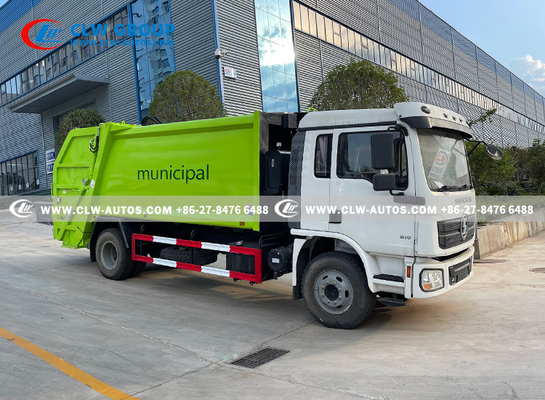

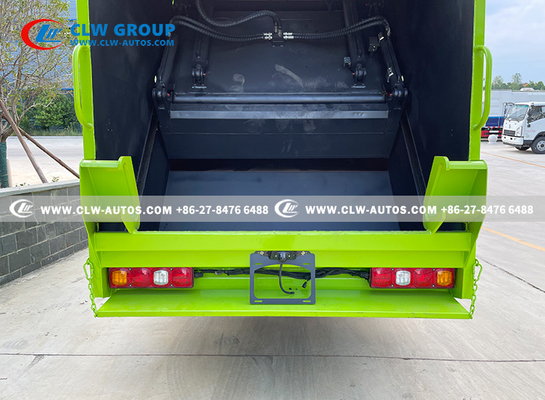

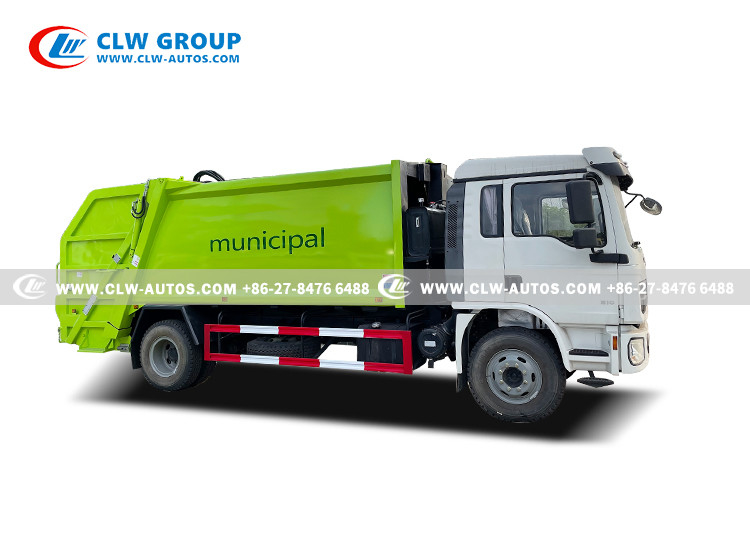

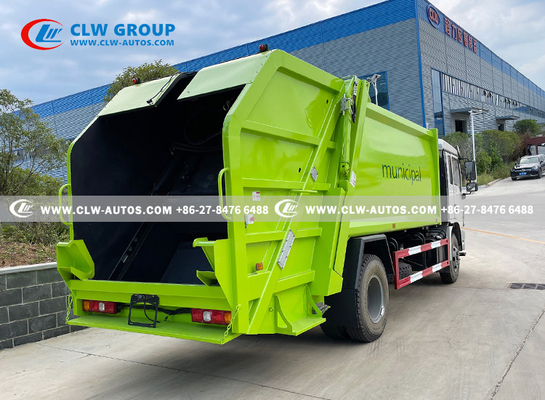

Reference photos
Truck diagram
Main parts
Factory overview
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
