Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Chassis Brand: | Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc. |
|---|---|---|---|
| Engine Brand: | Wd615.69, 336HP | Gearbox: | Fast, 10forwards And 2reverse |
| Crane Brand: | SANY, XCMG, CHENGLI, Changxing, Zoomlion Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Max. Lifting Load: | 7tons/7000kgs | Boom Type: | Straight 4-Arm Telescopic Boom |
| Cargo Material: | Q235 Carbon Steel | Cargo Thickness: | Side 2mm, Bottom 3mm |
| Feature: | Truck Crane | Application: | Construction,Truck Crane |
| Color: | DEPENDS | Origin: | 100% China |
| Warranty: | 1 Year | ||
| High Light: | Foton Hydraulic Crane Truck,240HP Hydraulic Crane Truck,6.3ton Foton Hoisting Crane |
||
Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
Truck mounted crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons 100tons 120tons 150tons Truck mounted crane
4) According to crane type,there are telescopic and knuckle Truck mounted crane.
1. The operating cost is low. It also provides loading, transportation and unloading. The price of a 6X4 truck-mounted crane equipped with a 12-ton crane is much lower than the total price of a 6X4 truck + a 12-ton truck crane. If In addition to the cost of diesel fuel, daily maintenance, hiring drivers, insurance, and handling procedures, the cost advantage of truck cranes is more obvious. A 6.3-ton truck-mounted crane is about the same price as an 8-ton crane. Driving a crane requires a special operation certificate in addition to the truck, transport certificate, and employment certificate, while driving a truck-mounted crane does not require such an operation certificate.
2. The truck-mounted crane is widely used. Compared with the partner transportation of ordinary trucks and cranes, the truck-mounted crane has many advantages in business. It is not limited by time. In many places in big cities, trucks are not allowed to drive during the day, so goods are only transported at night. The charges for cranes at night are very high, and in this case, the advantages of truck-mounted cranes are obvious. The truck-mounted crane is especially required to transport the utility pole, because the truck-mounted crane can not only hoist and transport the utility pole, but also erect the utility pole to help the installation after arriving at the construction site, which is very convenient.
4. It is convenient and fast. The largest model of the truck-mounted crane is only the 8X4 model, that is, the first four and the last eight models. This model is generally equipped with a 14-ton crane and 30 tons of goods. The length of the whole vehicle is only 13 meters and the width It is only 2.5 meters, but for a truck crane, a casual truck crane is more than 20 meters, and the turning radius is too large, which is not easy to operate.
5. The entry threshold is low, and the smallest car model even has a blue card on-board crane,It is very popular in third- and fourth-tier markets and rural areas, which can save manpower for handling.
6. It is also the most important point, which broadens the scope of business. The truck-mounted crane is a transport vehicle that combines a crane with a cargo box. It can be engaged in the business of pulling goods or lifting things, and even with a ladder, it can also be used as a The use of wrecker trucks, coupled with hydraulic pressure, can also be used as dump trucks, which fully achieves multi-purpose use in one truck, maximizing your business type, rather than a single one that can only be used for transportation.
Feature
-- Crane: Palfinger Brand
-- Landing leg: Hydraulic control, top quality, easy for operation.
-- Storage box: High quality carbon steel Q235
-- Truck chassis: Foton Rowor
Specification
| General Technical Parameters | ||||
| Overall Dimension | 8905×2460×2820(mm) | |||
| Gross Vehicle Weight | 17995kg | |||
| Curb Weight | 12000kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Foton Auman | ||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| Engine | Model | 6 Cylinders | ||
| Power | 240HP | |||
| Emission standard | EURO3 | |||
| Displacement | 7255ml | |||
| Fuel type | Diesel | |||
| Gearbox | 8 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 5.5T/10T | |||
| Wheel base | 5150(mm) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 11R22.5, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 6050×2450×550(mm) | ||
| Working System | Crane | Brand | palfinger,clw | |
| Boom Type | Straight arm | |||
| Max lifting weight | 5,000/6,300 (kg) | |||
| Max lifting height | 13(m) | |||
| Max working radius | 11(m) | |||
| Rotation angle | 360 degree full rotation | |||

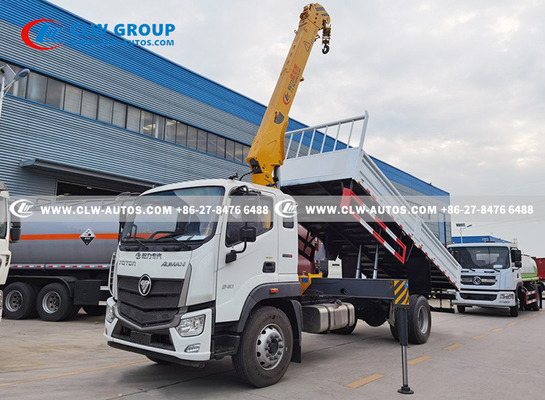

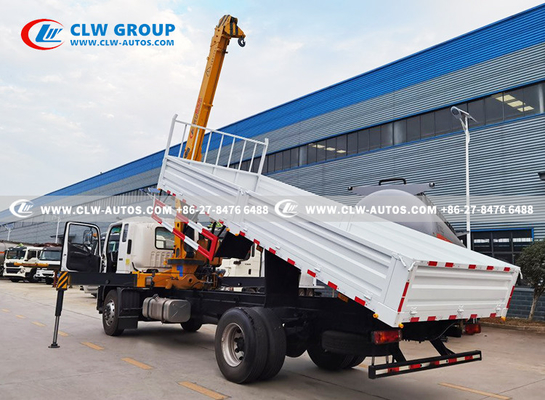

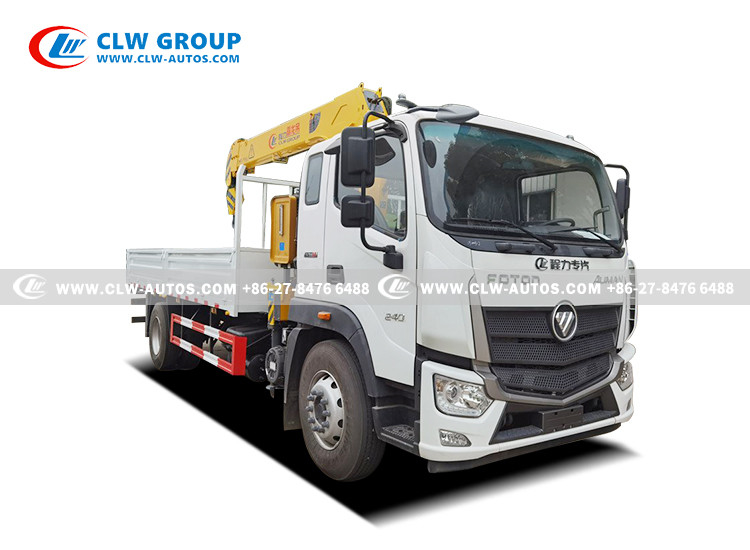

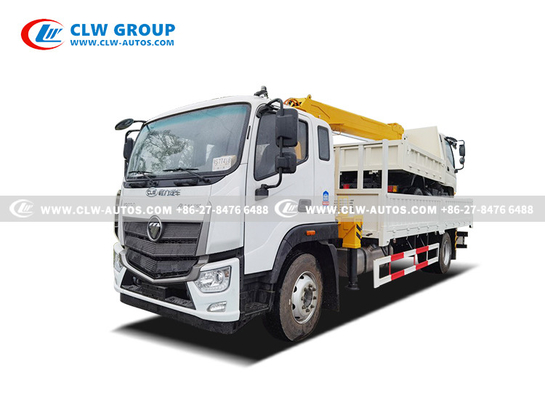

Reference Photos
Crane details and specification:
Working Situation
Factory overview
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
