8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck
8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

Large Image :  8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,
Model Number: CLW598D

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Brand: FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW Material: Carbon Steel
Thickness: Side 3 Mm And Bottom 4 Mm Wheel Base: 3800mm
Horsepower: 140HP Hydraulic Pump: Chinese Famous Brand
Control System: Siemens Brand Operate System. Warranty: 1 Year
High Light:

Foton Compressed Garbage Truck

,

8CBM Compressed Garbage Truck

,

140HP Dirt Debris Collection Truck

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

1. Rear loaders have an opening into a trough or hopper at the rear that a waste collector can throw waste bags or empty the contents of bins into. Often in many areas they have a lifting mechanism to automatically empty large carts without the operator having to lift the waste by hand.

2. Another popular system for the rear loader is a rear load container specially built to fit a groove in the truck. The truck will have a chain or cable system for upending the container. The waste will then slide into the hopper of the truck.

3. The modern rear loader usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.



Key Features:

---- Foton chassis, perfect performance
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 22 Cublic Meter.
---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Specification

8cbm 8000Liters Foton compactor garbage truck
Vehicle name Compactor Garbage truck Chassis: FOTON Aumark
Outline size(L×W×H) (mm) 7580 *2370*2850 Empty mass(Kg): 5700
Full mass(kg) 7584 Emission standard Euro 3
Engine Information
Model ISF3.8s3154 Type Diesel engine
Power 156HP Brand CUMMINS
Chassis Information
Wheelbase(mm): 3800 Axle load(kg) F/R 2850/6000
Tire 7.50R16 Max speed (km/h): 95
Front suspension(mm) 1165 Rear suspension(mm) 2460
Front track(mm) 1685 Rear track(mm) 1610
Approach angel(°) 22 Departure angle(°) 14
Steering Power steering Brake Air brake
Cabin Straight head 1 row, allow 3 persons
Special function
Bucket capacity(L) 8000 Filling work cycle time (s) 15-20

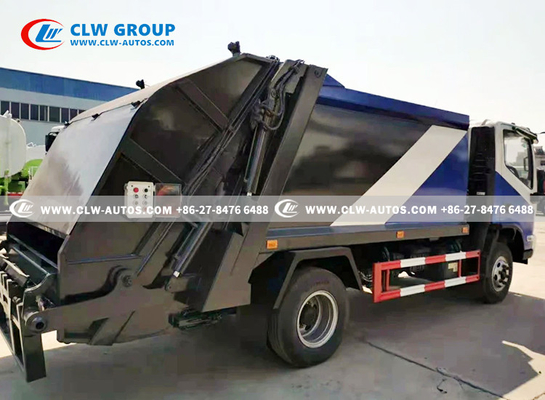

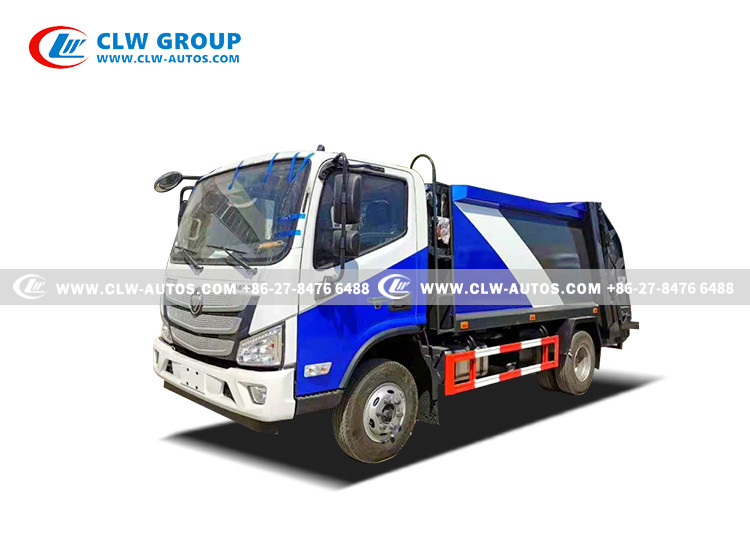

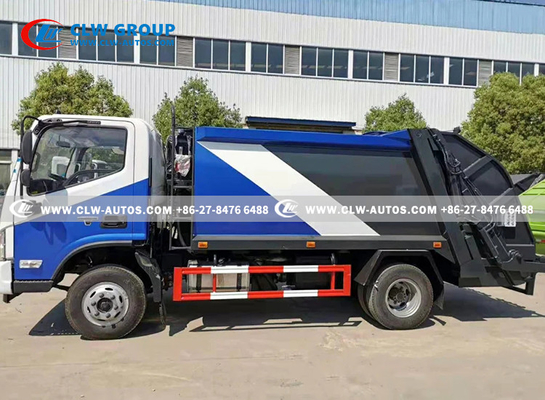

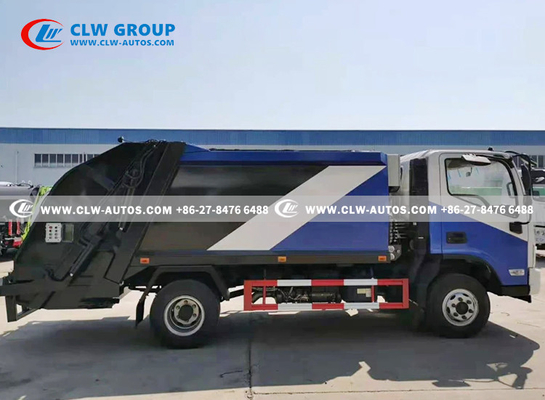

Reference photos

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 0

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 1



Compactor Carbage Truck Production Process



8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 2

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck 3


Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
