FAW JK6 20CBM Garbage Compactor Truck with 260HP Engine and Rear-Loading Compression System for Efficient Waste Collection

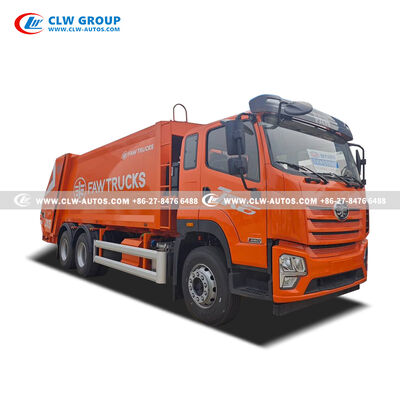

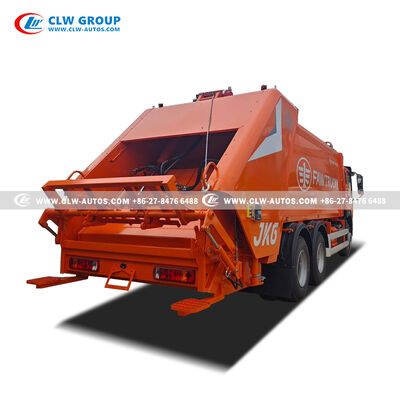

Large Image : FAW JK6 20CBM Garbage Compactor Truck with 260HP Engine and Rear-Loading Compression System for Efficient Waste Collection

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW
Certification:	CCC,ISO,
Model Number:	clwghtrhjtyyt

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked packing,Ro-ro,Bulk Ship
Delivery Time:	20-30 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500Unit Per Month

Contact Now

Detailed Product Description

Highlight:

20CBM Garbage Compactor Truck

260HP Refuse Collection Truck

Rear-Loading Compression Waste Compactor Truck

FAW JK6 20CBM Compactor Garbage Truck

Efficient Compaction, Powerful Collection – The Preferred Partner for Urban Sanitation

Product Overview

The FAW JK6 20CBM Compactor Garbage Truck is a heavy-duty waste collection vehicle engineered for high-intensity municipal sanitation operations. Designed to handle demanding environments with superior efficiency and reliability.

Key Features & Specifications

260HP powerful engine for robust performance
20-cubic-meter large-capacity compaction body
Rear-loading compression system for optimal waste handling
Integrated winch for heavy refuse management
Efficient processing of various domestic waste types

Application Areas

Ideal for municipal sanitation services, community cleaning operations, industrial parks, and other demanding waste management environments requiring high-capacity collection and compaction capabilities.

Technical Specifications

Truck Chassis
Condition	New condition/Left hand drive/6x4
Chassis	Brand	Faw
	Gross Vehicle Weight (kg)	25000
	Curb weight(kg)	8530
	Loading Weight (kg)	16470
	Wheelbase(mm)	4350 +1350mm
	Dimensions(mm)	11000X2500X3420 mm
	Front/Rear Axle loading(kg)	6700kg/11500kg
	Wheel track (front/rear) (mm)	1745/1630mm
	Front/Rear overhang(mm)	1412/2516mm
	Approach/Departure angle(°)	21/13
	Clutch	Ф430
	Rear Axle Speed Ratio	5.143
	Max.driving speed	102 km/h
	Frame	27080(7+5)
Tire	12R22.5
Fuel box	400L aluminum alloy fuel tank
Transmission	Manual type, 8Forwards and 2 reverse
Cab	Features include: middle seat and air spring seats; cruise control; power windows; multi-function steering wheel; central locking; and ABS.
Engine	Brand	XiChai
	Model	CA6DLD-26E5
	Fuel type	Diesel
	Displacement(ml)	6.6L
	Power(kw)	195kw
	Horsepower(HP)	260HP
	Max. Torque(N.m)	1050
	Cylinder number	in-line 6-cylinder
	Emission standard	Euro 5
Superstructure Specification
Material	Carbon steel Q345
Tanker volume	20 cbm
Thickness of Tanker	5mm side 6mm bottom
Filling times	8-10s
Discharge type	Rear Discharging
Time for Discharging	30-40S
Hydraulic pressure	20Mpa
Controlling way	Manualy and electrical control
Optional parts	With winch
Optional parts	orange color chassis
