SINOTRUK HOWO 12 Cubic Meter Concrete Mixer Truck with Q345 Manganese Steel Drum

Name: SINOTRUK HOWO 12 Cubic Meter Concrete Mixer Truck with Q345 Manganese Steel Drum
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 38,000.00 USD
Availability: InStock

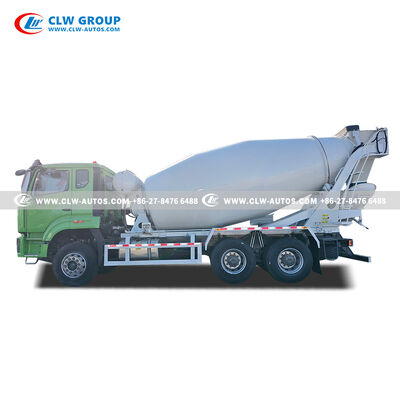

Large Image : SINOTRUK HOWO 12 Cubic Meter Concrete Mixer Truck with Q345 Manganese Steel Drum

Product Details:

Contact Now

Detailed Product Description

Highlight:

12 Cubic Meter Concrete Mixer Truck

SINOTRUK HOWO Concrete Mixer Truck

Q345 Manganese Steel Drum Ready Mix Concrete Mixer Truck

SINOTRUK HOWO 12 Cubic Meter Concrete Mixer Truck

This heavy-duty concrete mixer truck delivers uncompromising performance with a powerful drivetrain, durable 12-cubic-meter mixing drum, and premium hydraulic system. Engineered for maximum productivity, it minimizes downtime while providing superior payload capacity and operator comfort.

Key Features & Specifications

Chassis and Power System

Platform: Heavy-duty SINOTRUK HOWO 6x4 chassis for exceptional resilience
Engine: High-output 371 horsepower WD615.47 diesel engine
Driveline: 10-speed transmission with heavy-duty axles (9.5T front / 2x16T rear)

Mixing Drum System

Drum Construction: 12m³ capacity made from premium Q345 manganese steel
Enhanced Durability: Reinforced blades and wear plates with anti-rebound mechanism
Continuous Mixing: Maintains concrete consistency from plant to pour site

Hydraulic and Drive Components

Hydraulic System: Italian-made components for reliable, high-torque operation
Optimized Drive: Heavy-duty reducer and professionally mounted hydraulic pump

Operator Convenience Features

Water Supply: 400-liter stainless steel tank with pump and hose
Precision Placement: Extendable discharge chute for confined areas
Ergonomic Controls: Dual-lever control system for safe, precise operation
Comfortable Cab: Sleeper berth, air conditioning, and air-suspension seat

Technical Specifications

Overall Dimensions

Dimensions (LxWxH)	8500 x 2498 x 3650 mm
Wheel Configuration	6x4 drive
Wheelbase	3800+1350 mm
GVW	25,000 kg
Payload Capacity	Approximately 12,350 kg

Mixing Drum Details

Drum Full Capacity	12 CBM
Drum Size	Diameter: ⌀2300mm Length: 4730mm
Material	Q345 High quality wear-resistance steel
Thickness	Drum body: 5mm, Shell head: 6mm
Feeding Speed	≥2.8 m³/min
Discharging Speed	≥2 m³/min
Discharging Residual	≤0.5%
Mixing Tank Rotating Speed	0-17 r/min

Drive System Components

Hydraulic Pump	Interpump, Italian Brand
Hydraulic Motor	Interpump, Italian Brand
Reducer	PMP Reducer, Italian Brand
Radiator	KLMAKE 18L, China local brand

Water Supply System

Water Tank Capacity	400L
Water Supply Type	Pneumatic water supply

Primary Applications

Building & Industrial Construction: Foundations, slabs, and structural elements
Transportation Infrastructure: Road paving, highways, and airport runways
Civil Engineering Projects: Bridges, dams, and retaining walls
Urban Development: Multi-story residential and commercial buildings

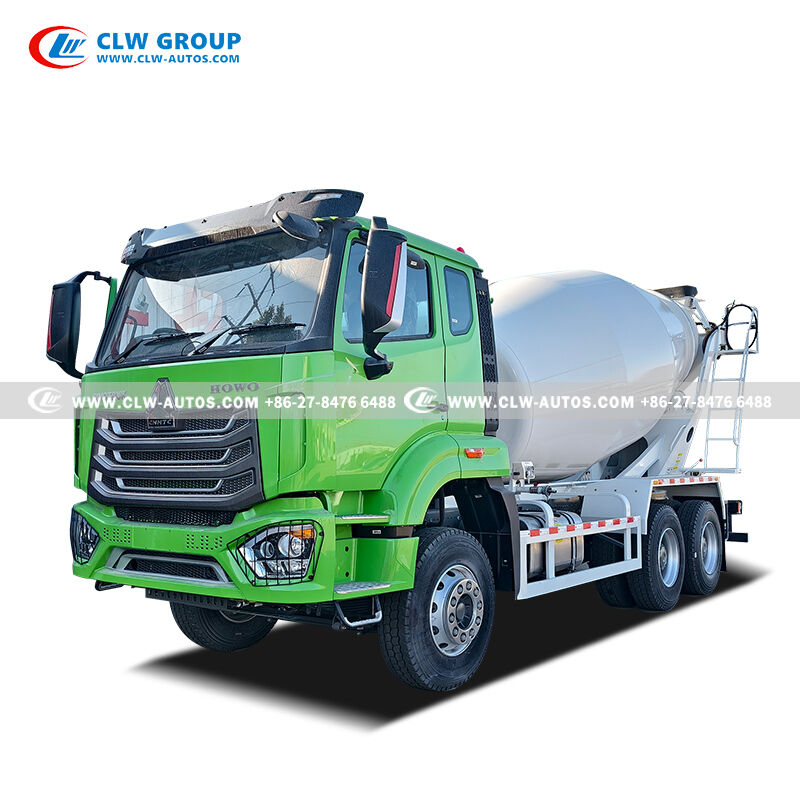

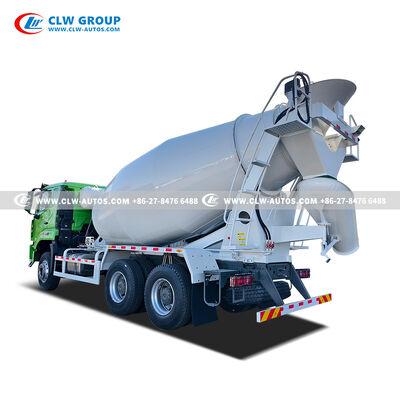

Product Gallery
