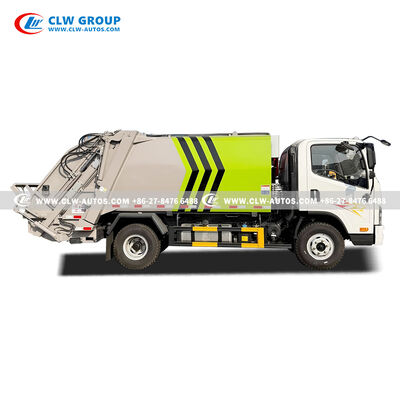

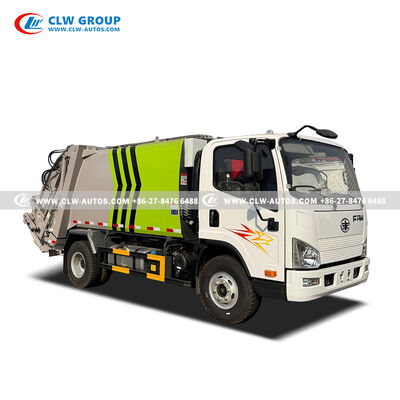

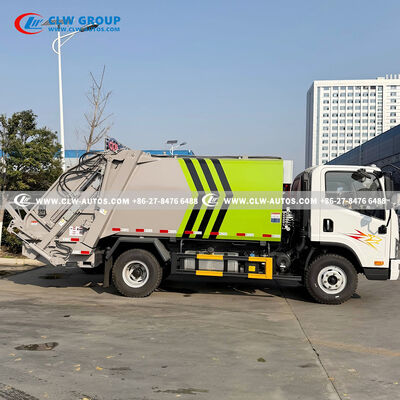

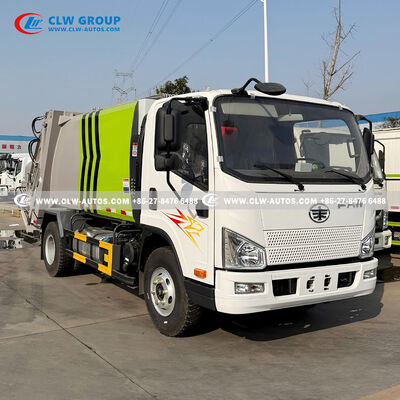

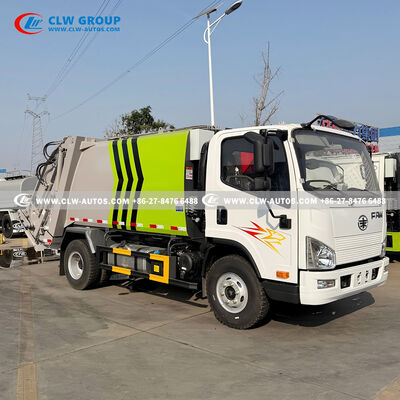

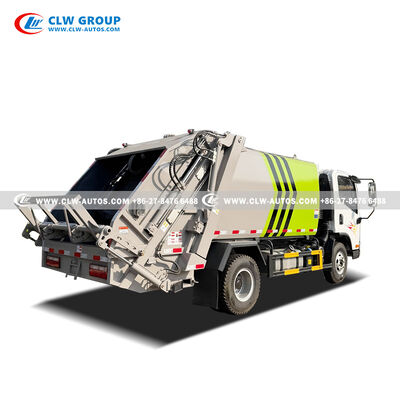

FAW J6F 6m³ Garbage Compactor Truck with Anti-Leakage Sealing for Efficient Waste Management

Name: FAW J6F 6m³ Garbage Compactor Truck with Anti-Leakage Sealing for Efficient Waste Management
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 42,848.00 USD
Availability: InStock

Large Image : FAW J6F 6m³ Garbage Compactor Truck with Anti-Leakage Sealing for Efficient Waste Management

Product Details:

Contact Now

Detailed Product Description

Highlight:

6m³ Volume Garbage Compactor Truck

FAW J6F Chassis Waste Management Truck

Anti-Leakage Sealing Refuse Collection Truck

FAW J6F 6m³ Compactor Truck – Smart Waste Management Solution

Introducing the HUBEI CLW FAW J6F 6m³ Special Vehicle - your ultimate partner in urban cleanliness. Designed for efficiency and built to last, this compact garbage compactor truck transforms the way cities handle waste.

Overview

Say goodbye to inefficient waste transport. Our 6m³ compactor truck, mounted on the famous FAW J6F chassis, features a powerful compression mechanism that packs more waste into every load. Engineered by Hubei CLW Special Vehicle Co., Ltd., it's the perfect blend of power, capacity, and environmental responsibility.

Key Features

FAW J6F Chassis: Known for its stability, comfort, and low fuel consumption
6m³ Volume: Compact size for narrow streets, yet spacious enough for heavy-duty tasks
Powerful Compression: Reduces waste volume by up to 70%, saving time and fuel on trips
100% Anti-Leakage: Advanced sealing technology ensures no secondary pollution to the roads
Easy to Operate: Simple hydraulic controls allow for quick loading and unloading cycles
Customizable Options: Available with various bin loading mechanisms (e.g., rear dustbin loading)

Applications

Municipal Street Cleaning
Residential Area Waste Collection
Hotel & Resort Waste Management
Small to Medium-Sized Factory Waste Disposal

Product Specifications

Technical Specifications

Chassis Model	FAW J6F
Overall Dimensions (LWH)	6,500 * 2,100 * 2,500 mm (approx.)
Garbage Bin Capacity	6 m³
Max Compression Ratio	1:0.6 - 1:0.8 (depending on waste type)
Loading Cycle Time	≤ 18 seconds
Unloading Cycle Time	≤ 45 seconds
Max Payload	3,000 - 4,000 kg (approx.)
GVWR (Gross Vehicle Weight Rating)	7,300 kg (approx.)

Chassis & Drivetrain

Engine Brand	FAW / Deutz (China IV/V/VI Emission Standard)
Engine Power	130 HP - 160 HP
Transmission	Manual / Automatic (Optional)
Drive Type	4*2
Cab Capacity	3 Persons
Steering	Power Steering
Brake System	Air Brake / Oil Brake (Optional)
Tire Size	7.00R16 / 7.50R16

Compactor Body & Hydraulic System

Bin Material	High-Strength Wear-Resistant Steel (Q345 / T700)
Bin Thickness	Side: 3 mm / Bottom: 4 mm
Sealing Type	Fully Sealed with Rubber Seal Strip
Hydraulic System Pressure	16 MPa
Hydraulic Oil Tank Capacity	80 L - 100 L
Control System	Manual Valve + PLC Remote Control (Optional)

Loading & Unloading Mechanism

Loading Method	Rear Loading (Compatible with standard dustbins)
Bin Lifting Capacity	240 L / 660 L Standard Dustbins
Dumping Angle	≥ 45°
Tailgate Opening Method	Hydraulic Up-Down / Side Swing (Optional)
