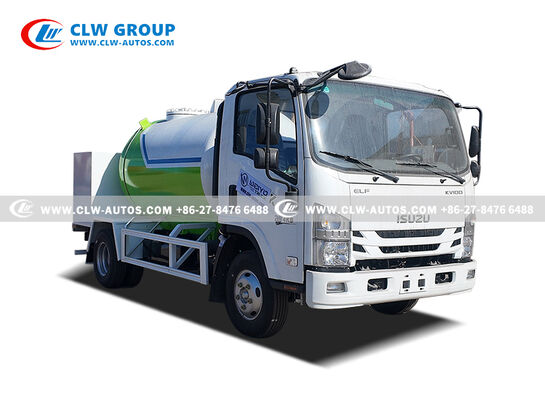

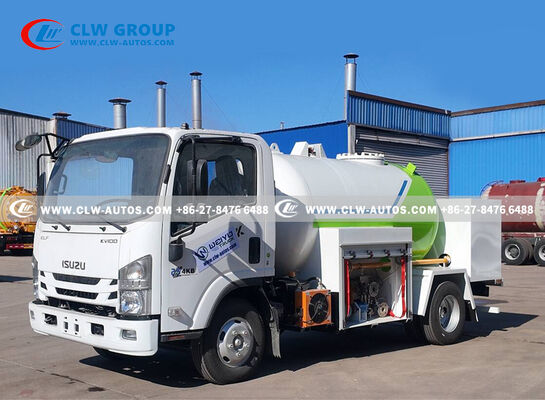

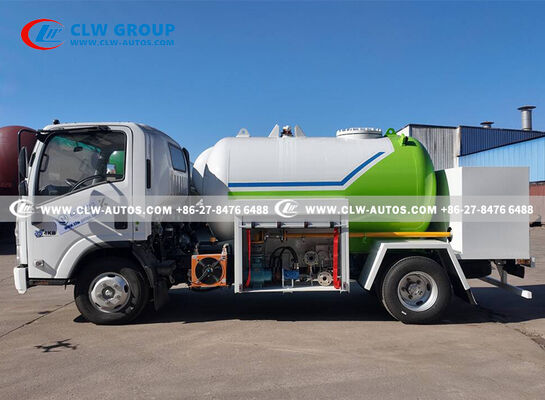

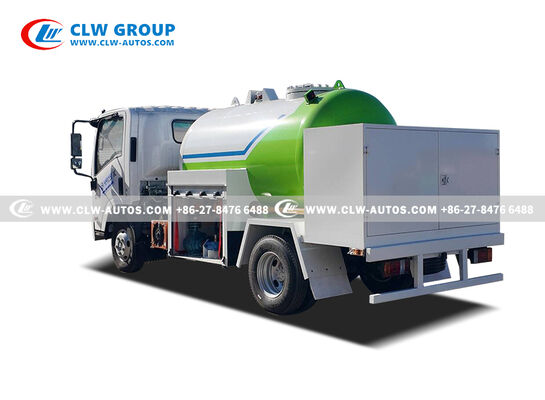

Isuzu KV100 4x2 LPG Refueling Truck with 5m³ Tank 120HP Euro 5 Engine Mobile Gas Dispensing Unit

Name: Isuzu KV100 4x2 LPG Refueling Truck with 5m³ Tank 120HP Euro 5 Engine Mobile Gas Dispensing Unit
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 44,935.00 USD
Availability: InStock

Large Image : Isuzu KV100 4x2 LPG Refueling Truck with 5m³ Tank 120HP Euro 5 Engine Mobile Gas Dispensing Unit

Product Details:

Contact Now

Detailed Product Description

LPG Tank Volume:	5,000 Liters	Tank Material:	Q345R
Tank Thickness:	10mm	Design Pressure:	1.61Mpa
Working Temperature:	-20~50℃	Engine Horsepower:	120hp
Emission Standard:	Euro 6	Wheelbase:	3360mm
Front Axle Load:	2,500kg	Rear Axle Load:	4,800kg

Isuzu KV100 4x2 LPG Refueling Truck – 5m³ Mobile Gas Dispensing Unit

The Isuzu KV100 LPG Refueling Truck is a complete mobile refueling solution built on the reliable Isuzu KV100 4x2 chassis. This mobile gas station delivers safe, efficient, compliant LPG refueling for industrial fleets, remote sites, commercial customers, and emergency supply.

Overview

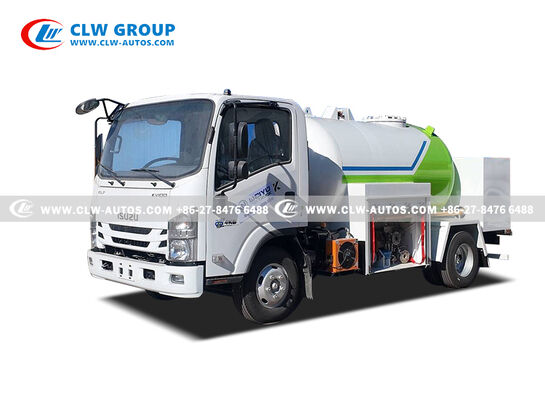

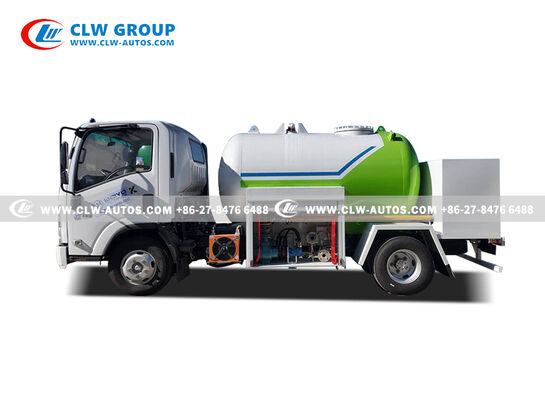

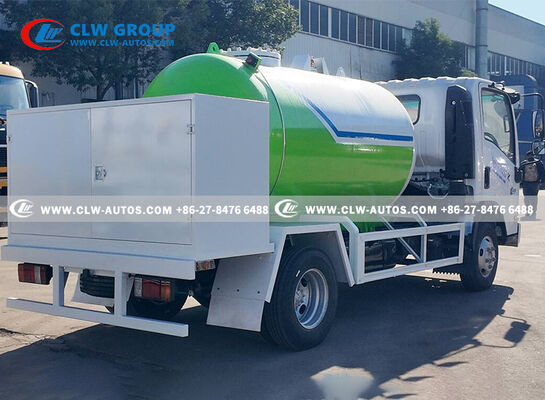

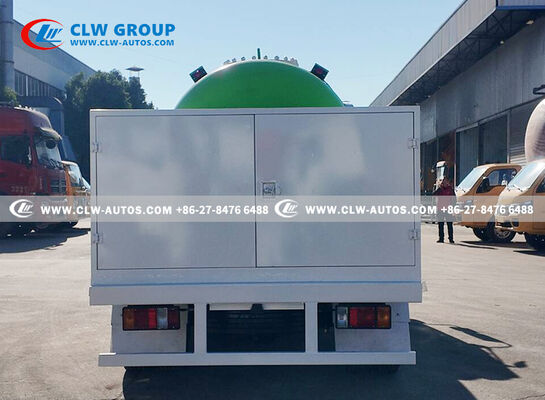

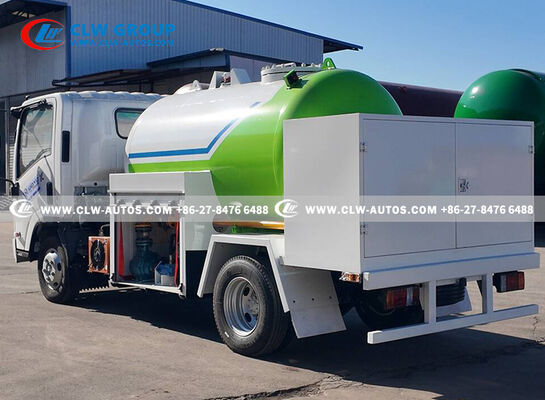

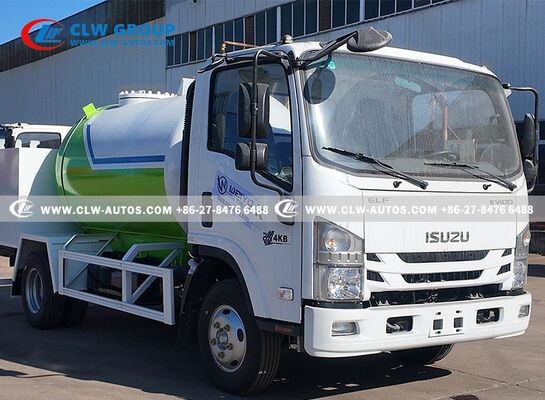

The Isuzu KV100 LPG Refueling Truck is a versatile and compact mobile refueling solution designed to bring liquefied petroleum gas (LPG) directly to customers, fleets, and remote operations. Built on the reliable Isuzu KV100 series chassis with a 3,360mm wheelbase, this truck combines superior mobility with robust performance. It meets Euro 5 emission standards and is powered by an Isuzu 4KH1CN6LB engine delivering 120 HP, coupled with a 5-speed Isuzu transmission for smooth and efficient operation. The vehicle features a 5m³ LPG tank (approx. 2.5 tons) mounted on the rear, complete with a domestically produced pump and flow meter for rapid refueling and tank unloading.

Key Features

Isuzu KV100 4x2 Reliable Chassis: 3,360mm wheelbase, 2.5T front axle, 4.8T rear axle. 7.00R16 tires, ABS, air-assisted brakes. Comfort cab: A/C, power steering, central locking, electric windows, tiltable.
120HP Euro 5 Engine: Isuzu 4KH1CN6LB, fuel-efficient. 5-speed Isuzu transmission for smooth operation.
5m³ LPG Tank (2.5 tons): Rear-mounted. Domestic high-performance pump. Accurate flow meter.
All-in-One Mobile Refueling System: Standalone gas station capability. Rapid refueling and tank unloading. No fixed infrastructure needed.
Compact & Maneuverable: Easy navigation of urban areas, industrial sites, confined job sites. Your "gas station on wheels."
Safety Compliance: Stringent pressure vessel regulations. Reliable valves and pressure management systems.

Applications

Mobile LPG refueling for industrial and commercial fleets
Remote site fuel supply (construction, mining, agriculture)
LPG distribution to residential and commercial customers
Emergency fuel supply during infrastructure disruptions
Factory and warehouse forklift refueling
Temporary fuel station for events and disaster response

Chassis Technical Parameters

Driving mode	4X2
Overall dimension	680025003250mm
Gross weight	11,000kg
Wheelbase	3360mm

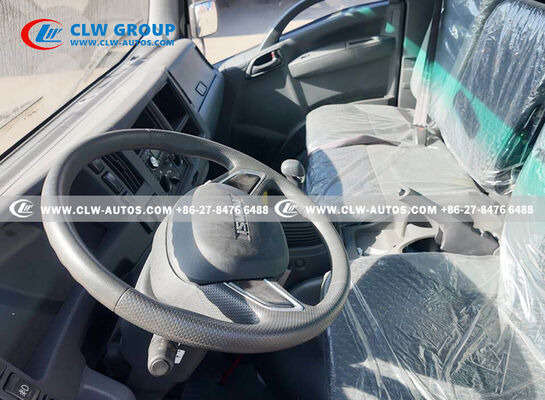

Cabin	ISUZU KV100 cabin; With A/C, power steering
Engine Brand	4KH1CN6LB
Horsepower	120hp
Emission standard	Euro 6
Gear box	ISUZU, 5 forward gears and 1 reverse
Tyre	7.00R16 (6pcs with 1 spare)
Front axle loading	2,500kg
Rear axle loading	4,800kg

Tank Body Parameters

LPG tank volume	5,000 liters, 5CBM
Tank material	Q345R
Tank thickness	10mm
End plate	10mm
Tank length	As designed
Gas phase	DN25 or DN50 or customized
Liquid phase	DN50 or DN80 or customized
Filling gas	Propane (LPG)
Design pressure	1.61Mpa
Hydraulic temperature	2.21Mpa
Working temperature	-20~50℃
Design code	GB150.1~2011

Accessories

Level gauge	Float ball type at the rear of tank
Safety valve	DN80*1
Tool and valve box	Equipped
Radiator of hydraulic oil	Equipped

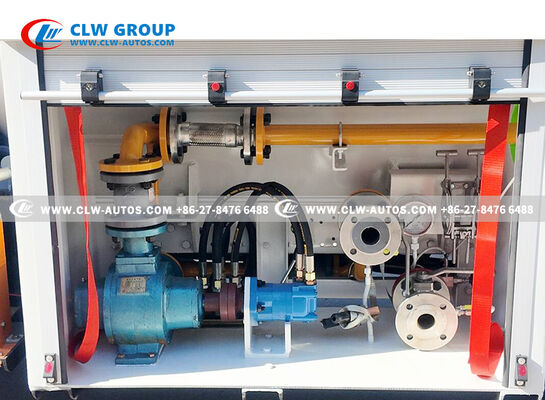

LPG pump	CORKEN Z2000, driven by truck engine through PTO

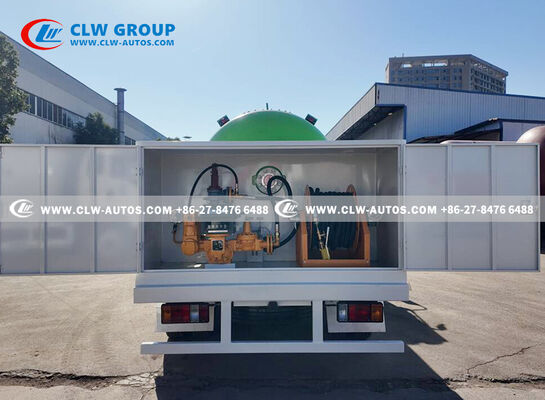

Dispenser machine	Single nozzle with English remarks
Filling hose	15 meters
Pressure gauge	One set
Thermometer	One set
Emergency valve	Controlled valve box and installed at the rear of truck
Fender	Steel material
Fire extinguisher holder	Installed at left and right sides of rear truck *2
Exhaust shaft	At the front of truck cabin for safety
