Sinotruk HOWO 6x4 30m³ LPG Tanker Truck with 336HP Euro II Engine and Comprehensive Safety Accessories for Bulk Gas Transport

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk HOWO 6x4 30m³ LPG Tanker Truck with 336HP Euro II Engine and Comprehensive Safety Accessories for Bulk Gas Transport

Detailed Product Description
Tank Capacity: 30 M³ Tank Material: 12mm Carbon Steel
Engine Power: 336 HP Engine Displacement: 9,726 Ml
Max Speed: 90 Km/h Curb Weight: ~12,390 Kg
Overall Dimensions: 9,500×2,500×3,500 Mm Wheelbase: 4,350+1,350 Mm
Rear Axle Capacity: 13T × 2 Tire Size: 12R22.5

Sinotruk HOWO 6x4 30m³ LPG Tanker Truck – 336HP Euro II Bulk Propane Transport for Gas Distribution
Product Overview

The Sinotruk HOWO 6x4 LPG Tanker Truck is a professional-grade bulk liquefied petroleum gas transport vehicle designed for gas distribution companies, energy suppliers, and industrial gas users requiring safe, efficient bulk LPG delivery.

Built on the proven Sinotruk HOWO 6x4 heavy-duty chassis with 4,350+1,350mm wheelbase, left-hand drive, and HW76 flat-head tilting sleeper cab with air conditioning, this vehicle features a WD615.69 diesel engine delivering 336HP (247kW) at 2,200 RPM with Euro II emission compliance.

The 30 cubic meter (approximately 20 metric tons) LPG tank is constructed from 12mm thick carbon steel. The comprehensive safety accessory package includes floating level gauge, pressure gauge, temperature gauge, safety valve, emergency shut-off valve, and ball valves. The integrated LPG pump enables efficient loading and unloading operations.

Key Features
  • Sinotruk HOWO 6x4 Heavy-Duty Chassis: 4,350+1,350mm wheelbase, front rigid T-section axle, dual 13-ton rear drive axles (double reduction), 12R22.5 tires
  • 336HP Euro II Diesel Engine: WD615.69 6-cylinder inline, water-cooled, turbocharged, electronically controlled. 247kW at 2,200 RPM, 9,726ml displacement. Max torque at 1,100-1,600 RPM
  • HW76 Driver Cab: Flat-head, tilting, sleeper bunk, left-hand drive, air conditioning
  • 30m³ LPG Tank: 30 cubic meter capacity (~20 metric tons LPG). 12mm carbon steel construction. Anti-corrosion zinc-rich primer + custom topcoat
  • Comprehensive Safety Accessories: Floating level gauge (tank content), pressure gauge (system pressure), temperature gauge (cargo temp), safety valve (overpressure protection), emergency shut-off valve (incident response), ball valves (flow control)
  • LPG Pump: Integrated for efficient loading/unloading operations
  • Dimensions & Weight: Overall 9,500×2,500×3,500mm. Curb weight ~12,390kg. Max speed 90 km/h
Applications
  • Bulk LPG distribution to residential, commercial, and industrial customers
  • Industrial gas supply for factories and processing plants
  • Energy logistics for gas utilities and propane marketers
  • Remote facility LPG replenishment (farms, resorts, off-grid sites)
  • Cross-regional LPG transport and delivery
Technical Specifications
Specification Details
Overall Dimensions 9,500 × 2,500 × 3,500 mm
Chassis Sinotruk HOWO 6x4
Drive 6x4
Cab HW76 flat-head, tilting, sleeper, LHD, A/C
Wheelbase 4,350 + 1,350 mm
Curb Weight ~12,390 kg
Engine WD615.69, 336 HP, 9,726 ml, Euro II
Max Torque RPM 1,100 - 1,600 RPM
Max Power RPM 2,200 RPM
Front Axle Rigid T-section
Rear Axle 13T × 2 (double reduction)
Tires 12R22.5
Max Speed 90 km/h
Tank Capacity 30 m³ (~20 tons LPG)
Tank Material 12mm carbon steel
Level Gauge Floating type
Pressure Gauge Yes
Temperature Gauge Yes
Safety Valve Yes
Emergency Shut-Off Valve Yes
Ball Valves Yes
LPG Pump Yes
Coating Zinc-rich primer + customer topcoat

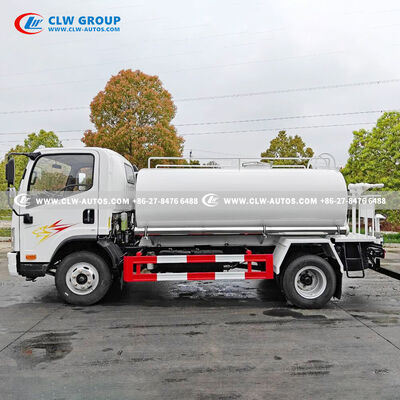

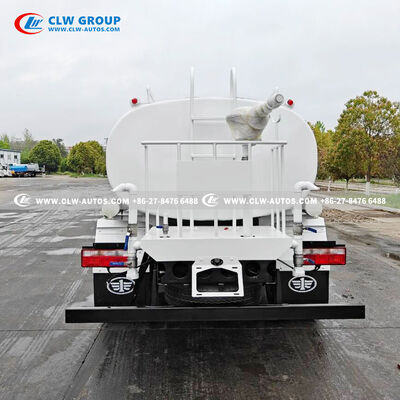

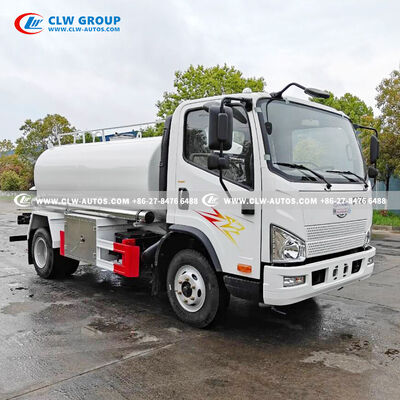

Product Gallery
