12 Cubic Meters Carbon Steel Tank Vacuum Sewage Suction Truck with High-efficiency Rotary Vane Vacuum Pump

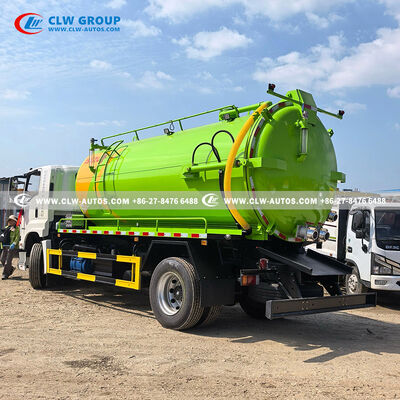

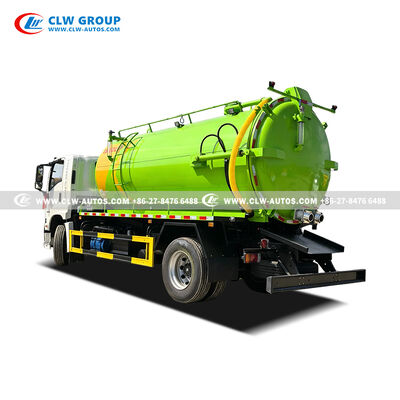

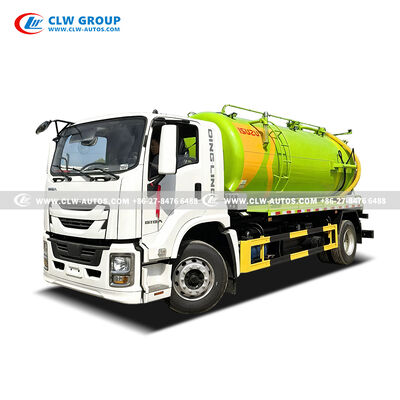

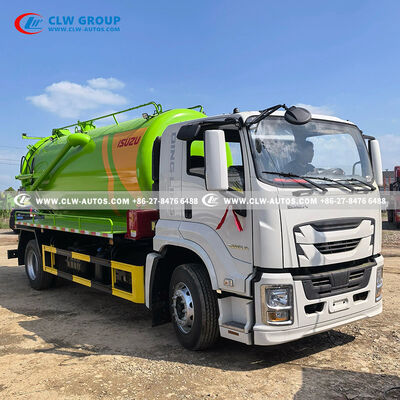

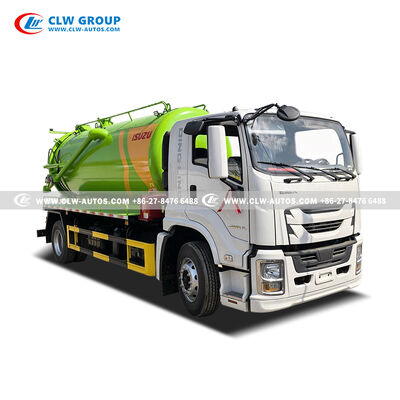

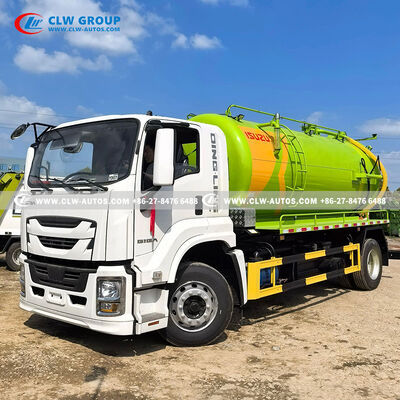

Large Image : 12 Cubic Meters Carbon Steel Tank Vacuum Sewage Suction Truck with High-efficiency Rotary Vane Vacuum Pump

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	fuel refueling truck

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	25000
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Tank Volume:	12 Cubic Meters
Tank Material:	Thickened High-quality Carbon Steel Plate	Vacuum Pump Type:	High-efficiency Rotary Vane Vacuum Pump
Maximum Vacuum Degree:	≥ 93% (-0.095 MPa)	Suction Depth:	7-9 Meters
Suction Pipe Diameter:	100mm (4-inch)	Discharge Tilt Angle:	15°
Engine Type:	Water-cooled 4-stroke Diesel Engine	Transmission Type:	Manual Gearbox (6-speed / 8-speed Optional)
Max Driving Speed:	90 Km/h
Highlight:	carbon steel vacuum sewage suction truck , high-efficiency rotary vane vacuum pump , 12 cubic meters vacuum suction truck

I-SUZU 12CBM Vacuum Sewage Suction Truck

Our 12 cubic meters vacuum sewage suction truck adopts mature commercial vehicle chassis and high-strength integrated tank body, equipped with high-power professional vacuum suction system. It is widely used for sewage, sludge, manure, mud water and liquid waste suction, transportation and discharging in municipal sanitation, urban sewer cleaning, community sewage treatment, farm waste cleaning and industrial sewage disposal fields. Featuring stable performance, strong suction force, fast working efficiency and easy operation, it is an essential sanitation engineering vehicle for environmental cleaning work.

Technical Specifications

Category	Item	Specification
Chassis System	Driving Type	4×2 Rear Wheel Drive
	Emission Standard	Euro 5 / Euro 6 Compliant
	Engine Type	Water-cooled 4-stroke Diesel Engine
	Transmission	Manual Gearbox (6-speed / 8-speed optional)
	Wheelbase	Standard Sanitation Special Wheelbase
	Tire Specification	Heavy-duty Radial Vacuum Tires
	Driving Cab	Single-row Forward Cab with Air Conditioning, Adjustable Suspension Seat
	Brake System	Dual-circuit Air Brake System with ABS Anti-lock Braking
	Max. Driving Speed	90 km/h
Superstructure System	Effective Tank Volume	12 Cubic Meters (CBM)
	Tank Body Material	Thickened High-quality Carbon Steel Plate
	Tank Body Structure	Horizontal Cylindrical Tank with Internal Anti-wave Baffles, Fully Enclosed Design
	Core Vacuum Component	High-efficiency Rotary Vane Vacuum Pump
	Maximum Vacuum Degree	≥ 93% (-0.095 MPa)
	Vertical Suction Depth	7-9 Meters
	Suction Pipe	100mm (4-inch) Diameter Quick-connect Suction Hose
	Discharge Mode	Hydraulic Rear-opening Self-unloading Design, with 15° Tilt Angle for Complete Discharge
	Auxiliary Configurations	Pressure Relief Valve, Oil-water Separator, Dust Filter, Anti-overflow Protection Device
	Control System	Full Hydraulic Control System, Easy and Safe Operation
	Pressure Gauge	0-0.6 MPa High-precision Pressure/Vacuum Compound Gauge

Key Features

Strong Suction Performance: High-power vacuum pump delivers stable negative pressure, with 7-9m vertical suction depth, suitable for deep sewer and sediment suction
Durable Tank Body: Thickened carbon steel tank with anti-wave baffles, anti-corrosion and anti-deformation, long service life
Efficient Discharge: Hydraulic rear dump design with large tilt angle, realizes fast and complete sludge discharge without residue
Safe & Reliable: Equipped with anti-overflow protection, pressure relief valve and ABS brake system, ensuring safe operation in various working conditions
Easy Operation: Full hydraulic control system, centralized control in the cab or at the rear of the truck, simple and flexible operation

Application Scenarios
