Sinotruk HOWO 6x4 Flatbed Wrecker Truck with 10 Ton Knuckle Boom Crane

Name: Sinotruk HOWO 6x4 Flatbed Wrecker Truck with 10 Ton Knuckle Boom Crane
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: HOWO
Price: 55,590.00 USD
Availability: InStock

Large Image : Sinotruk HOWO 6x4 Flatbed Wrecker Truck with 10 Ton Knuckle Boom Crane

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	HOWO

Contact Now

Detailed Product Description

Overall Dimension:	11480x2550x3750 Mm	GVW:	25000 Kg
Curb Weight:	16920 Kg	Drive Form:	6x4 (3 Axles, Front Steering + Double Rear Drive Axles)
Engine Model:	WEICHAI WP10.340E22 Diesel Engine	Rated Power:	250kW (340HP) / 2200r/min
Ignition Advance Angle:	14°CA	Engine Net Weight:	875kg
Tire Specification:	12.00R20 Tube-type Tire, Matching Rim Size 8.5	Crane Type:	Folding Knuckle Boom Crane
Rated Lifting Capacity:	10 Ton

Sinotruk HOWO 6x4 Flatbed Wrecker Truck with 10 Ton Knuckle Boom Crane

Product Overview

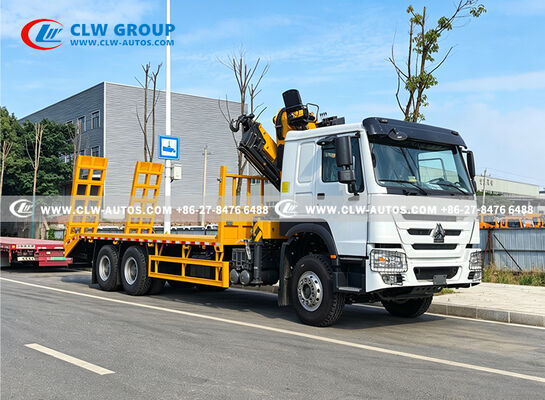

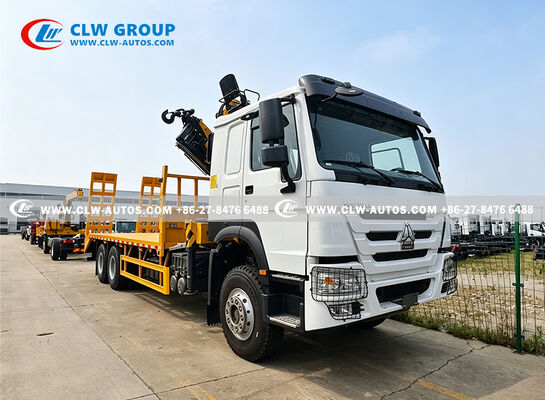

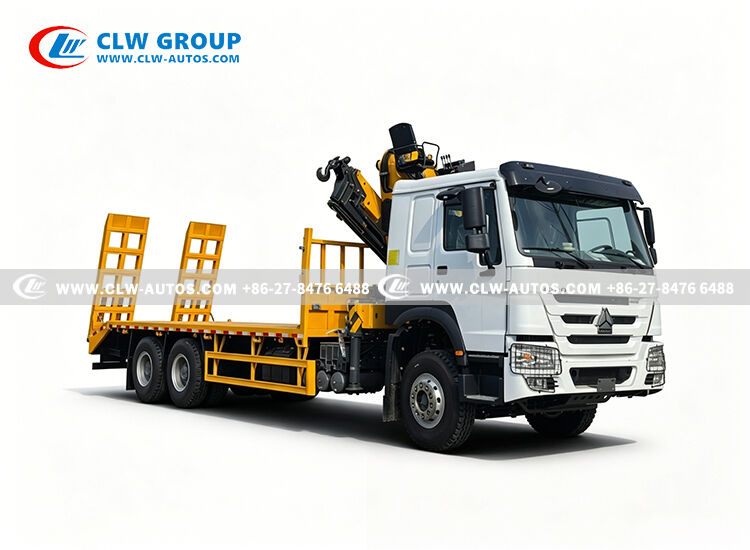

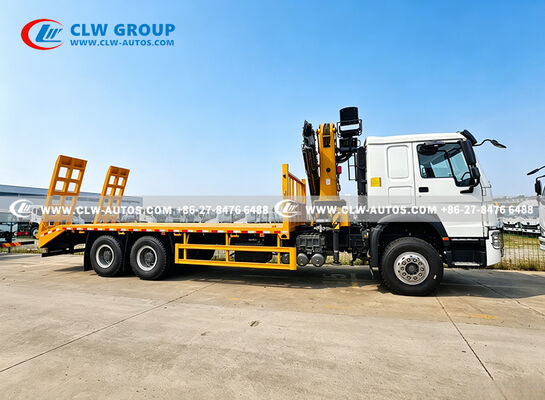

This heavy-duty integrated flatbed transport truck features original Sinotruk HOWO 6x4 heavy-duty chassis, paired with XCMG 10-ton folding knuckle boom crane and reinforced flatbed cargo platform with hydraulic loading ramps. With a total mass of 25 tons and powerful Weichai WP10 engine, this vehicle offers exceptional lifting and flatbed hauling capacity. Ideal for transporting excavators, loaders, construction machinery, heavy equipment and bulk cargo, it provides dual functionality of lifting and flatbed transportation in a single vehicle.

Technical Specifications

Vehicle Full Model	Sinotruk HOWO 6x4 Flatbed Transport Truck with 10 Ton Knuckle Boom Crane
Overall Dimension	11480 * 2550 * 3750 mm
GVW (Gross Vehicle Weight)	25000 kg
Curb Weight	16920 kg
Production Date	May 2026
Chassis Brand	SINOTRUK HOWO
Drive Form	6x4 (3 axles, front steering + double rear drive axles)

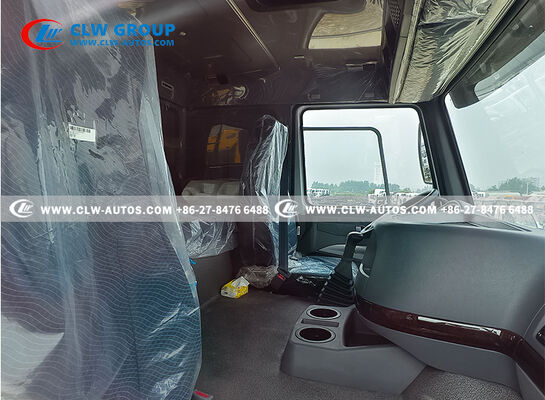

Cab Configuration	HOWO standard wide-body single-row cab, built-in air conditioning
Engine Model	WEICHAI WP10.340E22 Diesel Engine
Rated Power & Speed	250kW (340HP) / 2200r/min
Engine Net Weight	875kg
Tire Specification	12.00R20 tube-type tire, matching rim size 8.5
Crane Brand	XCMG

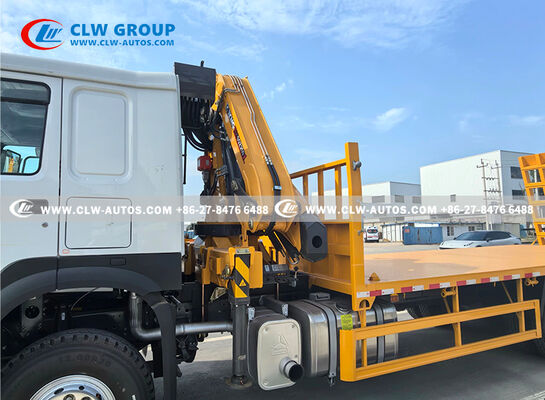

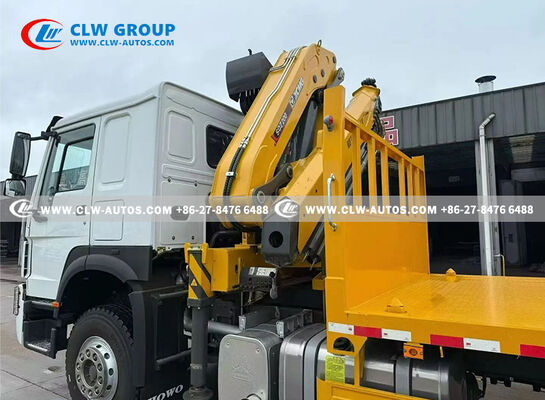

Crane Type	Folding Knuckle Boom Crane
Rated Lifting Capacity	10 Ton

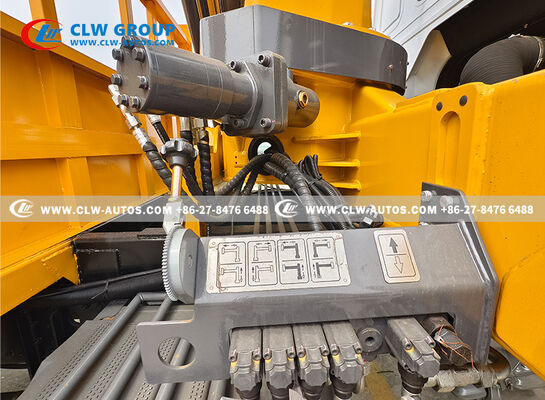

Crane Control System	Multi-way hydraulic proportional valve, full manual side control lever
Slewing Mechanism	Full hydraulic 360° unlimited rotation turntable
Outrigger System	Hydraulic vertical supporting outriggers with load-bearing stable feet
Flatbed Body Structure	High-strength diamond checkered steel flatbed, integral reinforced beam frame

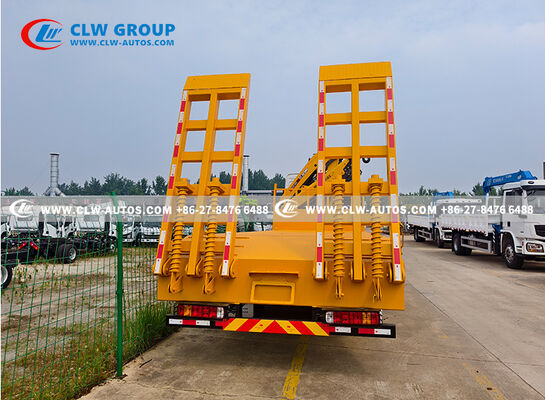

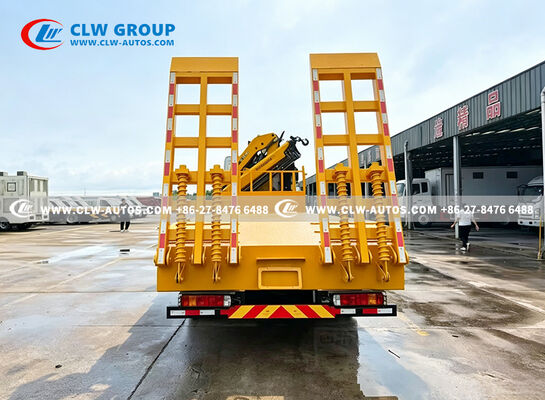

Loading Ramp Configuration	Double hydraulic spring-assisted climbing ramps, anti-slip grid structure
Standard Safety Accessories	3M standard reflective strips, heavy-duty towing lugs, lifting tie-down holes
Hydraulic Circuit System	Sealed high-pressure rubber hydraulic pipelines, anti-leakage integrated cylinder

Product Images

Core Advantages

Reliable HOWO 6x4 Chassis: Original Sinotruk heavy-duty chassis equipped with Weichai 340 horsepower diesel engine provides sufficient torque for climbing and heavy load transport. 12.00R20 heavy-duty tires adapt to construction site rough roads, ensuring stable load bearing under full 25-ton total mass limit.
Dual Function: Lifting + Flatbed Hauling: Integrated XCMG 10-ton folding knuckle crane completes on-site equipment hoisting, while the long reinforced flatbed with climbing ramps directly loads excavators and engineering machinery. Eliminates the need for separate crane and transport vehicles to save operation costs.
Durable Hydraulic & Structural Design: Full hydraulic control system with multi-group proportional control valves for precise boom operation. 360° free rotation turntable enables multi-angle hoisting. Vertical hydraulic outriggers provide solid support during lifting operations. The flatbed features thickened checkered steel plate and reinforced cross beams to prevent deformation under heavy cargo loads.
Practical Site-Friendly Configuration: Spring-assisted hydraulic climbing ramps significantly reduce labor during machinery loading. Multiple fixed tie-down holes on the flatbed secure heavy equipment. Standard 3M reflective marking strips meet road transportation safety standards, making it suitable for long-distance machinery delivery and engineering construction site operations.

Application Scenarios

Construction machinery transportation, excavator/loader delivery, engineering equipment hoisting & transfer, heavy cargo flatbed hauling, municipal engineering rescue, road machinery logistics transport.
