Shacman 8x4 Truck Mounted Knuckle Boom Crane with Brick grab

Name: Shacman 8x4 Truck Mounted Knuckle Boom Crane with Brick grab
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: HOWO
Price: 55,590.00 USD
Availability: InStock

Large Image : Shacman 8x4 Truck Mounted Knuckle Boom Crane with Brick grab

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	HOWO

Contact Now

Detailed Product Description

Overall Dimensions:	12000mm × 2550mm × 3980mm

Shacman 8x4 Truck Mounted Crane with Brick Grapple

Shacman 8x4 460HP Hydraulic Truck Mounted Crane with Rear Knuckle Boom Crane, Brick Grapple and Cargo Box

Product Overview

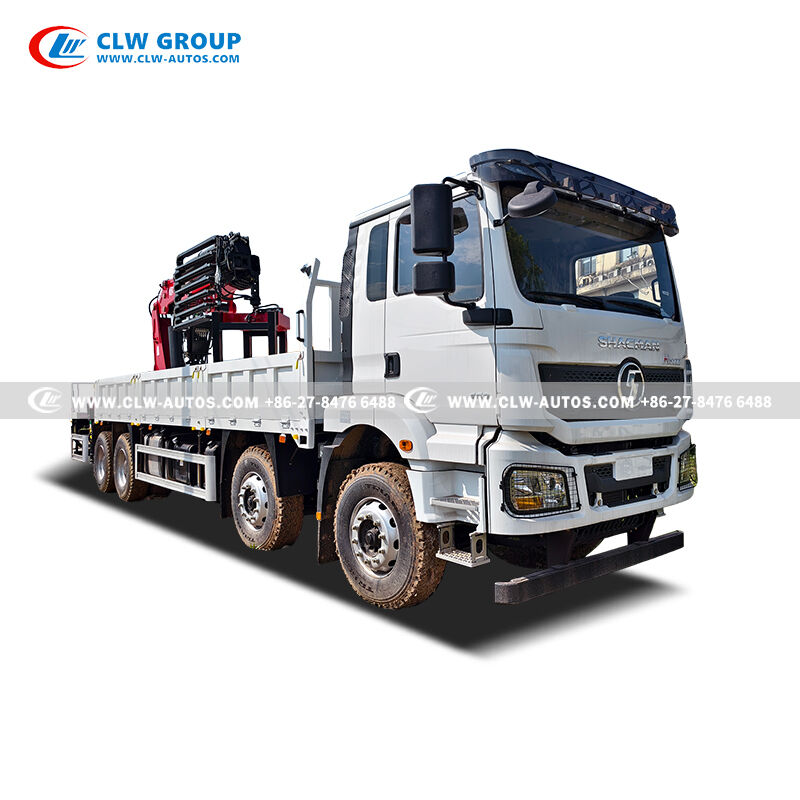

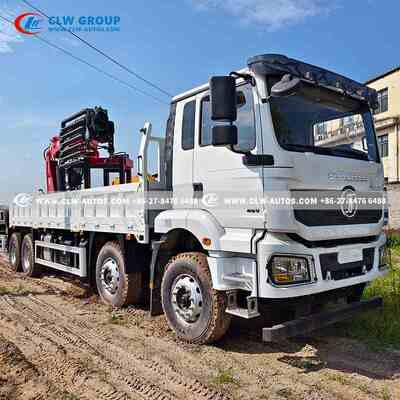

This heavy-duty truck mounted crane is built on Shacman 8x4 heavy-duty special chassis, equipped with a high-performance 460HP Weichai engine, rear-mounted 20-ton class Changxing knuckle boom crane, hydraulic brick grapple attachment, and reinforced steel cargo box. It integrates the functions of heavy lifting, material handling, and long-distance transportation, which is widely used in construction sites, building material transportation, municipal engineering, garden construction, and other working scenarios. The vehicle meets China VI/Euro VI emission standards, with strong power output, stable lifting performance, flexible operation, and high working efficiency, making it an ideal equipment for heavy material handling and integrated transportation.

Technical Specifications

Category	Item	Parameter
Whole Truck	Overall Dimensions (L×W×H)	12000mm × 2550mm × 3980mm
	Gross Vehicle Weight	31000kg
	Curb Weight	~24500kg
	Rated Payload	~6500kg
	Approach/Departure Angle	16°/10°
	Max Driving Speed	89km/h
	Emission Standard	China VI / Euro VI
Chassis Parameters	Chassis Brand	Shacman
	Drive Type	8×4
	Engine Brand & Model	Weichai WP12.460E62
	Max Power	460HP (338kW)
	Transmission	Fast 12-speed Manual Transmission with Synchronizer
	Cabin Type	Row-and-a-half Cabin, 4-point Airbag Suspension
	Front Axle	Hande 9.5T MAN Technology Front Axle
	Rear Axle	Hande 16T MAN Technology Double-stage Casting Rear Axles (2 Units)
	Frame Size	850×300(8+7)mm High-strength Steel Frame
	Tire Specification	12.00R20 Steel Wire Radial Tires
	Fuel Tank Capacity	400L Aluminum Alloy Fuel Tank
	Wheelbase	2100+4575+1400mm
	Standard Cabin Configurations	Airbag Driver Seat, Factory Air Conditioning, Central Locking, Power Windows, Driving Recorder
Crane (Upper) Parameters	Crane Brand	Changxing
	Crane Model	SQZ4007
	Crane Type	Rear-mounted Telescopic Knuckle Boom Crane
	Max Lifting Moment	400kNm (40Tm)
	Max Lifting Capacity	20000kg @ 2m Working Radius
	Max Working Radius	12m
	Max Lifting Height	15.3m
	Boom Sections	7-section Telescopic Boom
	Slewing Angle	360° Full Slewing
	Rated Hydraulic Working Pressure	30MPa
	Rated System Flow	80L/min
	Outrigger Span	7200mm
	Crane Self-weight	~4800kg
	Installation Space Requirement	1417mm

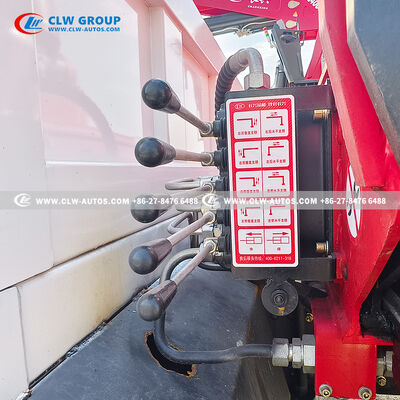

	Control Mode	Dual Control (Upper Seat + Ground Control), Hydraulic Proportional Valve
	Standard Configurations	Overload Protection Device, Lifting Height Limiter, Slewing Locking Device, High-power Hydraulic Radiator
Brick Grapple Parameters	Grapple Type	Hydraulic Brick Stack Grapple
	Rated Loading Capacity	3000kg
	Clamping Opening Range	400mm - 1400mm
	Effective Clamping Height	600mm - 1200mm
	Rotation Function	360° Hydraulic Rotation
	Control Mode	Hydraulic Synchronous Control
	Main Material	High-tensile Steel
	Standard Configurations	Wear-resistant Rubber Inserts, Internal Pressure Relief Valve, Non-return Valve
Cargo Box Parameters	Box Type	Rectangular Steel Cargo Box with Side Rails
	Internal Dimensions (L×W×H)	8200mm × 2450mm × 600mm
	Main Material	High-strength Steel Plate
	Plate Thickness	Bottom Plate 5mm, Side Plate 3mm
	Standard Configurations	Side Door Lock, Anti-slip Bottom Plate, Cargo Tie-down Points

Core Advantages

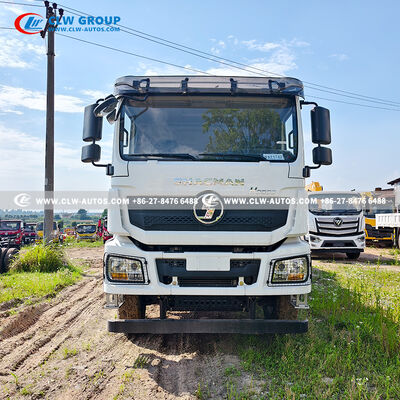

1. Powerful and Reliable Heavy-Duty Chassis

Adopt Shacman 8x4 heavy-duty special chassis with high-strength steel frame, featuring super strong bearing capacity and excellent off-road adaptability
Equipped with Weichai 460HP high-power engine, matched with Fast 12-speed manual transmission with synchronizer, delivering strong and stable power output, smooth shifting, and reliable long-term working performance
Hande 9.5T MAN technology front axle and double 16T MAN technology double-stage casting rear axles, with wheel side reduction design, strong load-bearing capacity, and excellent adaptability to complex muddy and off-road conditions

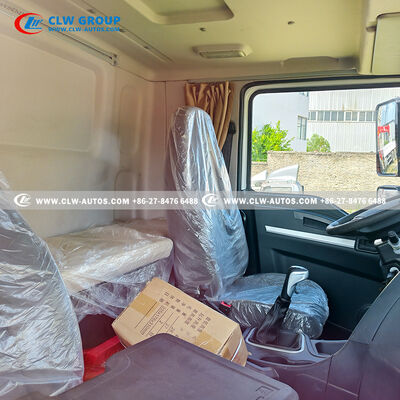

Spacious row-and-a-half cabin with 4-point airbag suspension, airbag driver seat, factory air conditioning, central locking, and other humanized comfortable configurations, greatly reducing driver fatigue during long-distance transportation

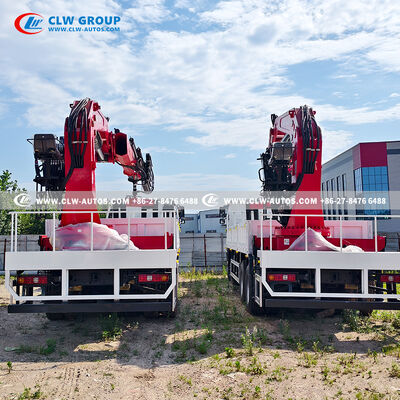

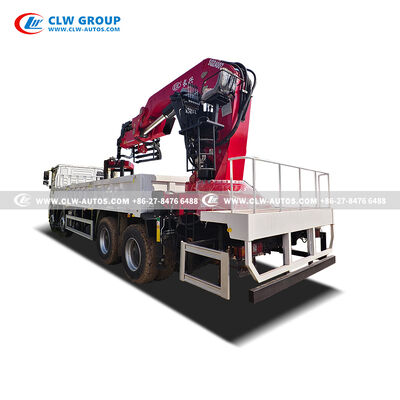

2. High-Performance Rear-Mounted Knuckle Boom Crane

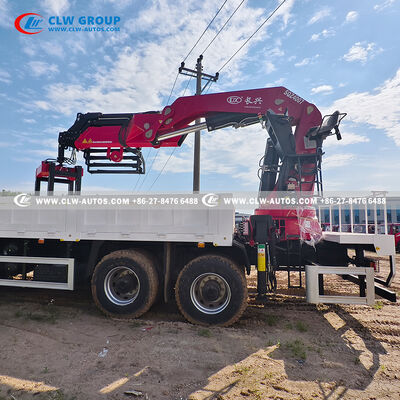

Rear-mounted Changxing SQZ4007 7-section telescopic knuckle boom crane, with max lifting moment of 40T*m, max lifting capacity of 20 tons at 2m working radius, max working radius of 12m, and max lifting height of 15.3m
360° full slewing design with hydraulic proportional valve control, featuring stable operation, accurate positioning, and excellent micro-movement performance for precise material handling
Dual control mode (upper seat + ground control), easy to operate, adapting to different working scenarios and operator habits

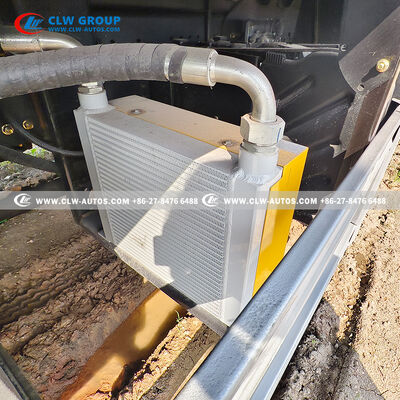

Standard overload protection device, lifting height limiter, slewing locking device, and high-power hydraulic radiator, ensuring safe and stable long-term heavy-load operation

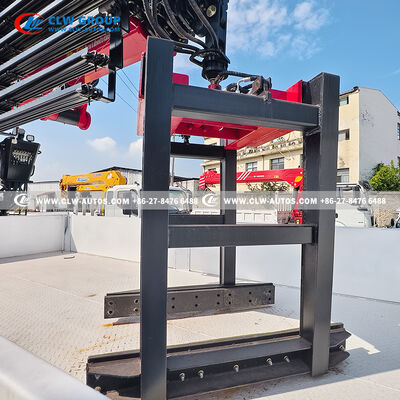

3. Professional Hydraulic Brick Grapple Attachment

Specially designed hydraulic brick stack grapple for construction material handling, with rated loading capacity of 3 tons, clamping opening range of 400mm-1400mm, adapting to different sizes of brick stacks, concrete blocks, and curb stones
360° hydraulic rotation design with synchronous hydraulic control, featuring accurate clamping, stable lifting, and no slipping during material handling
Made of high-tensile steel with wear-resistant rubber inserts, internal pressure relief valve, and non-return valve, ensuring long service life and safe operation even under heavy load
Quick-change design, can be easily replaced with other attachments to adapt to different material handling needs, greatly improving the loading and unloading efficiency of bricks and blocks

4. Reinforced Heavy-Duty Cargo Box

8.2m long reinforced steel cargo box with high-strength steel plate structure, 5mm thick anti-slip bottom plate and 3mm thick side plate, featuring strong bearing capacity and impact resistance
Multiple cargo tie-down points pre-installed on the bottom plate, ensuring the safety of goods during long-distance transportation
Side doors with reliable lock design, easy to open and close, convenient for fast loading and unloading of goods, adapting to different bulk and packaged goods transportation needs

Application Scenarios

Construction Sites: Lifting, loading and unloading of bricks, concrete blocks, steel bars, formwork, and other construction materials
Building Material Transportation: Integrated loading, unloading, and long-distance transportation of bricks, blocks, cement, sand, and other building materials
Municipal Engineering: Road construction, bridge maintenance, urban greening, street lamp installation, and other municipal projects
Garden Construction: Lifting and placing of landscape stones, large trees, garden facilities, and lawn materials
Warehouse Logistics: Loading and unloading of heavy bulk goods, palletized goods, and large equipment in warehouses and logistics parks
