| Chassis Model: | SX2165JU442 |
|---|

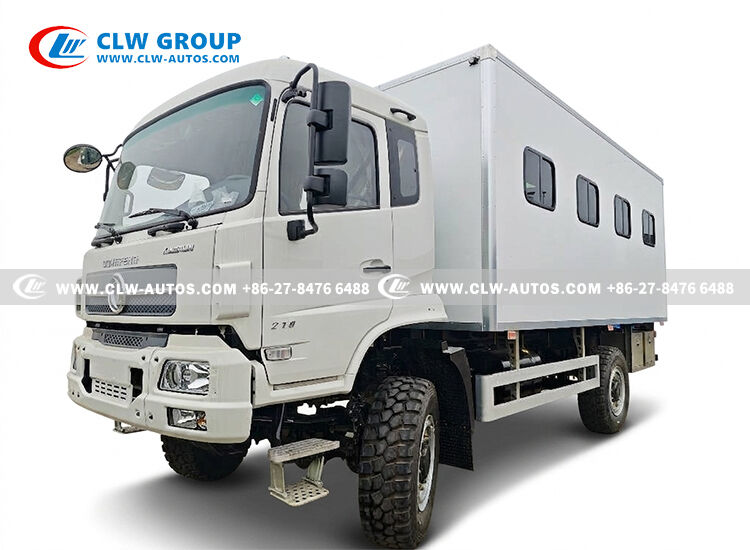

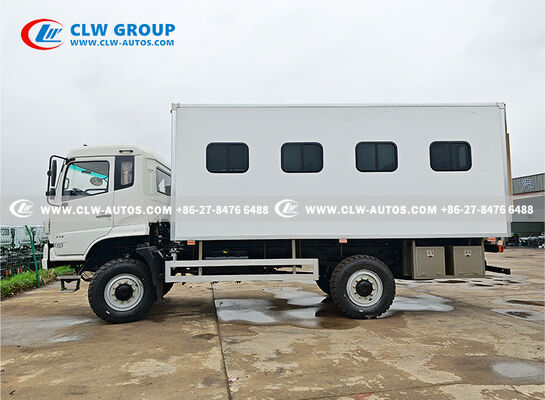

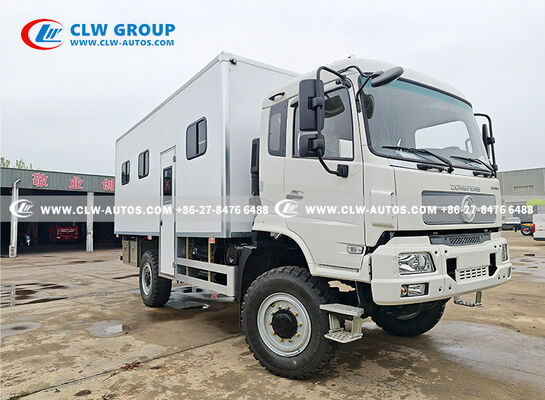

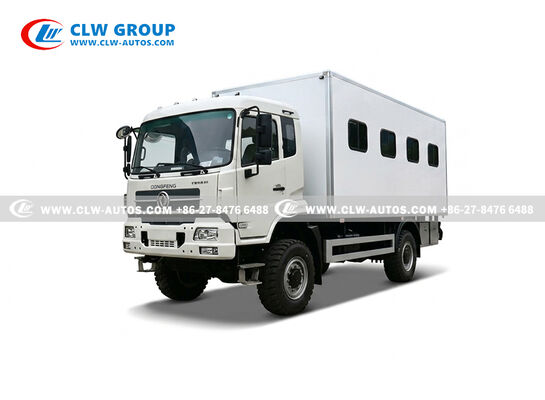

This 4×4 off-road personnel carrier is built on a heavy-duty Dongfeng all-wheel-drive chassis, specially developed for harsh working environments including oilfields, mountain construction sites, mining zones, border defense and remote wilderness areas.
The fully enclosed insulated passenger compartment provides stable, safe and comfortable transport for field crews. We support full customization of interior layout, seating quantity and body structure to meet diverse project requirements. The vehicle meets Euro 5 emission standards and is available for full export with complete customs documents.
| Chassis Specifications | ||
|---|---|---|
| Chassis Model | SX2165JU442 | |
| Overall Dimension (L×W×H) | 8100×2500×3520 mm | |
| Wheelbase | 4500 mm | |
| GVW | 16000 kg | |
| Curb Weight | 9050 kg | |
| Front Axle Load | 6.3 Tons | |
| Rear Axle Load | 13 Tons | |
| Max Driving Speed | 90 km/h | |
| Drive System | 4×4 Full-time 4WD | |
| Clutch | Diaphragm Clutch | |
| Steering | Power Steering | |
| Frame | 850×300(8+5) Reinforced Frame | |
| Engine & Powertrain | ||
| Engine Model | 4HK1-TC50 Diesel | |
| Displacement | 5190 ml | |
| Horsepower | 205 HP | |
| Max Torque | 650 N*m | |
| Emission Standard | Euro 5 | |
| Fuel | Diesel | |
| Gearbox | 12JSD200T-B | |
| Fuel Tank | 400L Aluminum Alloy Tank | |
| Brake & Tyre | ||
| Service Brake | Dual-circuit Compressed Air Brake | |
| Parking Brake | Spring Air Discharge Brake | |
| Auxiliary Brake | Engine Exhaust Brake | |

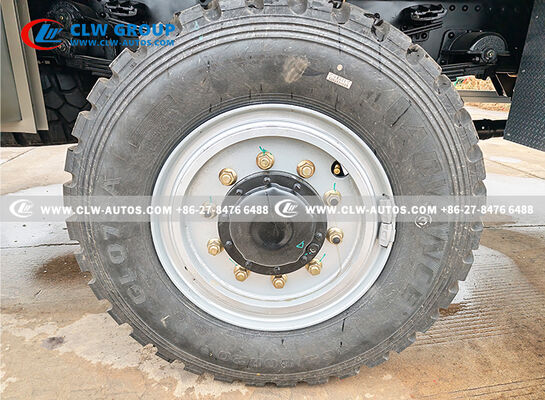

| Tyre | 6 pcs 10.00R20 | |
| Superstructure (Upper Cabin) | ||
| Cabin Internal Size | 5600×2200×2100 mm | |
| Box Material (Standard) | Corrugated Steel | |

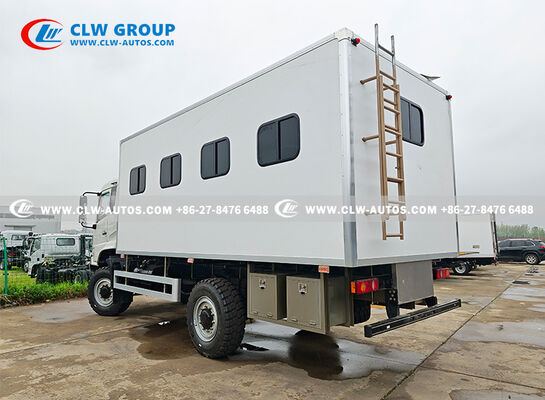

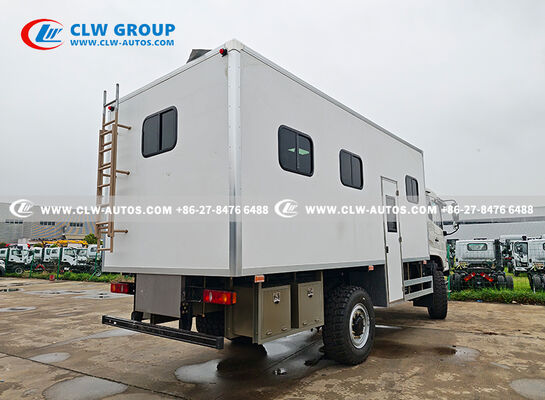

| Door Type | Double Rear Doors | |
| Floor | Anti-skid Pattern Plate | |
| Standard Equipment | Full sets customized equipment | |
| Standard Accessories | Basic Tool Kit + English Manual | |
| Optional Items |
|
|
Full-time 4WD system paired with heavy-duty off-road tires delivers excellent climbing performance and trafficability, easily coping with muddy roads, gravel roads and mountainous terrain.
Euro 5 205HP diesel engine provides strong torque at low speed, ensuring reliable power during long-distance field transportation with low fuel consumption.

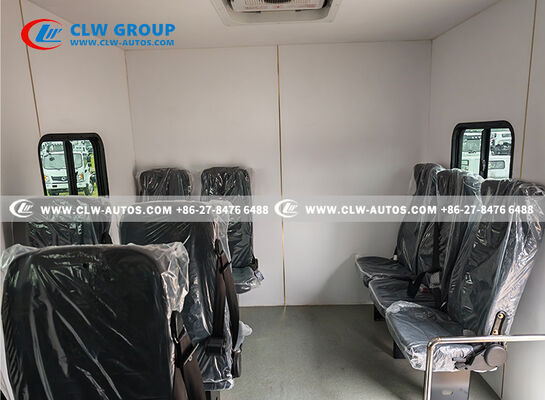

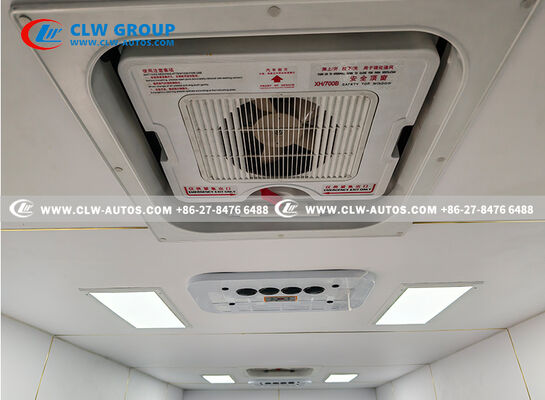

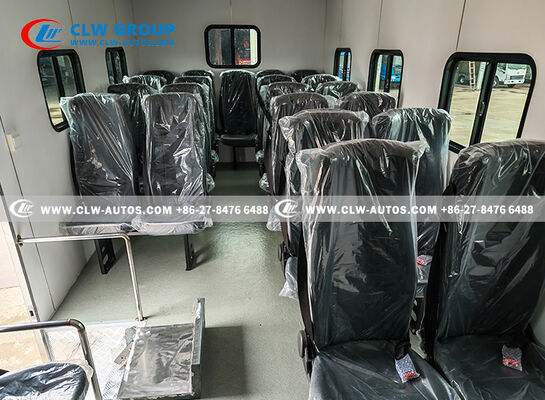

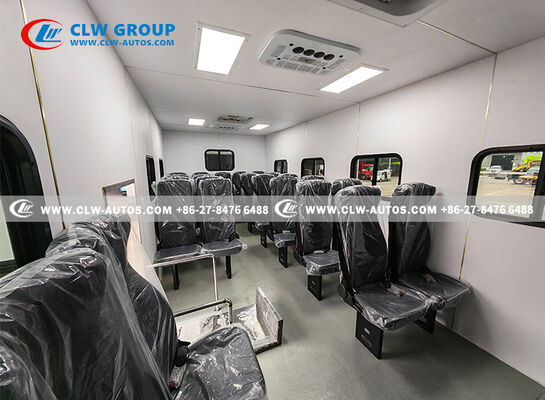

Thick insulated cabin with anti-slip floor keeps the interior dustproof and weatherproof. The passenger area can be fitted with safety belt seats, ceiling lamps and ventilation windows to improve riding comfort.
Dual-circuit air brake + exhaust auxiliary brake effectively guarantees stable braking performance under full load on complex road conditions.
We can adjust the number of seats, internal layout, cabin material and door structure according to customer requirements. We also provide various export-ready configurations.
