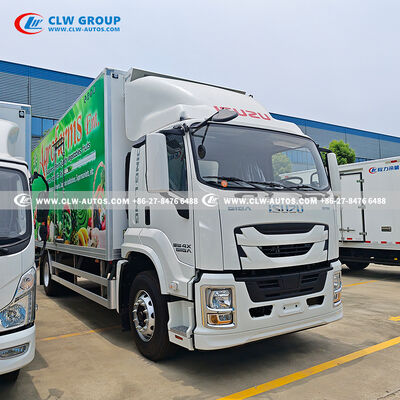

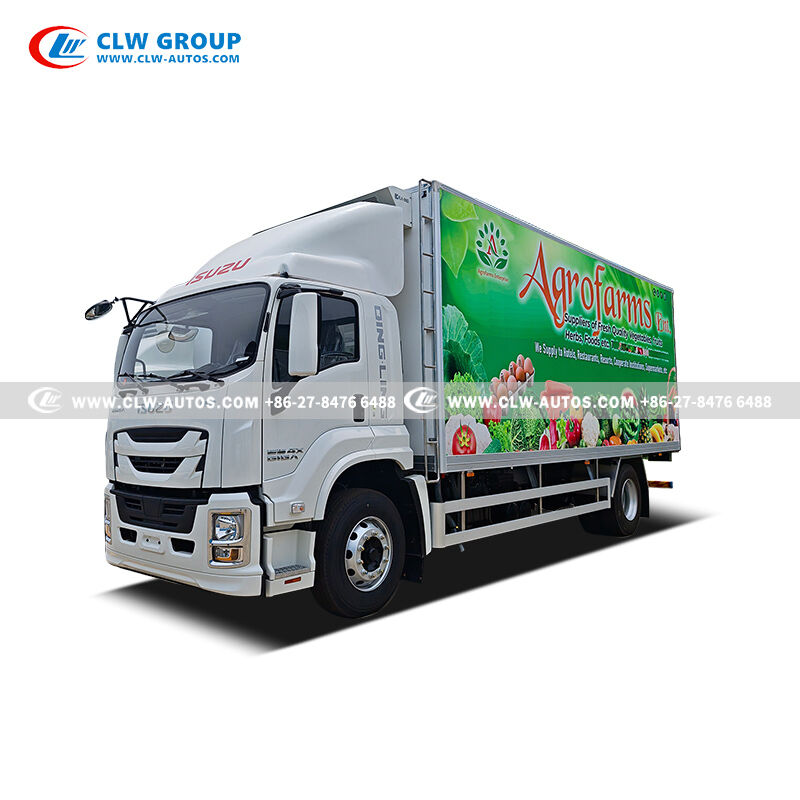

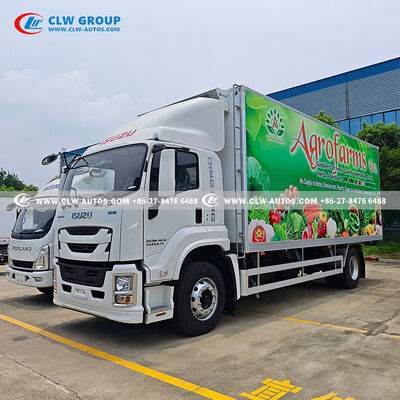

I-SUZU 10Ton Refrigerated Truck with 2000KG Hydraulic Tailgate

Name: I-SUZU 10Ton Refrigerated Truck with 2000KG Hydraulic Tailgate
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: I-SUZU
Price: 135,963.00 USD
Availability: InStock

Large Image : I-SUZU 10Ton Refrigerated Truck with 2000KG Hydraulic Tailgate

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW Group
Model Number:	I-SUZU

Contact Now

Detailed Product Description

Chassis Power:	205HP

I-SUZU 10Ton Refrigerated Truck with 2000KG Hydraulic Tailgate

Our medium-duty refrigerated truck built on reliable I-SUZU chassis is a premium cold chain transportation solution developed for fresh produce, chilled meat, frozen food, dairy and vaccines, fully compliant with national cold transport standard.

Core Matching Configuration

Powerful I-SUZU Chassis

Equipped with 205 high-horsepower engine, stable power output, low fuel consumption and durable mechanical performance. The chassis adopts dual-compressor bracket design, which can simultaneously support the original cab air conditioner and KLH-990D refrigeration unit compressor without disassembling factory parts, avoiding extra modification costs and improving long-term driving stability. It belongs to medium-sized refrigerated truck with cargo box length ranging from 5.1m to 7.7m, available for yellow plate registration, suitable for medium and long-distance cold chain distribution.

KLH-990D Non-Independent Refrigeration Unit

The matching KLH-990D non-independent cooling unit is driven by the vehicle engine compressor, adopting R134A/R404A refrigerant as standard. It realizes precise temperature control inside the cargo compartment, covering multiple temperature zones:

Fresh-keeping zone 2℃~8℃

Fruits, vegetables, beverages, eggs and dairy products

Chilled zone 0℃~2℃

Fresh pork, beef, seafood and poultry

Micro-freeze zone -2℃~-14℃

Cream, cheese and chilled aquatic goods

Deep freeze zone -18℃~-21℃

Ice cream, frozen meat, quick-frozen food

The unit includes complete components: condenser, evaporator, temperature controller, copper cooling pipeline and heat preservation hoses, with automatic temperature adjustment and defrost functions to lock stable internal temperature even under 30℃ ambient temperature.

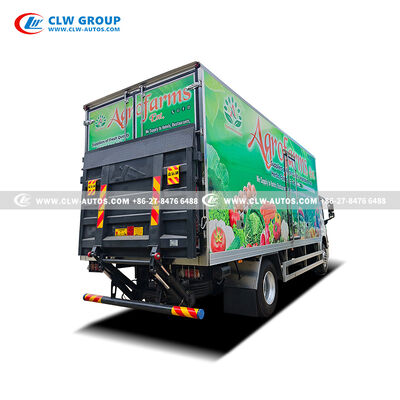

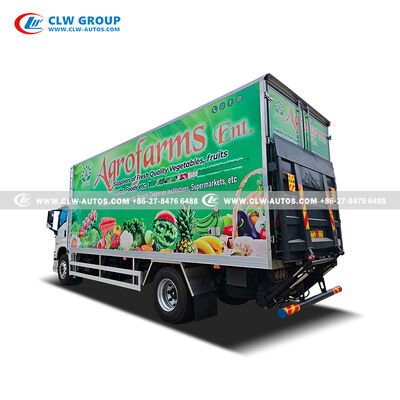

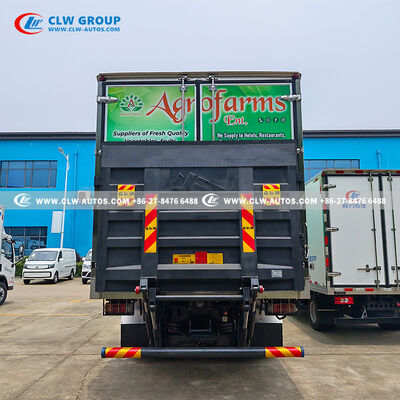

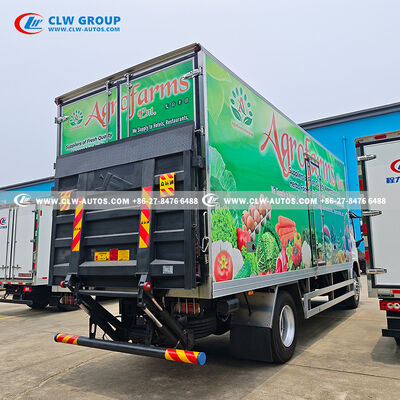

2000KG Heavy-Duty Hydraulic Tailgate

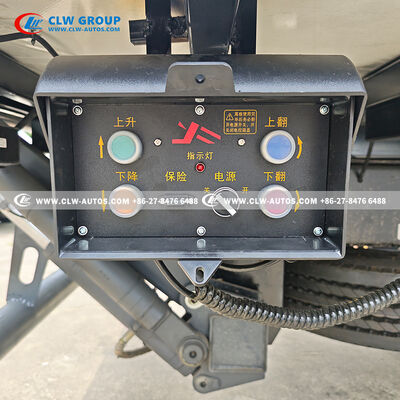

Rear-mounted electric hydraulic tailboard with rated load capacity of 2000KG. It realizes automatic lifting, flipping and leveling without forklift assistance, greatly improving loading & unloading efficiency for heavy cartons of frozen goods and palletized produce. 24V vehicle power supply, anti-rust aluminum alloy panel, stable load-bearing structure to avoid cargo collision damage during handling.

Technical Specifications

Item	Detailed Specification
Vehicle Model	I-SUZU Medium-Duty Refrigerated Truck
Chassis Power	205HP
Chassis Type	Medium-sized truck, dual compressor bracket design, 4×2 rear wheel drive, 24V circuit system
Applicable Cargo Box Length	5.1m - 7.7m (Medium cold truck standard size)
Refrigeration Unit Model	KLH-990D
Refrigeration Unit Type	Non-independent engine-driven refrigeration unit
Standard Refrigerant	R134A (0~-5℃); Optional R404A (-15~-21℃)
Controllable Temperature Range	2℃ ~ 8℃ (Fresh fruit & vegetable); 0℃ ~ 2℃ (Chilled meat); -2℃ ~ -21℃ (Frozen food & ice cream); 2~8℃ (Vaccine & medicine)
Main Unit Components	Condenser, evaporator, digital temperature controller, copper cooling pipeline, thermal insulation hoses
Hydraulic Tailgate Rated Load	2000KG (2 tons)
Tailgate Power Supply	24V electric hydraulic system, automatic lift & flip function
Tailgate Panel Material	Anti-slip aluminum alloy, anti-collision edge protection
Insulated Cargo Box Structure	Integrated one-piece molding, 5-panel seamless bolt assembly
Box Inner & Outer Material	3mm matte FRP fiberglass, anti-corrosion & easy maintenance
Thermal Insulation Core Material	Special XPS extruded polystyrene board for cold chain transport
Box Reinforcement Frame	Wood-wrapped galvanized steel tube, rust-proof & high structural strength
Standard Box Floor	Flat FRP anti-slip floor
Optional Box Upgrades	Stainless steel checkered floor, bottom air ducts, side ventilation rails, full stainless steel inner wall, temperature separation compartment
Optional Auxiliary Equipment	220V external standby power supply, fuel heating device, dual-temperature refrigeration system
Main Application	Fresh fruit & vegetable, chilled meat, seafood, frozen food, ice cream, dairy, vaccine & biological products cold transportation
Compliance Standard	GB 29753-2013 Safety Requirements and Test Methods for Road Transport Refrigerated Vehicles for Food and Biological Products

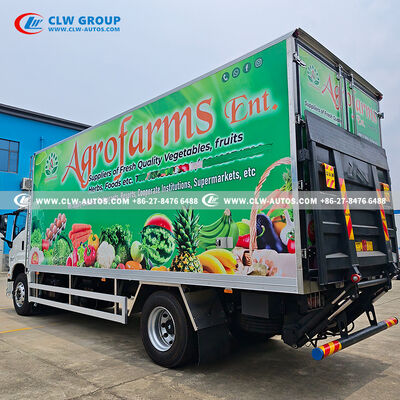

Premium Insulated Cargo Box

The closed heat-insulating carriage is manufactured with integrated one-time molding process:

Inner & outer surface: 3mm matte FRP fiberglass, anti-corrosion, easy to clean
Core insulation layer: High-density XPS extruded board for cold chain, ultra-low thermal conductivity to reduce cold loss

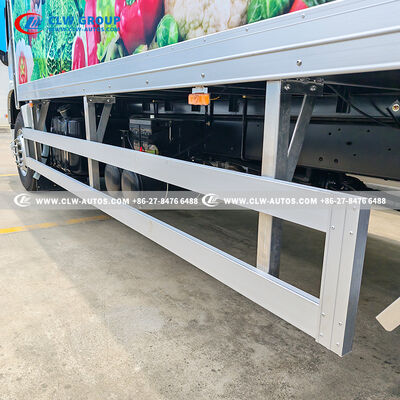

Reinforcement frame: Wood-wrapped galvanized steel tube skeleton, no rust, integral seamless bolt assembly for excellent air tightness

Optional upgrades: Aluminum alloy ventilation rails, stainless steel anti-slip checkered floor, full stainless steel inner wall, bottom air ducts for uniform cold circulation, dual-temperature partition cabin, 220V external standby power device for refrigeration when parking.

Wide Application Scenarios

Fresh agricultural products: Apple, grape, leafy vegetables, melons
Chilled & frozen food: Fresh meat, seafood, ice cream, quick-frozen dumplings
Medical cold chain: Vaccines, injections, biological reagents (2~8℃ constant temperature)
Dairy & beverage: Milk, yogurt, fruit juice requiring constant low temperature delivery

I-SUZU Medium Reefer Truck Ready for Cold Chain Delivery

✅ I-SUZU Medium Chassis, 205HP Strong Power, Dual Compressor Bracket

✅ KLH-990D Non-Independent Refrigeration Unit, Multi-Temperature Zone Control

✅ 2000KG Hydraulic Tail Lift, Easy Loading & Unloading of Pallet Goods

✅ Integrated FRP Insulated Box with XPS High-Density Insulation Board

✅ Precise Temp Range: 2℃~8℃ / 0℃~-21℃ for Fruit, Meat, Seafood, Medicine

Perfect for supermarket distribution, farm wholesale, pharmaceutical logistics, frozen food factories!

Custom box size, stainless steel floor, air duct and standby power available on request.
