FAW JK6 15m³ Sealed Compaction Bin 260HP Engine Dual Control System Garbage Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

FAW JK6 15m³ Sealed Compaction Bin 260HP Engine Dual Control System Garbage Compactor Truck

FAW JK6 15m³ Sealed Compaction Bin 260HP Engine Dual Control System Garbage Compactor Truck

Large Image :  FAW JK6 15m³ Sealed Compaction Bin 260HP Engine Dual Control System Garbage Compactor Truck

Product Details:

Brand Name: CLW Group
Model Number: FAW JK6
Detailed Product Description
Drive Type: 4×2
Highlight:

15m³ Sealed Compaction Bin Garbage Compactor Truck

,

260HP Engine Waste Collection Vehicle

,

Dual Control System Sanitation Truck

FAW JK6 15m³ Compactor Garbage Truck
Product Overview

FAW JK6 4x2 15m³ Rear Load Compression Garbage Truck 260HP Sanitation Waste Collection Vehicle

The FAW JK6 rear loading compactor garbage truck is designed for municipal solid waste collection and transportation. Equipped with a 15 cubic meter sealed compaction bin and 260 horsepower engine, this waste truck features high compression ratio to maximize loading capacity and reduce transport frequency.

The vehicle features a fully sealed body structure to prevent sewage leakage and secondary environmental pollution. It supports standard waste container lifting and automatic feeding operations.

A dual control system is configured with both cab internal control panel and rear external operation panel, all marked with Russian for Central Asian customers. The complete hydraulic system includes pressure monitoring gauges to ensure stable working performance. All lubrication diagrams and safety warning plates are printed in Russian to meet local operation requirements. The reinforced body connection structure improves durability under long-term heavy-load operation.

This sanitation garbage truck is ideal for urban domestic waste transfer, community waste collection, and municipal sanitation projects, widely applied in Kazakhstan, Kyrgyzstan and other Central Asian markets.

Technical Specifications
Chassis Specifications
Chassis Brand FAW (First Automobile Works)
Chassis Model JK6
Drive Type 4*2
Engine Power 260 HP
Fuel Type Diesel
Steering Left Hand Drive (LHD)
Cab Row-and-a-half cab
Superstructure / Garbage Body
Body Volume 15 m³
Rated Payload Approx. 10 tons
Loading Type Rear loading
Compaction Mode Hydraulic compression
Bin Lifter Standard waste bin lifting mechanism
Control Mode Dual control -- in-cab panel + rear external push-button panel
Control Panel Language Russian
Hydraulic System Full hydraulic drive with pressure monitoring gauge
Body Material High-strength carbon steel
Sealing Structure Fully sealed, anti-sewage leakage design
Hydraulic Outriggers Equipped (stabilization during loading)
Safety Marking Yellow reflective warning strips
Lubrication Diagram Russian-language lubrication schematic sticker
Application Municipal domestic waste collection & transportation

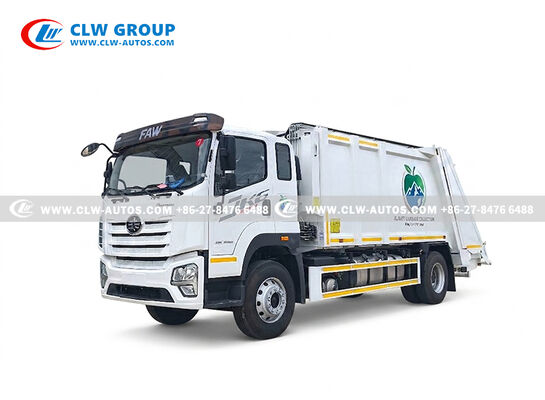

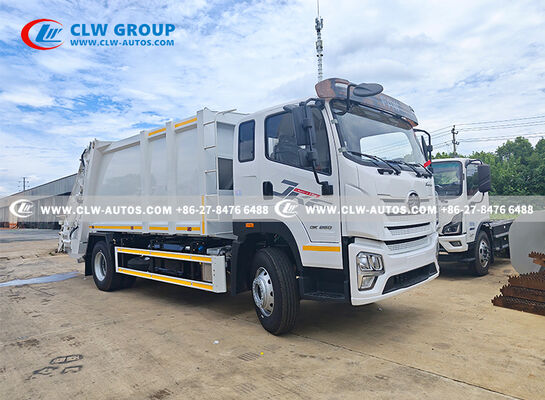

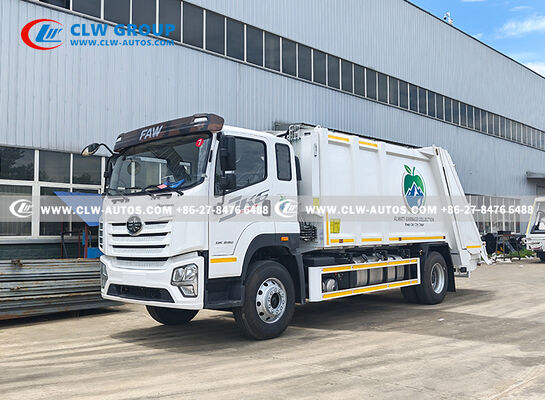

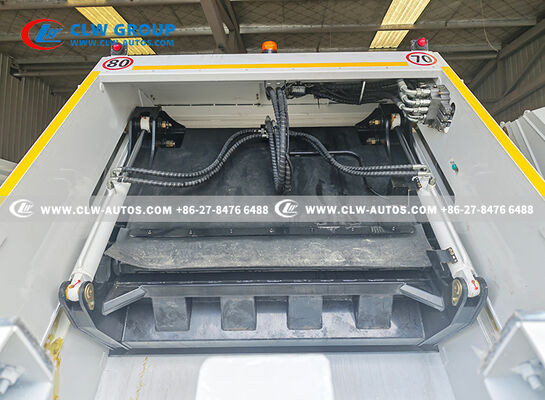

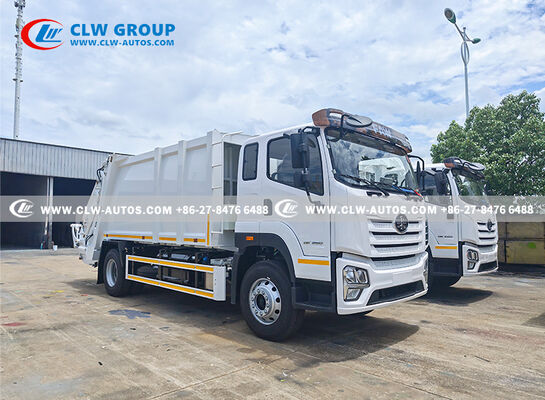

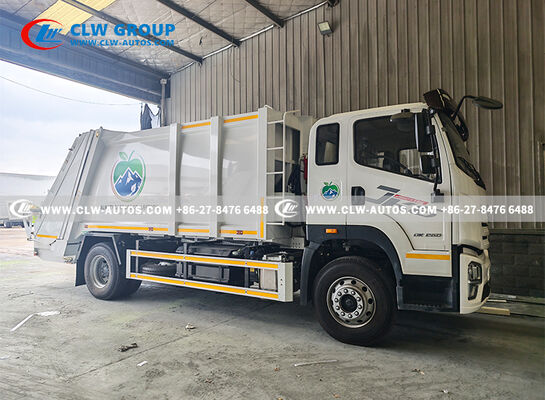

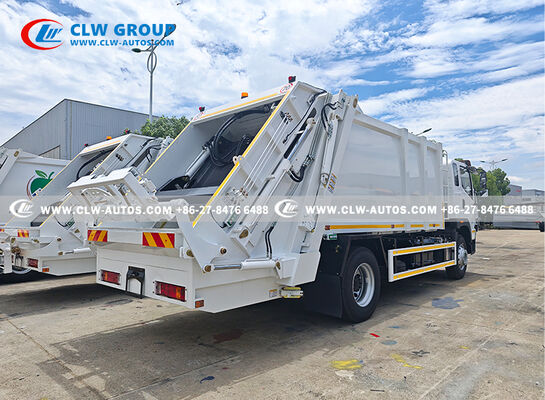

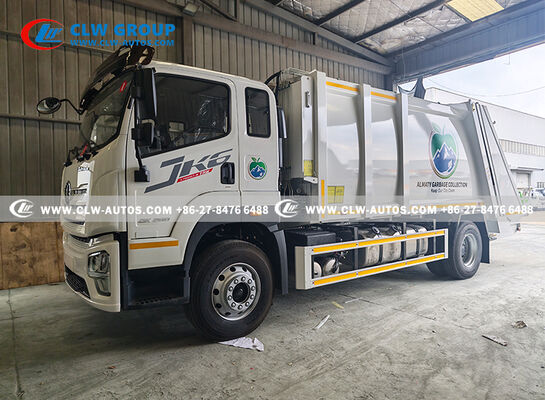

Product Gallery
Key Advantages
FAW original JK6 4*2 chassis, mature after-sales & spare parts supply
15m³ sealed compactor bin, high compaction efficiency
Dual operation panels (in-cab + rear external buttons)
Russian-language control labels & maintenance stickers
Anti-leakage design for wastewater, environmental friendly
Heavy-duty lifting mechanism for standard waste bins
Suitable for Almaty and other Central Asian road conditions
Operation & Maintenance

All warning labels and lubrication schematic stickers printed in Russian, customized for Kazakhstan market (Almaty project).

  • Clear lubrication point layout with specified maintenance cycles for all articulated joints
  • Standard maintenance reminder: hydraulic oil replacement cycle
  • Regular bolt inspection required
  • Overload strictly prohibited
