HOWO RHD 3 Ton Refrigerated Truck with Carrier Supra 550 Independent Cooling Unit for Cold Chain Delivery

Name: HOWO RHD 3 Ton Refrigerated Truck with Carrier Supra 550 Independent Cooling Unit for Cold Chain Delivery
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: HOWO
Price: 135,963.00 USD
Availability: InStock

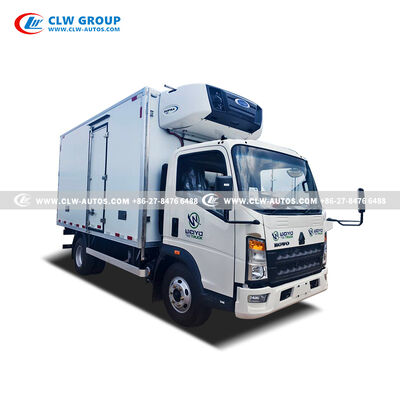

Large Image : HOWO RHD 3 Ton Refrigerated Truck with Carrier Supra 550 Independent Cooling Unit for Cold Chain Delivery

Product Details:

Brand Name:	CLW Group
Model Number:	HOWO

Contact Now

Detailed Product Description

Rated Loading Capacity:	3 Ton	Driving Type:	4×2 Right Hand Drive (RHD, Export Version)
Wheelbase:	3360 Mm	Engine Power:	116 HP
Box Outer Dimension:	4020mm × 2100mm × 2100mm	Inner Effective Volume:	Around 14.5 M³
Box Insulation Thickness:	80mm Thick XPS Foam Insulation Layer	Temperature Control Range:	-20℃ ~ +30℃
Cooling Capacity:	5455W At Box Temp 0℃; 3165W At Box Temp -20℃	Refrigerant Type:	R404A
Highlight:	3 Ton Rated Loading Capacity Refrigerated Truck , Carrier Supra 550 Independent Cooling Unit Freezer Truck , Right Hand Drive (RHD) Cold Chain Delivery Truck

HOWO RHD 3 Ton Insulated Refrigerated Truck with Carrier Supra 550

HOWO right-hand drive refrigerated light truck is specially designed for overseas cold chain delivery. Equipped with genuine Carrier fully independent cooling unit, it can maintain continuous cooling even when the vehicle engine is turned off. An external power socket is pre-installed to operate the unit using mains power, reducing fuel costs. The fully sealed insulated box features rear double doors and an extra side door, complemented by transparent cold curtains to maintain internal temperature. All internal fittings support personalized customization to meet various cold transport requirements for fruits, seafood, frozen meat, and vaccines.

Full Vehicle Specifications

Category	Parameter Item	Detailed Specification
Complete Vehicle Basic Info	Product Name	HOWO RHD 3 Ton Light Refrigerated Truck with Carrier Supra 550 Independent Cooling Unit
	Chassis Model	ZZ1047D3414D1R45
	Rated Loading Capacity	3 Ton
	Driving Type	4×2 Right Hand Drive (RHD, Export Version)
Chassis Configuration	Cab	1880 Half Row Dream Cab with sleeper, full interior cover, fabric seats, no factory air conditioner
	Wheelbase	3360 mm
	Engine	YN4102QBZL Diesel Engine, 116 HP
	Transmission	WLY6TS40 6-speed manual gearbox, without PTO
	Axle Load	Front axle: 2.0 Ton drum brake; Rear axle: 3.5 Ton drum brake, final ratio 5.571
	Suspension	Front 11-leaf springs, rear 9+7 multi-leaf springs (11/9+7H)
	Tires	7.00R16 14PR vacuum tires
	Fuel Tank	80L aluminum alloy fuel tank
	Steering & Brake	Hydraulic power steering, clutch booster; spring brake, air dryer, steel air reservoir, no ABS
Refrigerated Box Superstructure	Outer Dimension (L×W×H)	4020mm × 2100mm × 2100mm
	Inner Effective Volume	Around 14.5 m³
	Box Panel	FRP fiberglass inside & outside, 80mm thick XPS foam insulation layer
	Floor	Anti-slip patterned aluminum plate

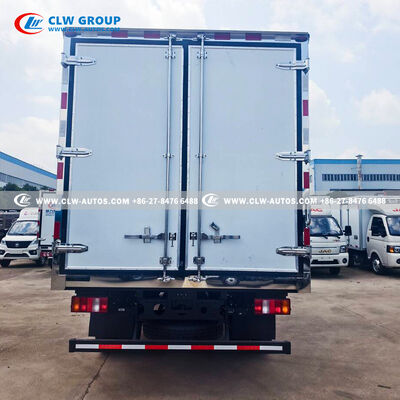

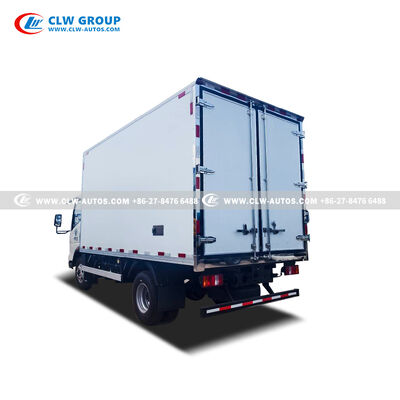

	Door Design	Rear double swing doors + one side service door
	Heat Insulation Accessory	Multi-layer rubber sealing strips + transparent PVC cold-proof curtains on all doors to prevent cold leakage
	Customizable Fittings	Cargo tracks, hanging hooks, stainless steel lining and other accessories as customer requests
Carrier Independent Refrigeration Unit	Unit Model	Carrier Supra 550 full independent diesel cooling unit
	Temperature Control Range	-20℃ ~ +30℃
	Power Mode	Dual power: built-in diesel engine + external mains power socket (save diesel fuel when plug in electricity)
	Core Merit	Stable continuous cooling even after the truck engine turns off
	Refrigerant	R404A
	Cooling Capacity (Ambient 30℃)	5455W at box temp 0℃; 3165W at box temp -20℃

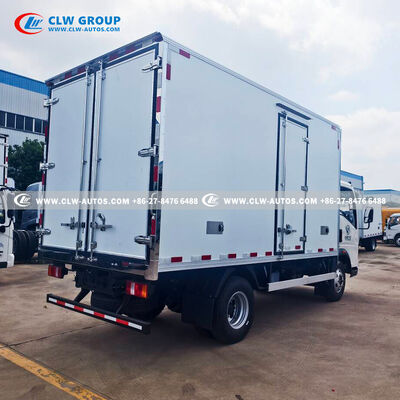

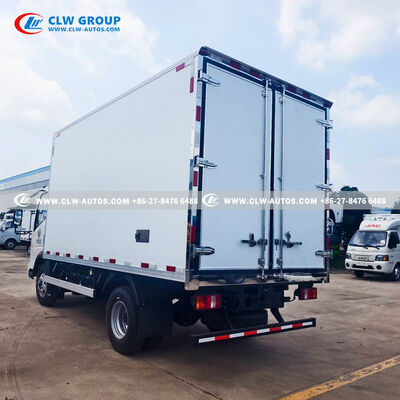

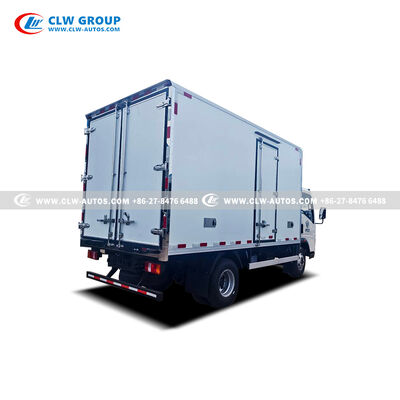

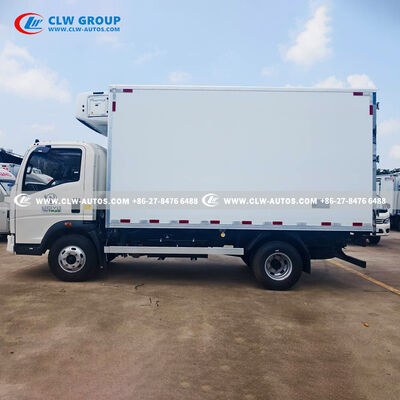

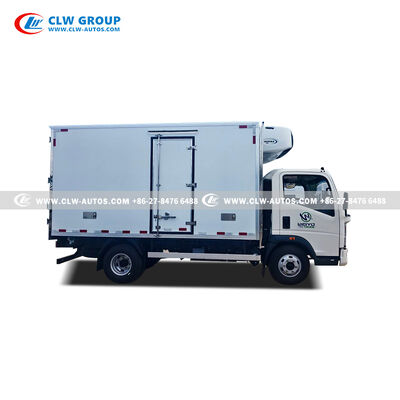

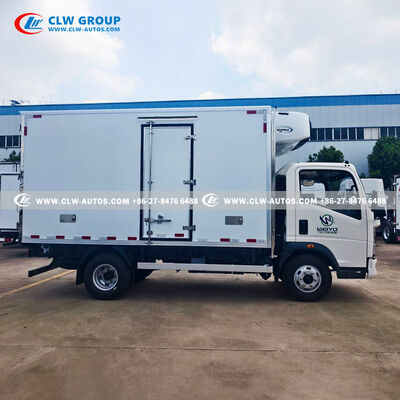

Product Gallery

Carrier Supra 550 Independent Refrigeration Unit

Basic Specifications

Model: Carrier Supra 550 Fully Independent Diesel Refrigeration Unit

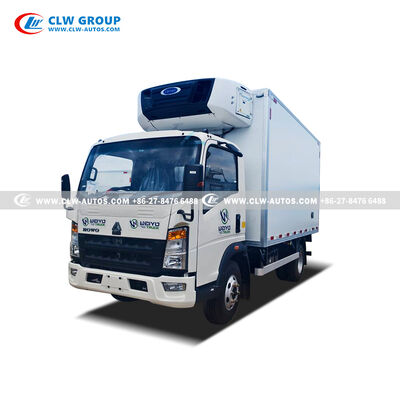

Installation: Front Top Mounted on Cab Roof
Refrigerant: R404A
Net Weight: 391kg (Standard S Version)
Air Circulation Volume: 2150 m³/h
Temperature Control Range: -20℃ ~ +30℃

Core Advantages

Built-in 2-cylinder diesel engine, continuous cooling when truck engine shuts down, eliminating idle loss of chassis power
Supports 400V three-phase mains standby power supply for warehouse parking long-time refrigeration
Microcomputer intelligent control panel with auto defrost function, real-time temperature display & data recording
Powerful cooling surplus perfectly matches 14.5m³ cargo box, ensuring fast temperature recovery after frequent door opening
Global Carrier after-sales service network with abundant spare parts supply for overseas markets

Core Product Advantages

Export RHD chassis designed for international left-side traffic regulations, featuring mature 116HP Yunnei engine with low fuel consumption and strong torque for mountain and challenging road conditions
Heavy-duty drum brake axles and reinforced leaf spring suspension provide stable carrying capacity up to 3 tons rated load
Integrated one-shot forming refrigerated box with ultra-low thermal conductivity insulation material ensures long-term stable temperature retention
Original imported Carrier independent cold unit delivers top-tier cold chain refrigeration solution for frozen and pharmaceutical transport
Manufactured by Hubei Chengli Special Automobile Co., Ltd, certified with ISO9001 Quality, ISO14001 Environmental, and OHSAS18001 Safety Management Systems for reliable production quality

Main Application Scenarios

Frozen food: ice cream, frozen meat, seafood (-18℃ ~ -20℃)
Fresh produce: fruits, vegetables, eggs, dairy (2℃ ~ 8℃)
Medical cold chain: vaccines, biological reagents (2℃ ~ 8℃ constant temperature)
Chilled meat & aquatic products: (0℃ ~ 2℃ micro-freeze transport)
