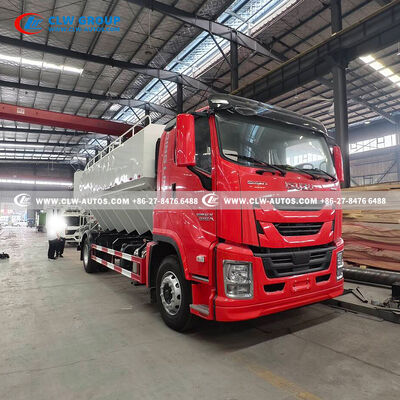

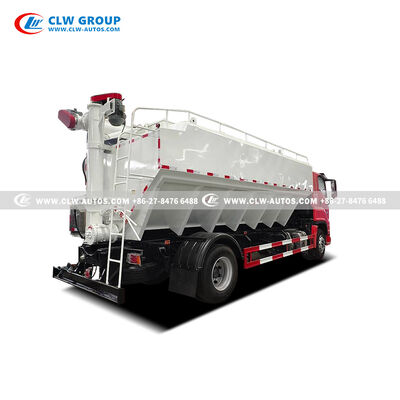

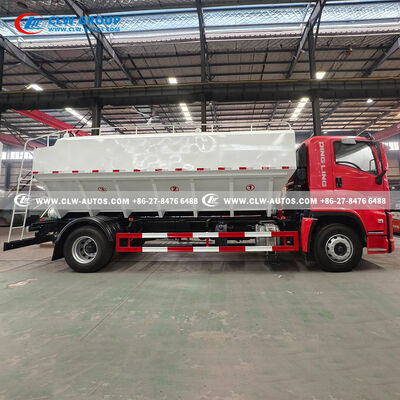

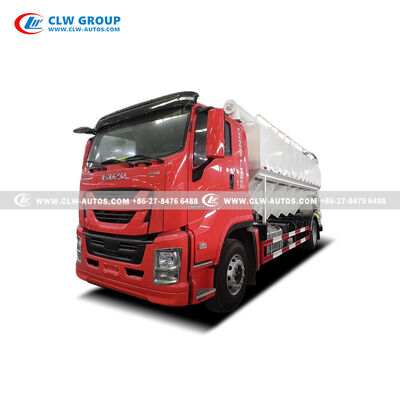

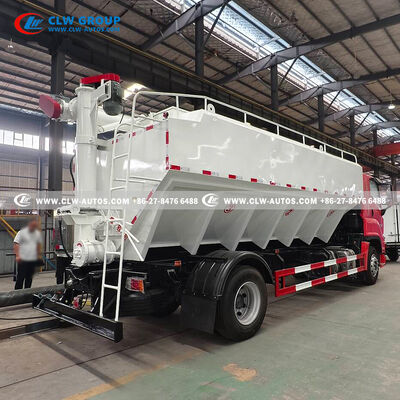

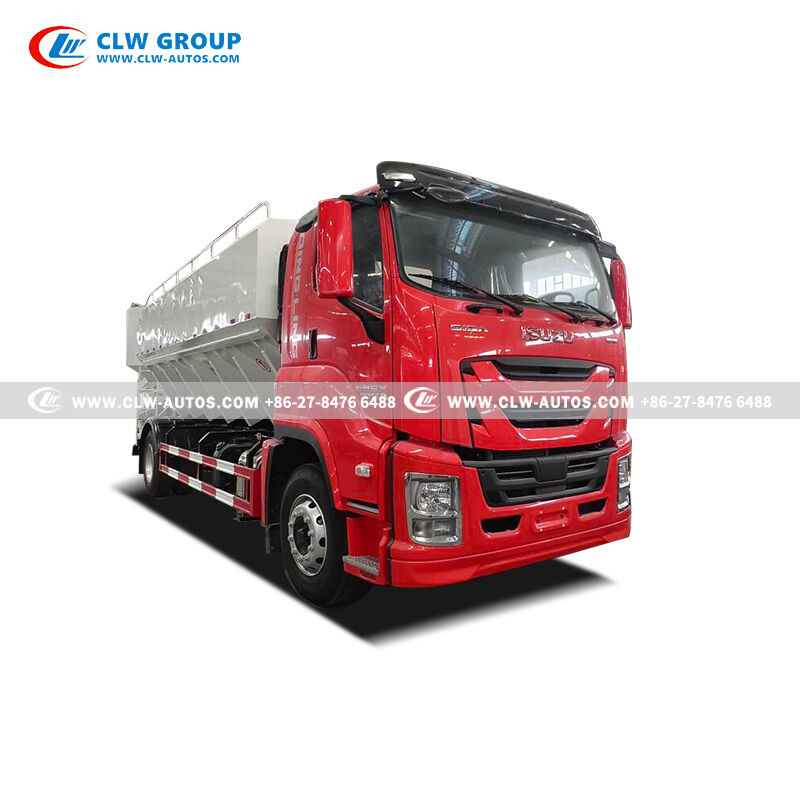

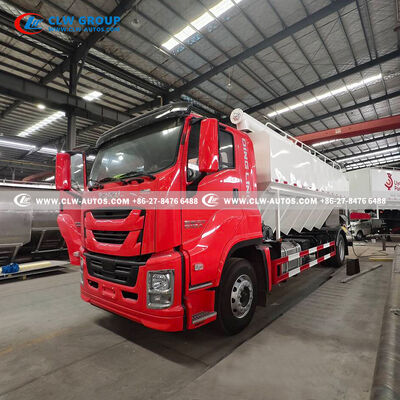

ISUZU 20m³ Bulk Feed Transport Truck For Chicken Feed Delivery

Name: ISUZU 20m³ Bulk Feed Transport Truck For Chicken Feed Delivery
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: ISUZU
Price: 135,963.00 USD
Availability: InStock

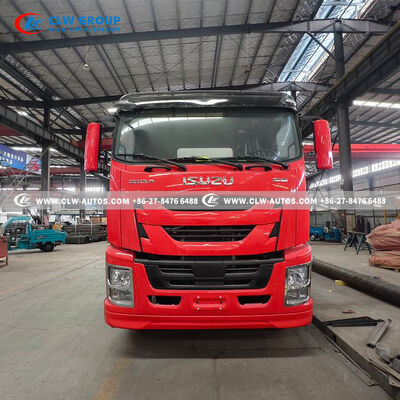

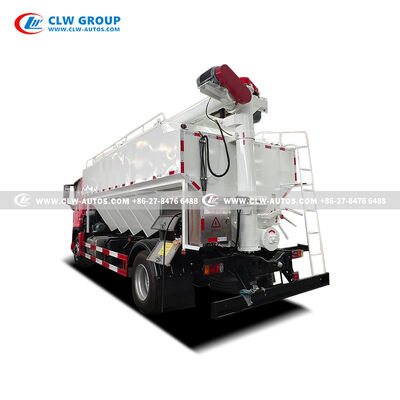

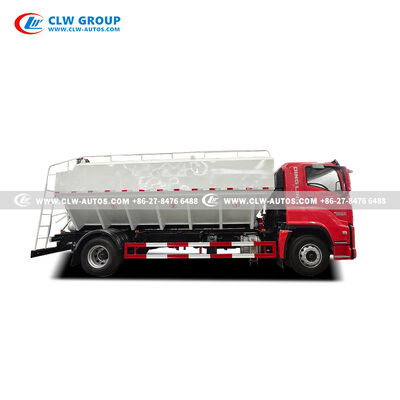

Large Image : ISUZU 20m³ Bulk Feed Transport Truck For Chicken Feed Delivery

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW Group
Model Number:	ISUZU

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	30DAYS
Payment Terms:	T/T

Contact Now

Detailed Product Description

Tank Volume:

20 Cubic Meters (20m³)

Highlight:

20m³ Capacity Bulk Feed Transport Truck

Three-Compartment Design Feed Delivery Vehicle

Hydraulic Screw Conveyor Livestock Feed Truck

ISUZU 20m³ Bulk Feed Transport Truck

Product Overview

ISUZU 20-cubic-meter bulk feed truck is a professional-grade livestock & poultry feed delivery vehicle, perfectly designed for large-scale farms, feed mills, breeding cooperatives and feed distributors. Equipped with reliable ISUZU chassis and heavy-duty three-compartment bulk feed tank superstructure, this truck realizes sealed, dust-free, efficient bulk feed transportation and automatic discharging. Separate control levers for each bin support transporting multiple kinds of feed in one single trip, greatly cutting your logistics cost and improving feed delivery efficiency.

Item	Parameter
Chassis-Basic Info
Brand	ISUZU
Cab	Extended short-sleeper cab, 3-seats capacity, Left-Hand Drive, Factory-fitted A/C and MP3 radio, Ergonomic dashboard & central gear shifter, Perfect matching with FAST 8-speed heavy-duty gearbox
Gearbox	FAST 8-speed heavy-duty transmission, 8 forwards + 1 reverse
Engine	Customized ISUZU diesel engine (can select Euro 2 / Euro 3 / Euro 5 emission standard)
Gross Vehicle Weight (GVW)	Customized according to chassis model
Superstructure (Feed Tank)
Tank Volume	20 Cubic Meters (20m³)
Compartments	3 independent storage bins
Control System	Each bin fitted with an independent control lever, separate opening & discharging control
Tank Material	High-quality carbon steel / optional stainless steel, anti-corrosion, wear-resistant
Discharging Mode	Hydraulic screw conveyor automatic unloading
Conveyor Length	Standard 6-8 meters, adjustable discharge height
Sealing Performance	Fully sealed tank body, dust-proof, rain-proof, prevent feed contamination & waste
Optional Upgrade	Remote discharging control, hydraulic cover, stainless steel tank liner, anti-clogging auger

Superstructure & Loading-Unloading Features

1. Three-Bin Independent Storage Design

The 20m³ feed tank is divided into 3 separate sealed compartments. You can load different formulas of animal feed simultaneously without cross-mixing. Each compartment is controlled by an individual operating lever, allowing you to discharge feed from any single bin selectively. It brings high flexibility for multi-variety feed distribution.

2. Fully-Sealed Transportation

Whole tank adopts closed-type structure. Feed is isolated from outside dust, sunlight and rainwater during transit, effectively avoiding feed spoilage, nutrient loss and material waste, which is critical to guarantee feed quality.

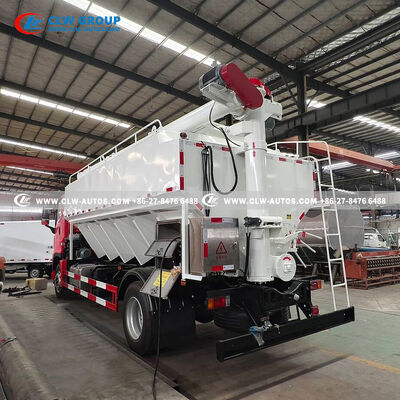

3. Hydraulic Screw Conveyor Discharging System

Powered by hydraulic system, the spiral auger conveyor delivers feed fast and stably. No manual shoveling work is required. The long discharge conveyor can reach the top of farm feed silos, directly pumping feed into storage bins. Short unloading time saves plenty of labor cost.

4. Durable & Low-Maintenance Tank Body

High-strength steel tank wall is treated with anti-corrosion coating, resisting abrasion from granular feed. The auger parts are made of thickened wear-proof material for long service life. Simple hydraulic control structure makes daily maintenance easy and cheap.

5. Wide Application Scope

Suitable for transporting corn, soybean meal, finished pellet feed, powder feed for pig farms, chicken farms, cattle & sheep breeding bases, feed processing factories, feed wholesale dealers and agricultural logistics companies.

Main Advantages

Famous ISUZU chassis with stable performance, low fuel consumption and long service life, easy spare-parts supply in overseas markets
3-bin separate control realizes multi-feed one-trip transport, improve transport efficiency
Automatic hydraulic discharging, reduce labor workload
Dust-free sealed transport, zero feed waste
Customizable tank material, discharge length, emission standard and cabin configuration
